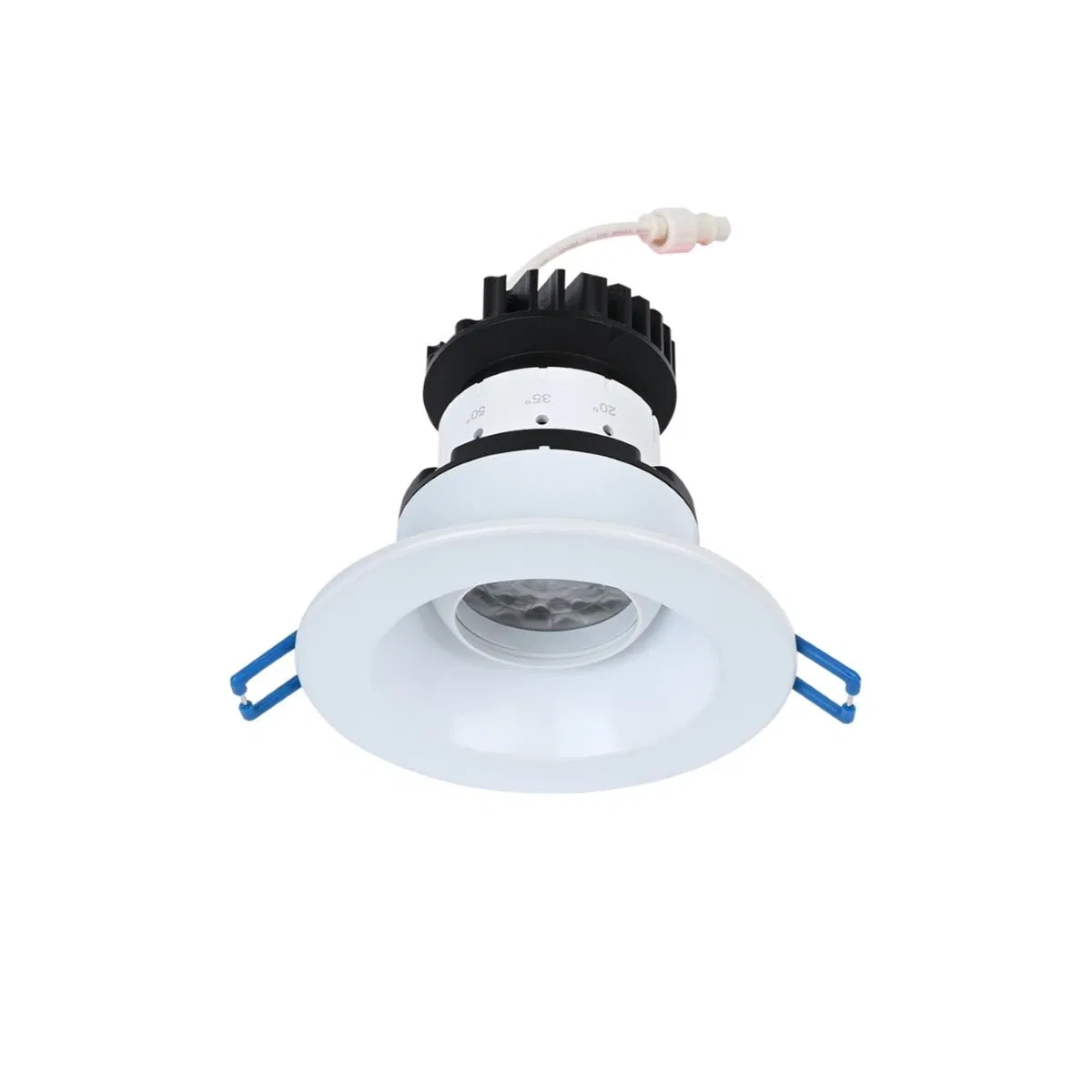

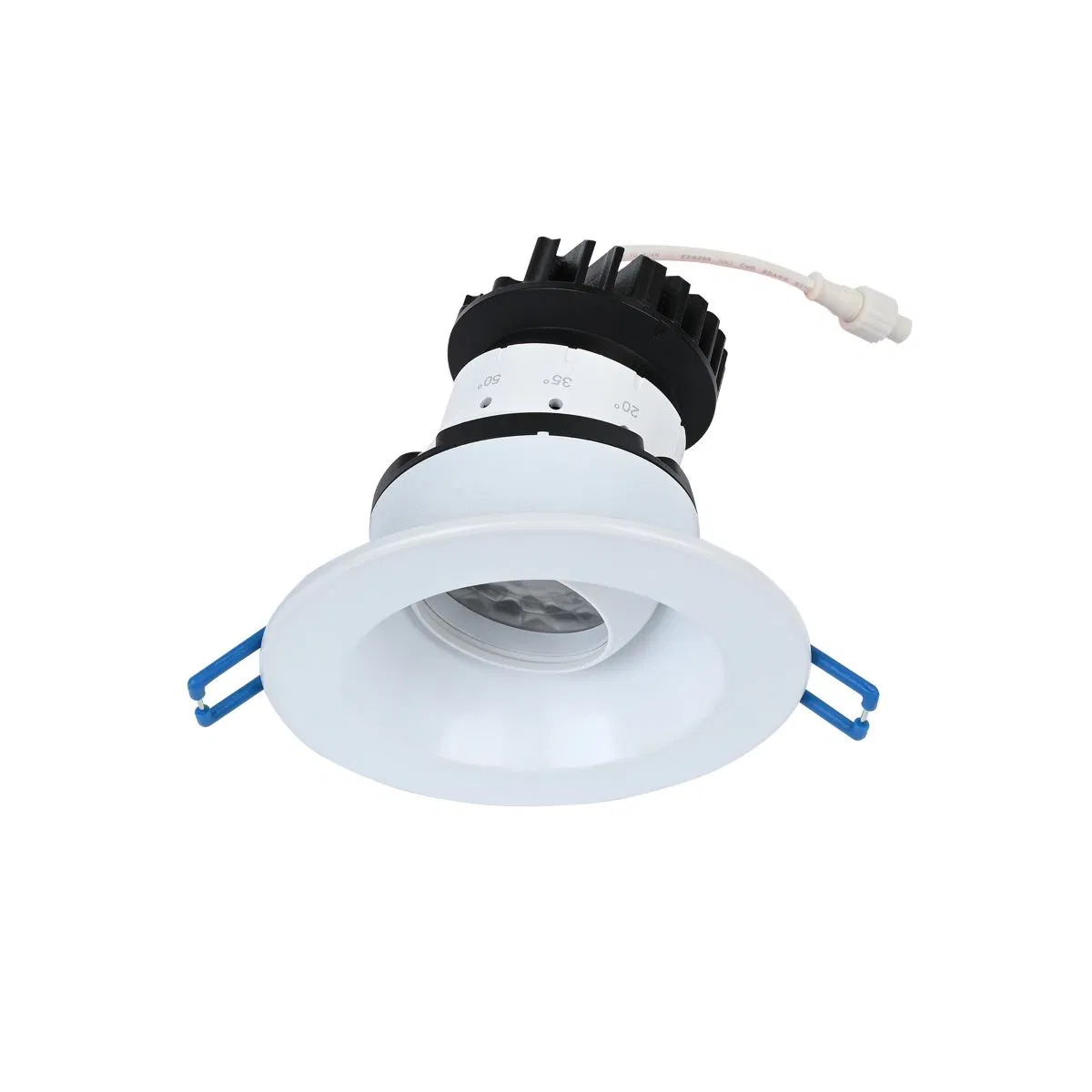

Diva Lights
1 / 5
| Model NO. | KG3R-ABA |
| Power | 5-12W Adjustable |
| Color Temperature | 5CCT Adjustable (2700K-5000K) |
| Lamp Body Material | Aluminum |
| Installation | Recessed |
| IP Rating | IP54 |
| Warranty | 5 Years |
| Certification | CE, EMC, Energy Star, ETL, FCC, LVD, RoHS |
| Finish Color | White/Black/Bronze |

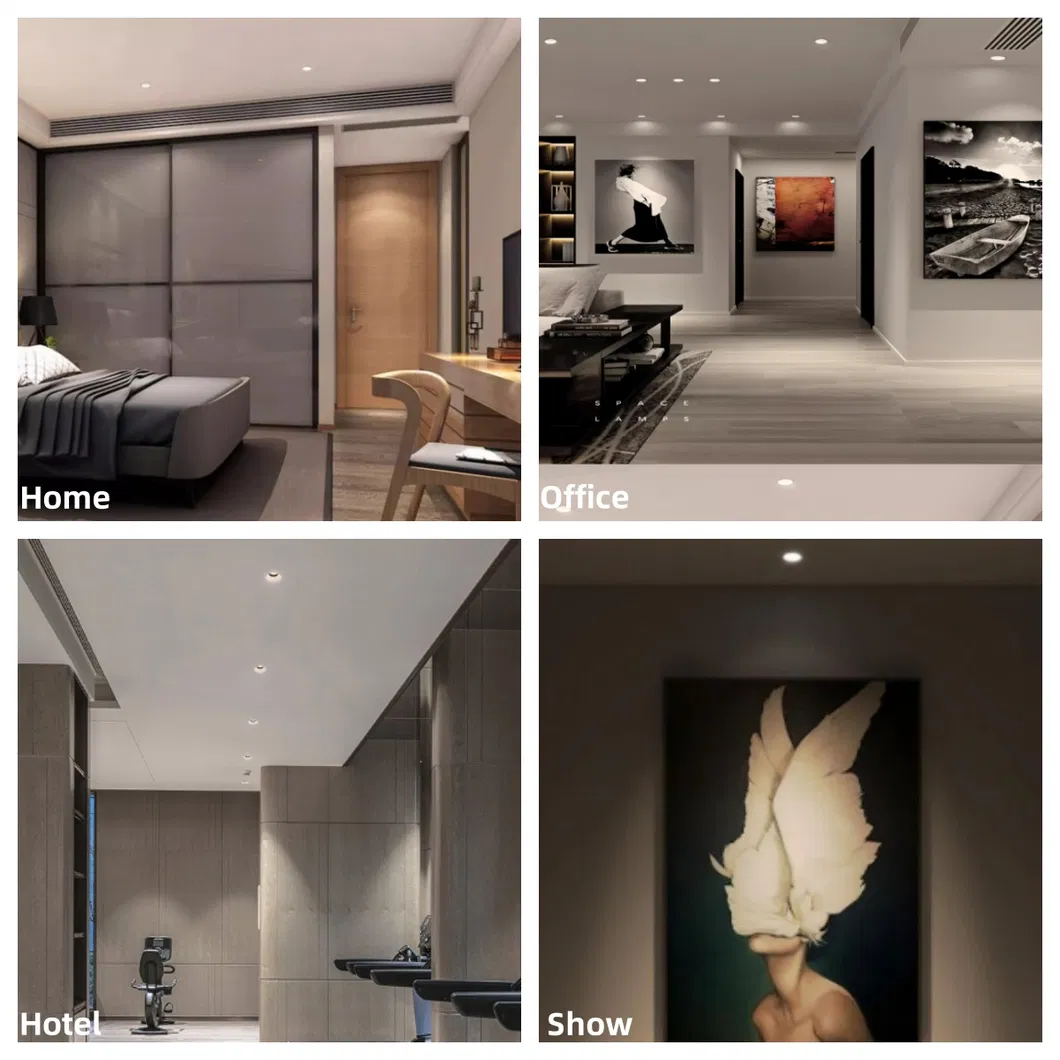

| Application | Home Furnishing, Hotel, Commercial |

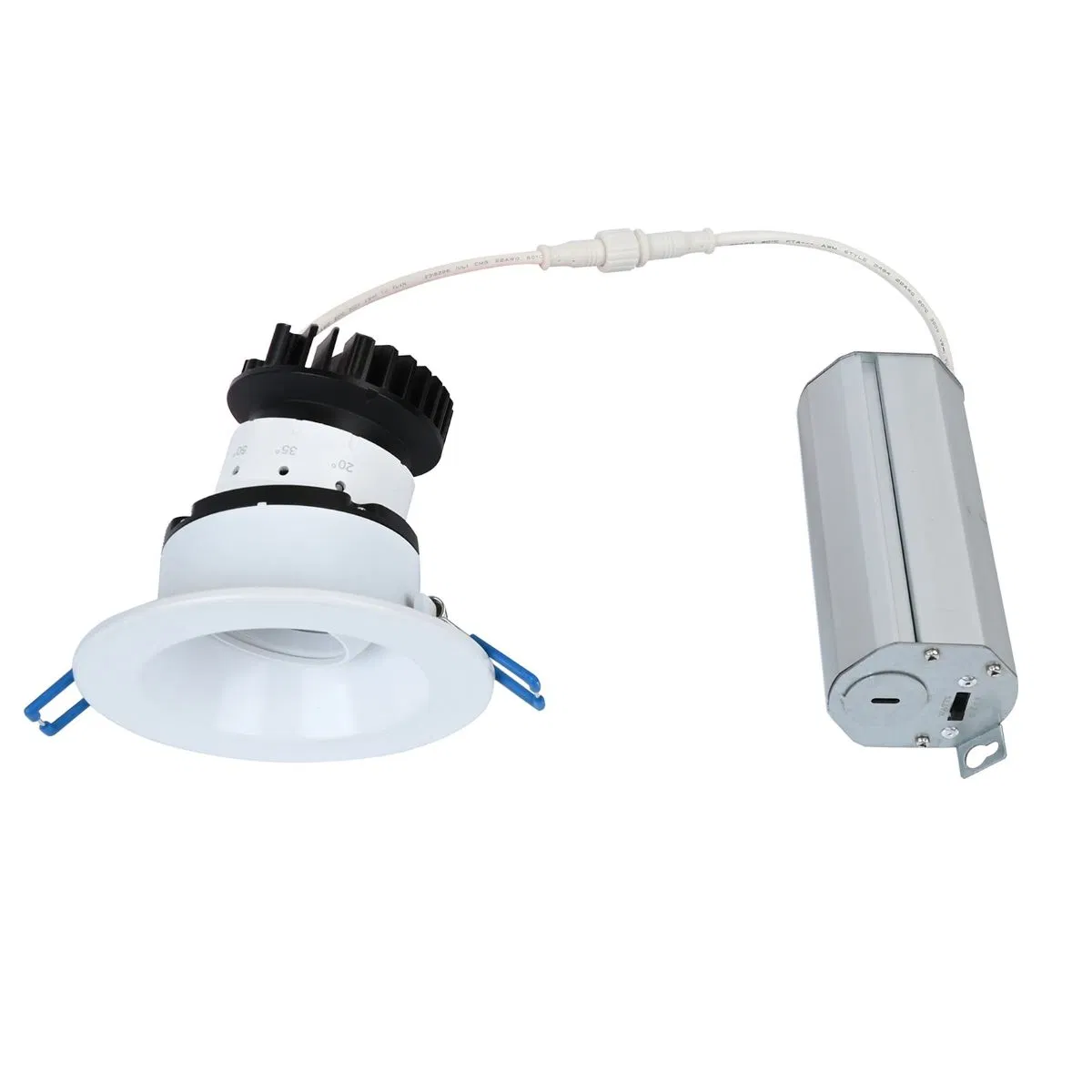

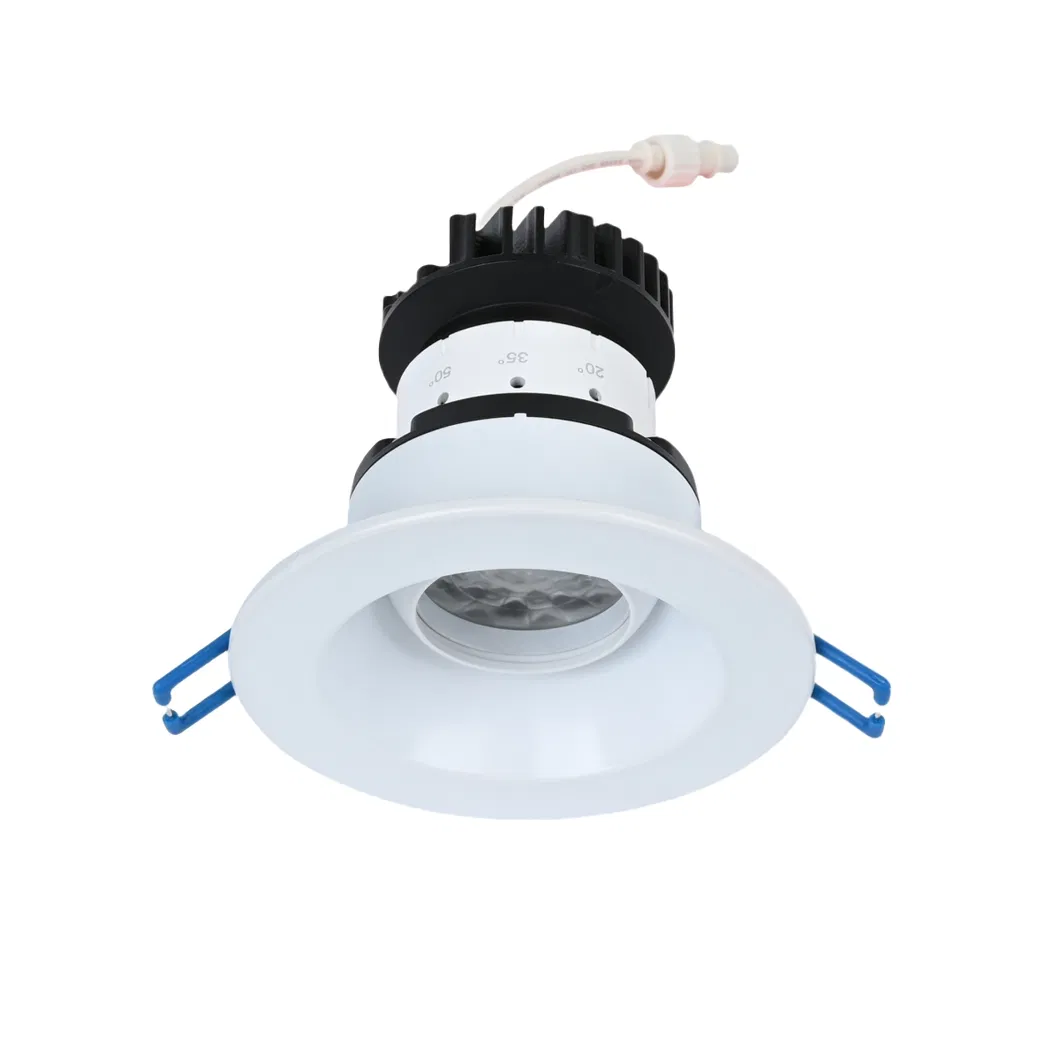

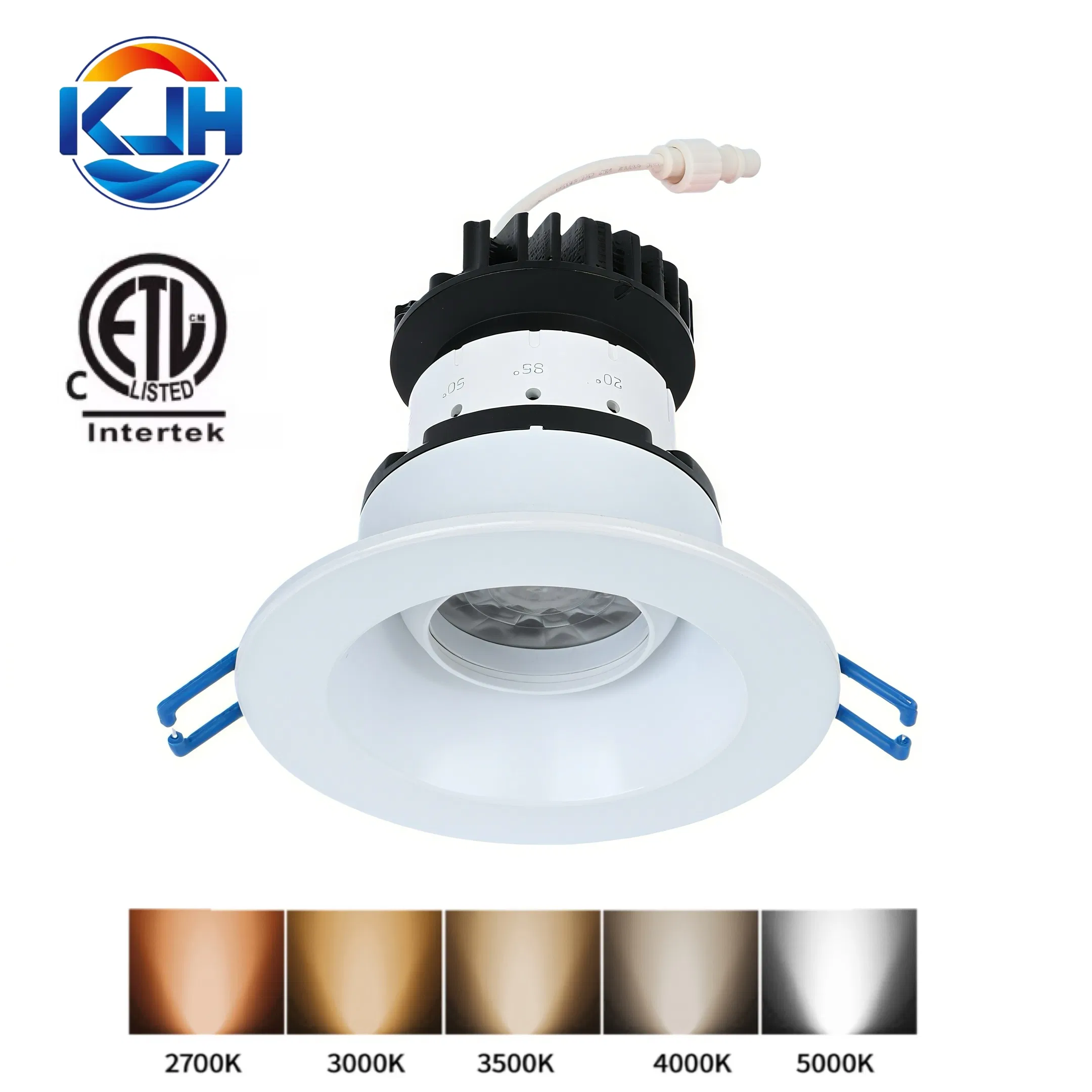

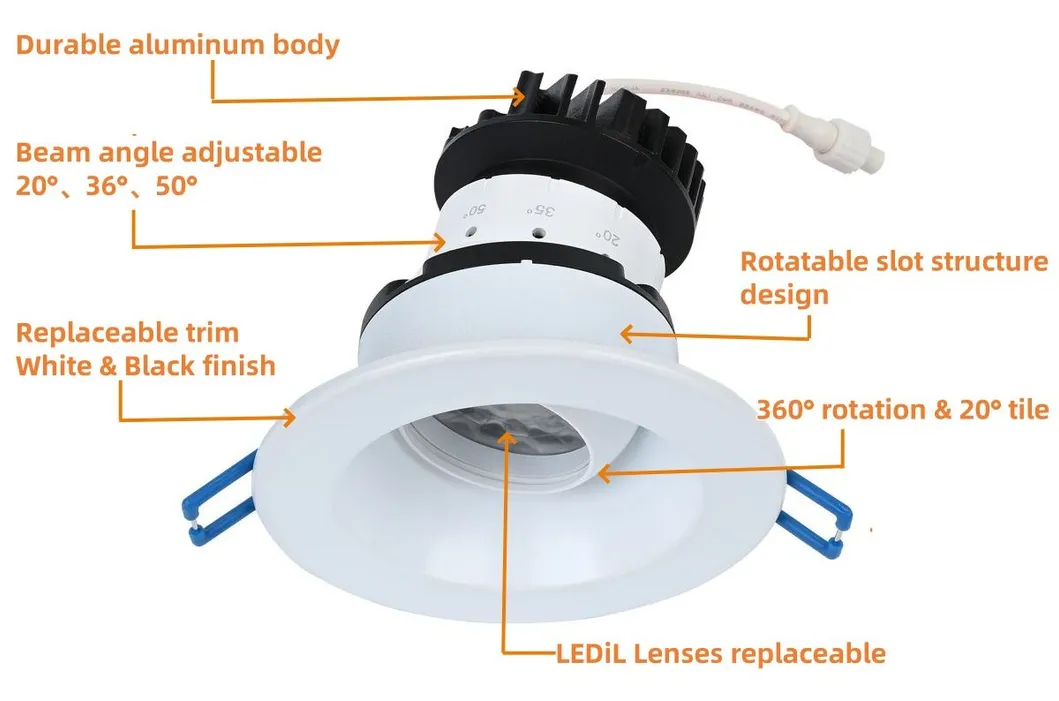

Innovative Adjustable Beam Angle
Our patent-pending adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angles adjustments between 20° and 50°.
Featuring functions of 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.
| Parameter Details | |
|---|---|
| Model | KG3R-ABA |
| Power | 5W / 7W / 9W / 12W selectable |
| Input Voltage | 120V-277V AC, 50/60 Hz |
| CCT | 5CCT (2700K/3000K/3500K/4000K/5000K) |
| Beam Angle | Adjustable 20° / 36° / 60° |
| CRI / Power Factor | >90+ / >0.9 |
| Dimension | φ110 * H100mm |
| Cut Hole | 90mm |
| Air Tight | Yes |
5CCT selectable system

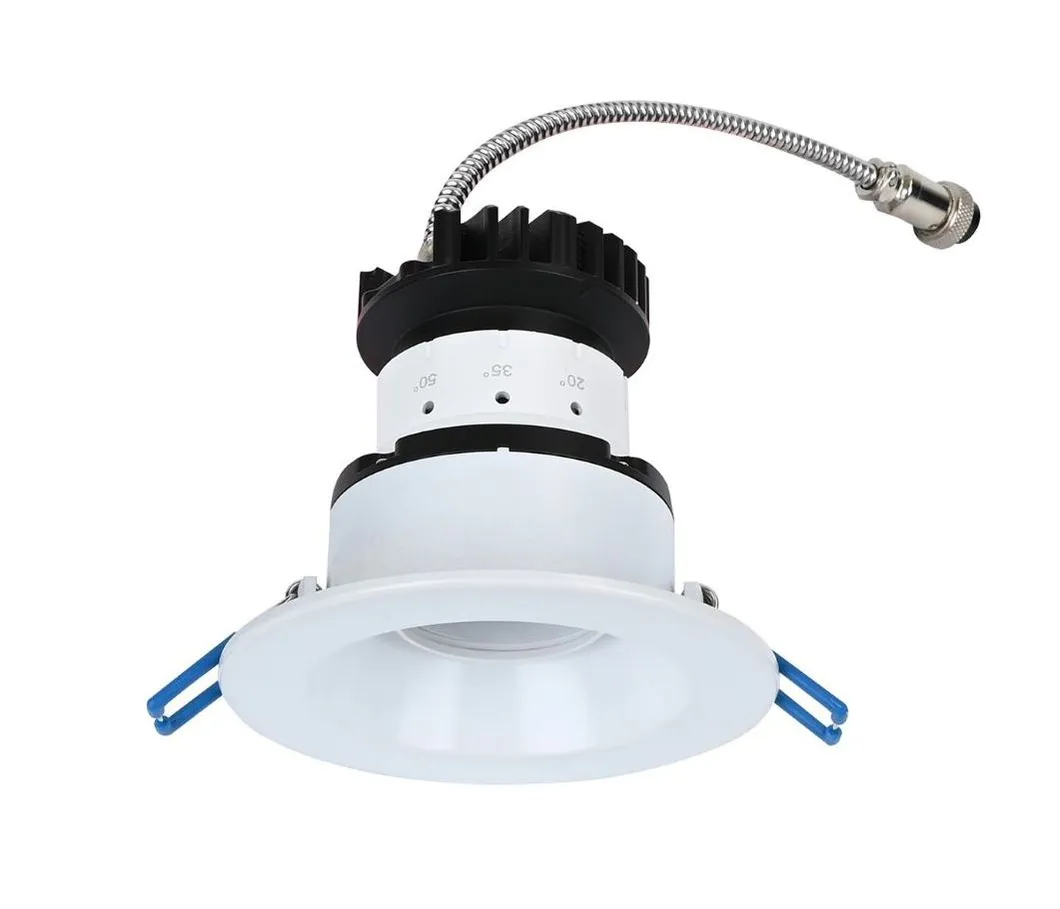

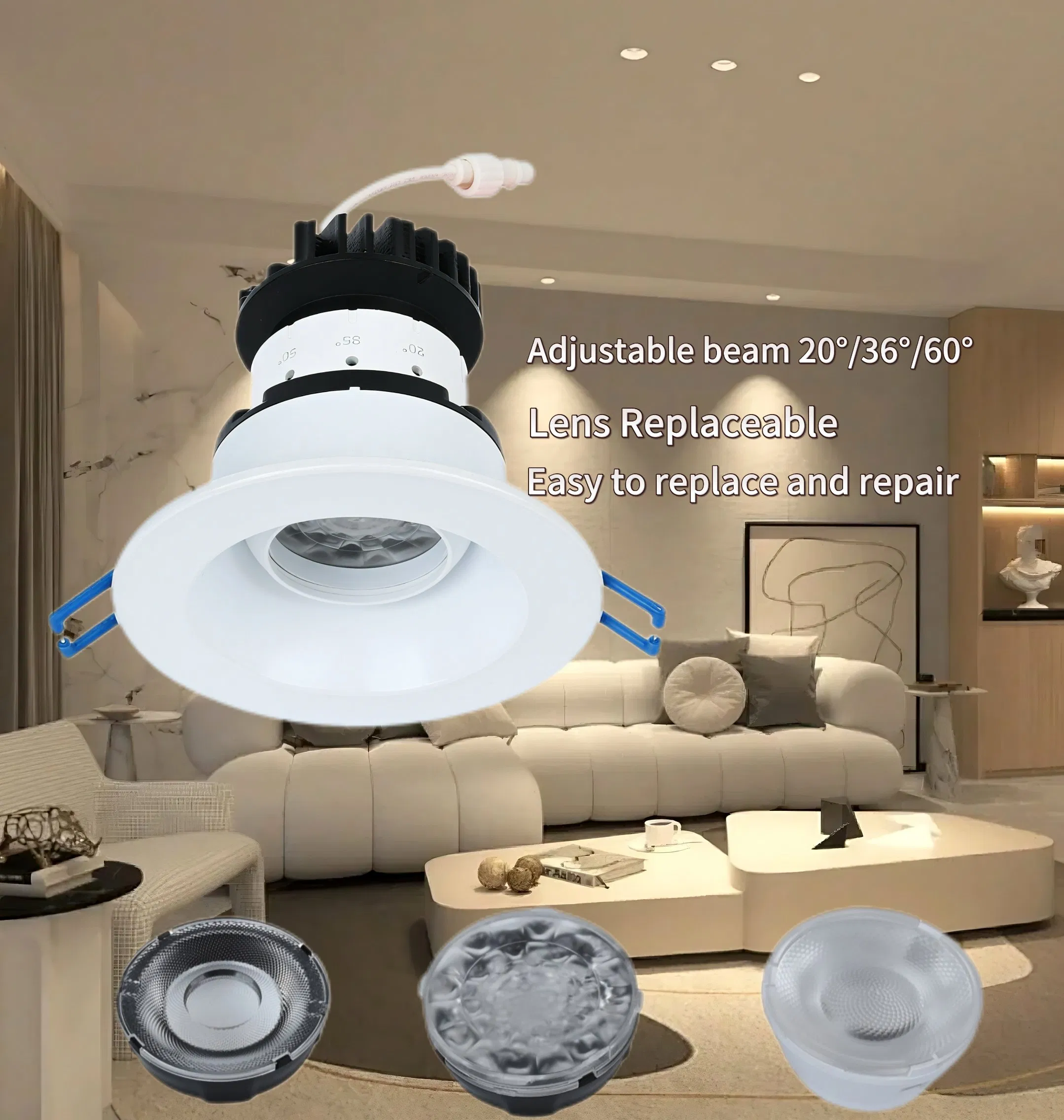

Beam Angle: 20° | 36° | 60°

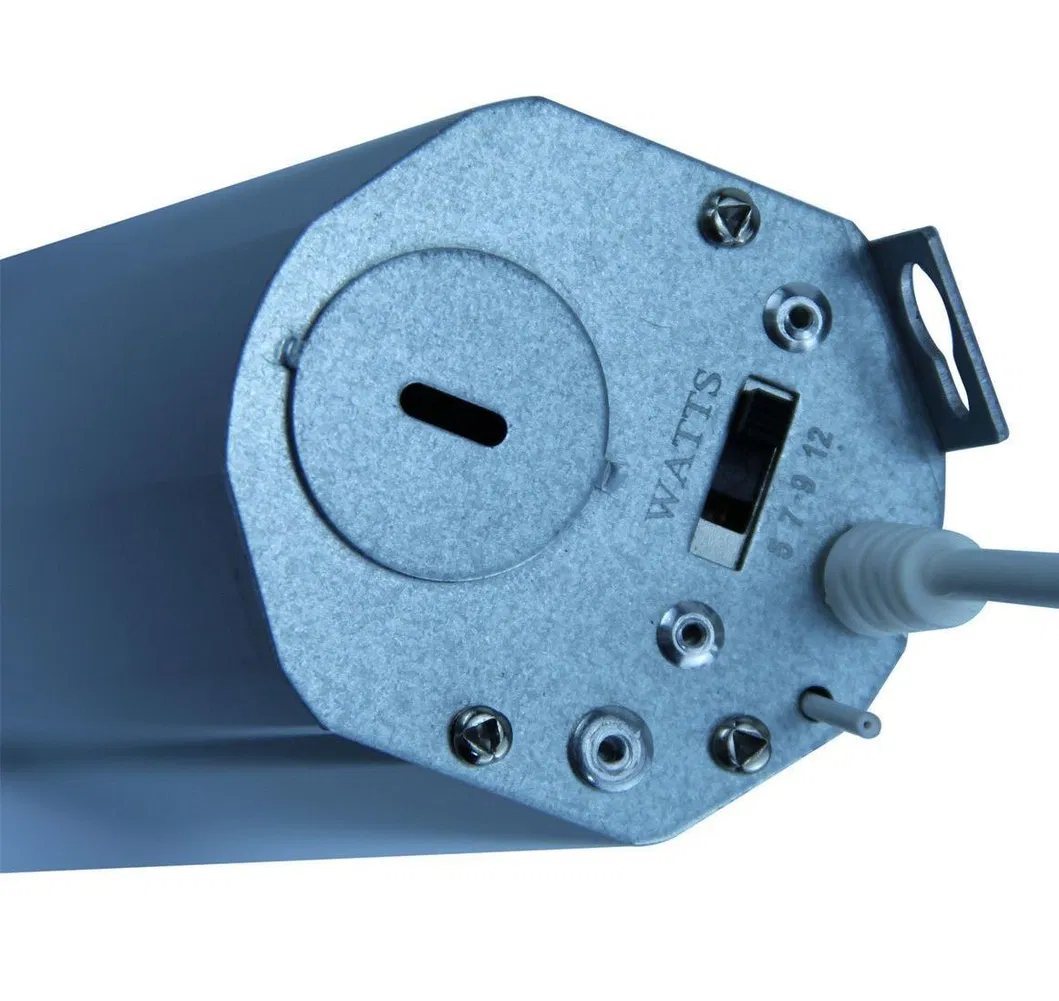

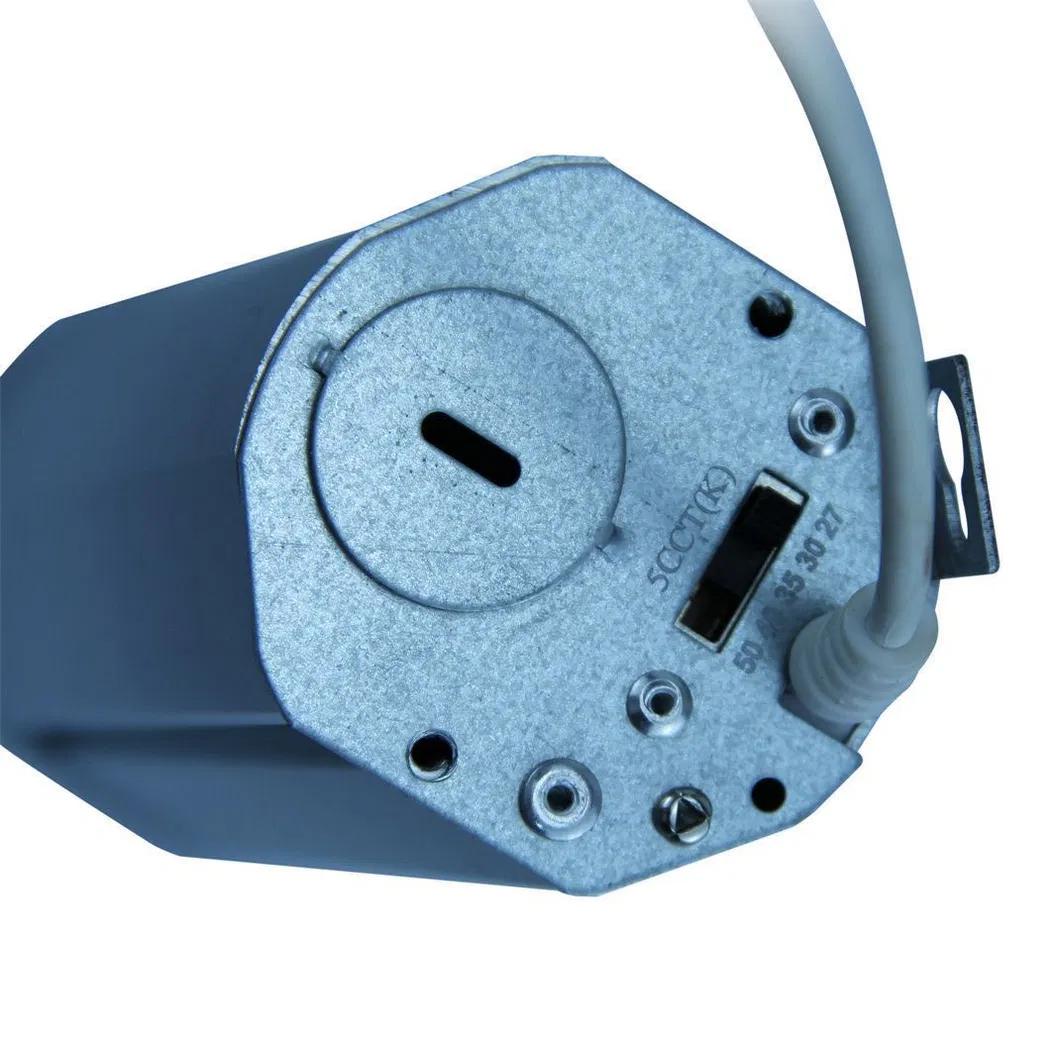

Driver Inside Connection Box - Wattage & CCT Selectable Switches

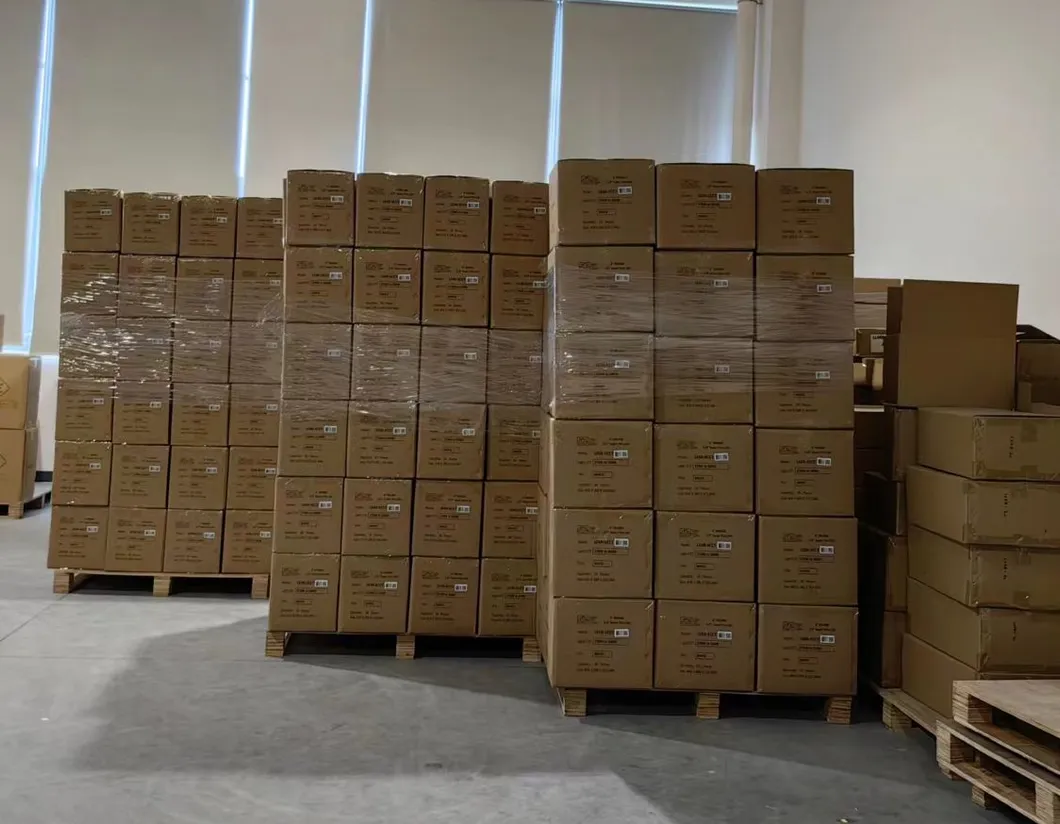

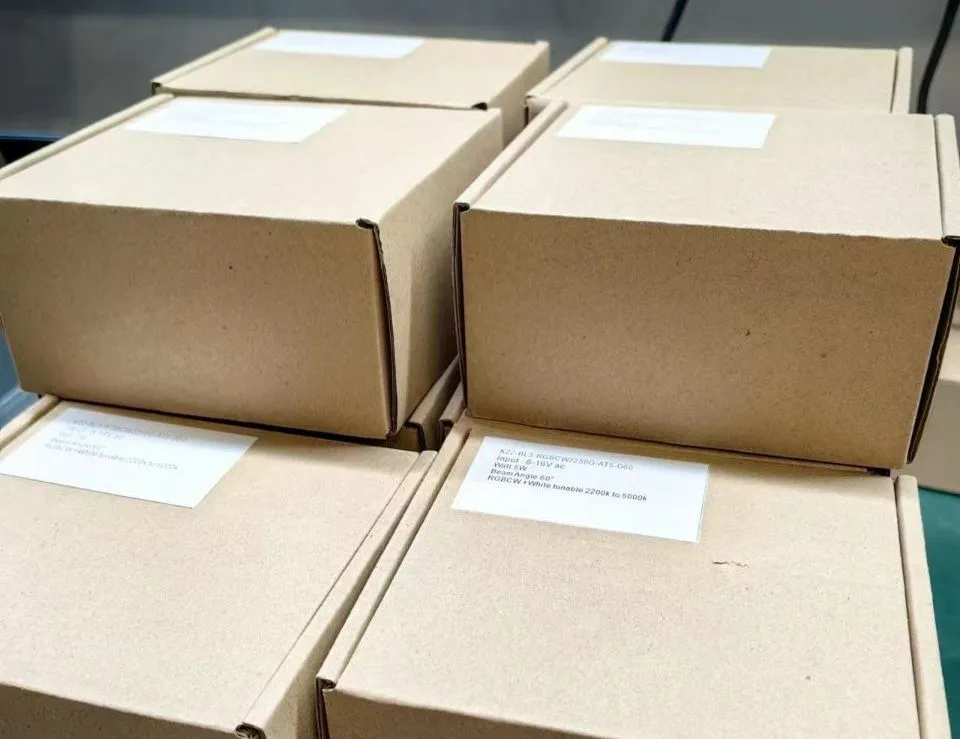

Our cardbox packaging is designed to be durable enough for long-distance international transportation. We offer a wide range of logistics options including world express, sea, air, and land freight to meet your requirements.

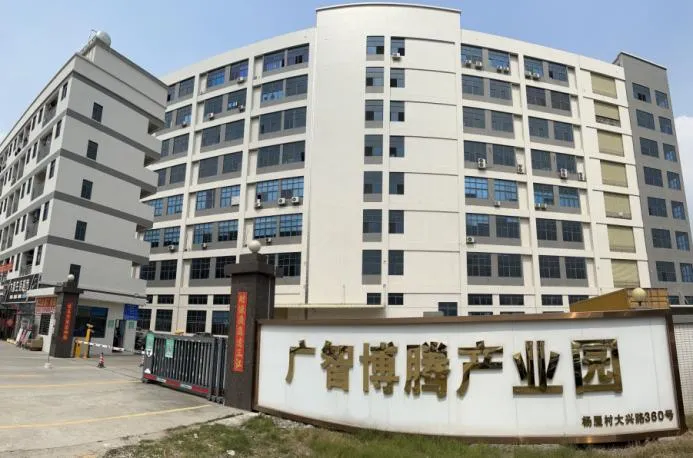

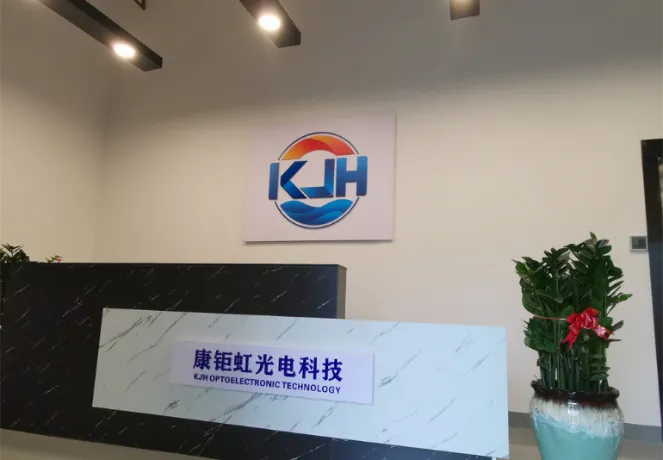

Our professional LED lighting company has been a leader in the industry since 2014. With a production area of 4,200 square meters, we have collaborated with major retailers in North America for over a decade. You can trust us to provide high-quality lighting products and professional solutions for your business.

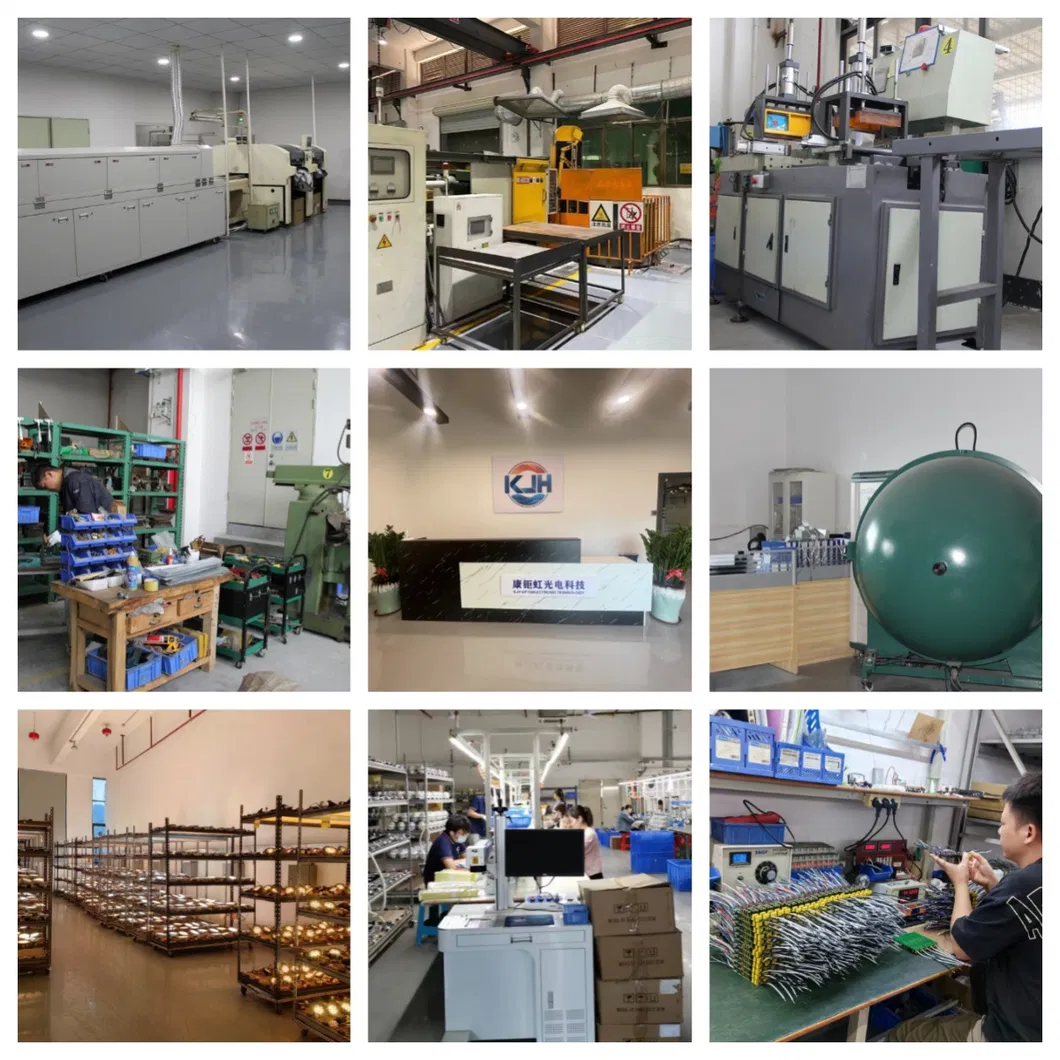

Production Capabilities: We operate our own hardware factory, power supply R&D center, and advanced manufacturing facilities including SMT machines, auto-soldering, and CNC laser machines. Our monthly capacity exceeds 500,000 units.
R&D Excellence: Our team of over 10 experienced engineers specializes in circuit design, optical lens research, and structural aesthetics. Most products feature private molds and hold global certifications.
Quality Control: We strictly implement ISO9001 management. Every product undergoes a minimum 48-hour aging test and full inspection before shipment to ensure the lowest possible failure rate.
