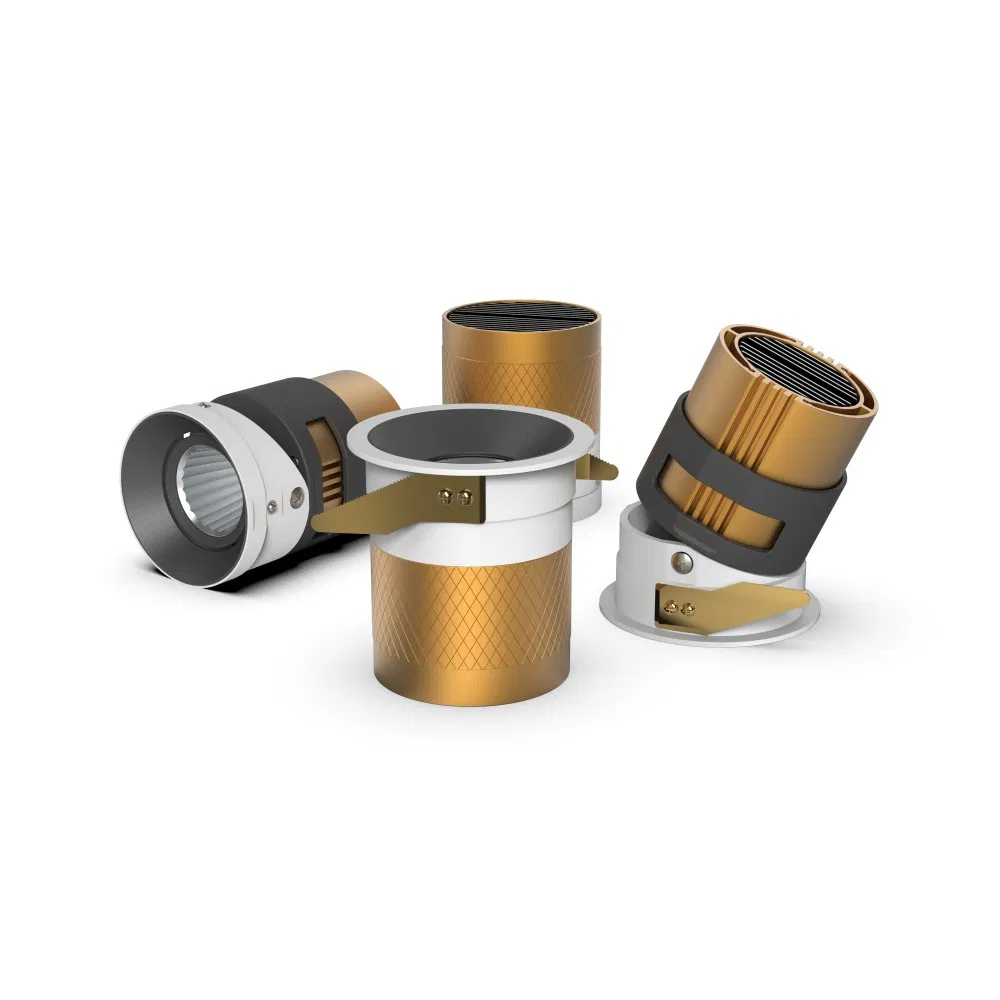

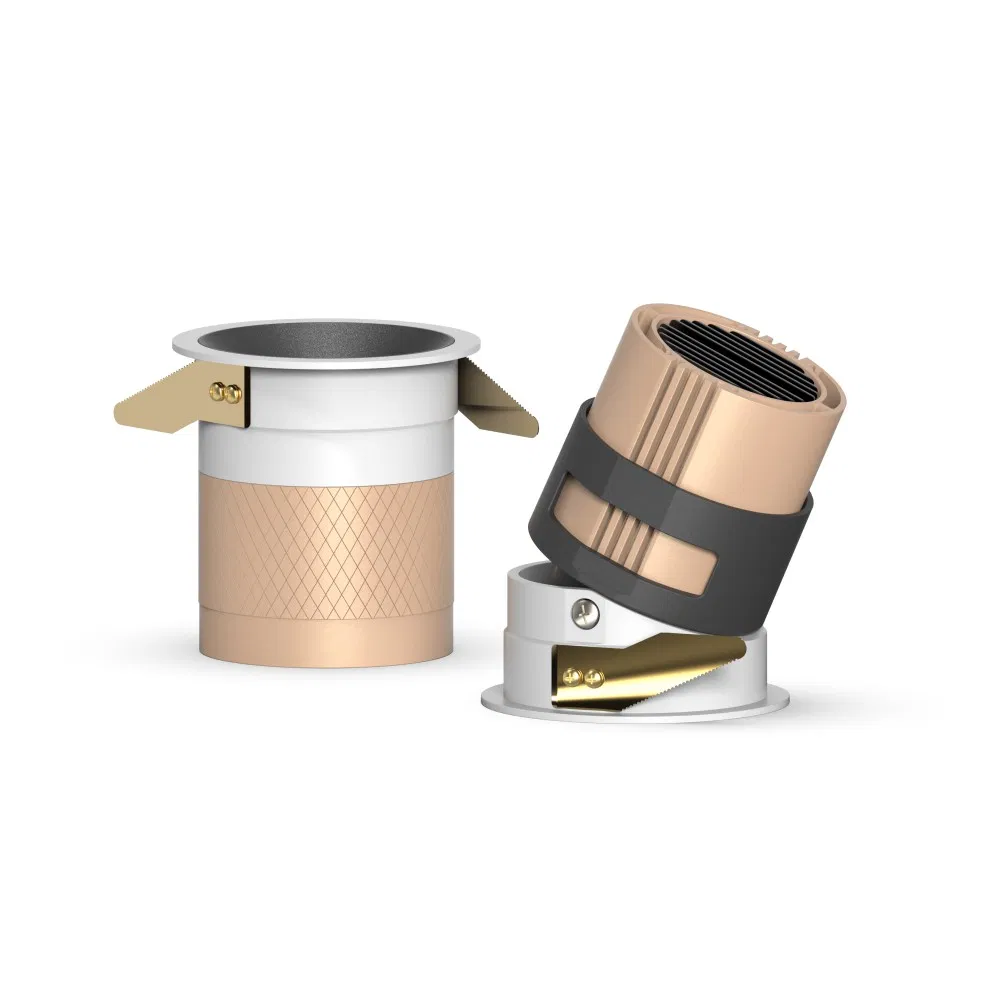

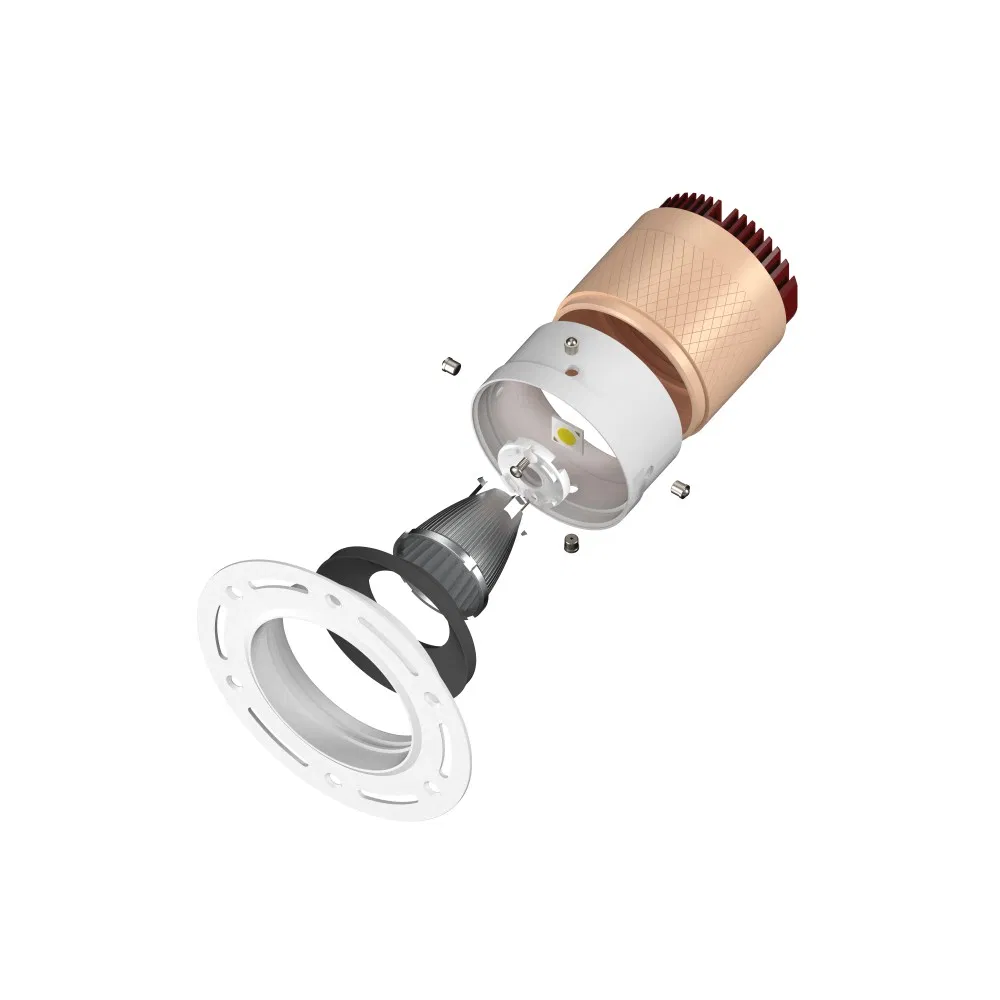

Recessed Mounted Trim/Trimless LED Downlight
High-efficiency architectural lighting solution featuring die-cast aluminium profiles. Designed for anti-glare performance with versatile mounting options (Trim or Trimless).
| Parameter | Specifications |
|---|---|
| Input Voltage | AC110V, AC220V, DC24V, DC48V |
| Lighting Efficiency | 140lm/W |

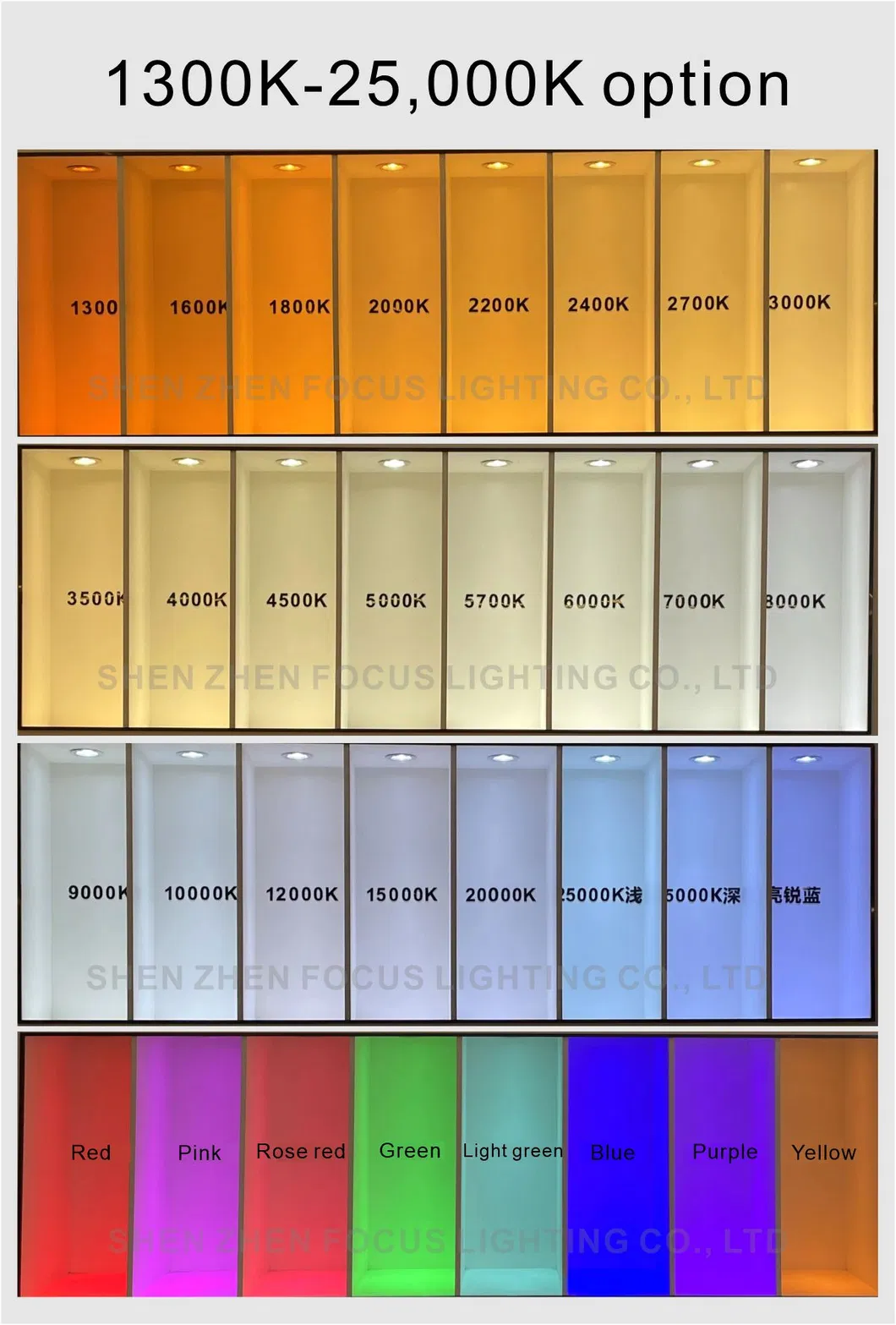

| CCT | 2700K - 5000K, CCT tunable |
| Working Temperature | -25ºC to 45ºC |
| IP Rating | IP20 (IP65 customized) |

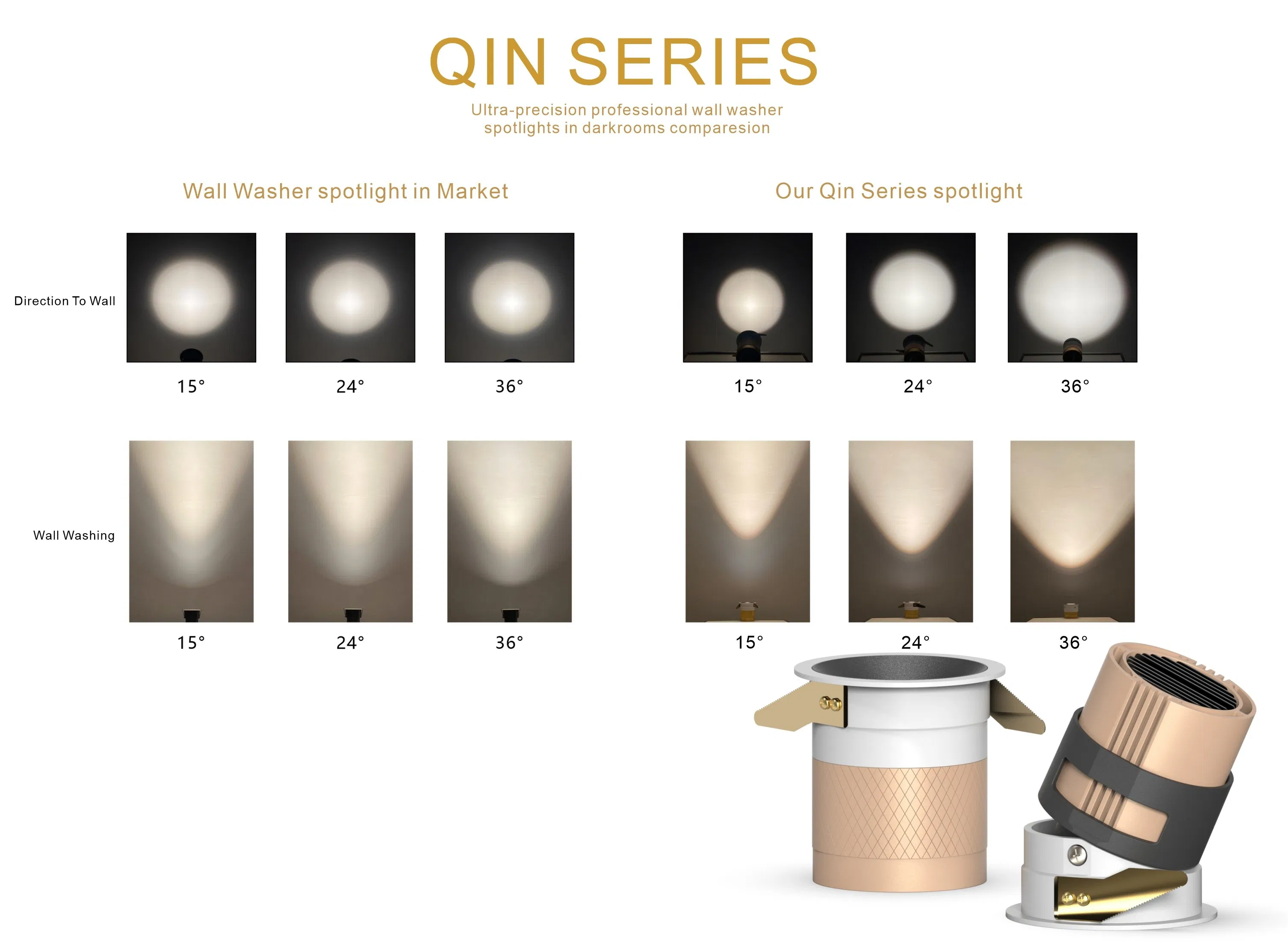

| Beam Angle | 15°, 24°, 36° |
| Dimming Function | ON-OFF, 1-10V, Triac, PWM, DALI, ZigBee |
| Housing Color | White, Black |
| Power / Type | Dimension | Cut Hole | Direction | Beam Angle |
|---|---|---|---|---|
| 12W (Trim) | φ82*H83/72/63mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trimless) | φ70*H83/72/63mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trim) | φ82*H105/89/80mm | φ75mm | Adjustable | 15°/24°/36° |
| 12W (Trimless) | φ70*H105/89/80mm | φ75mm | Adjustable | 15°/24°/36° |

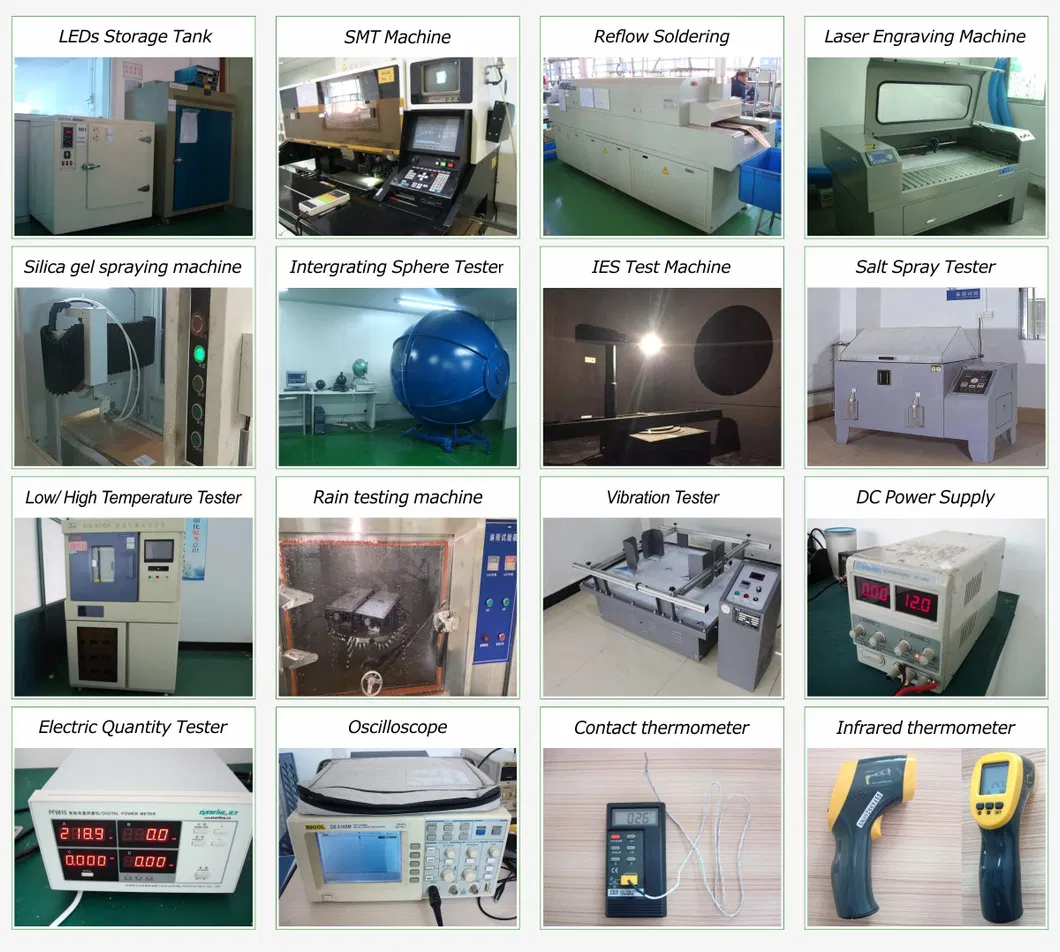

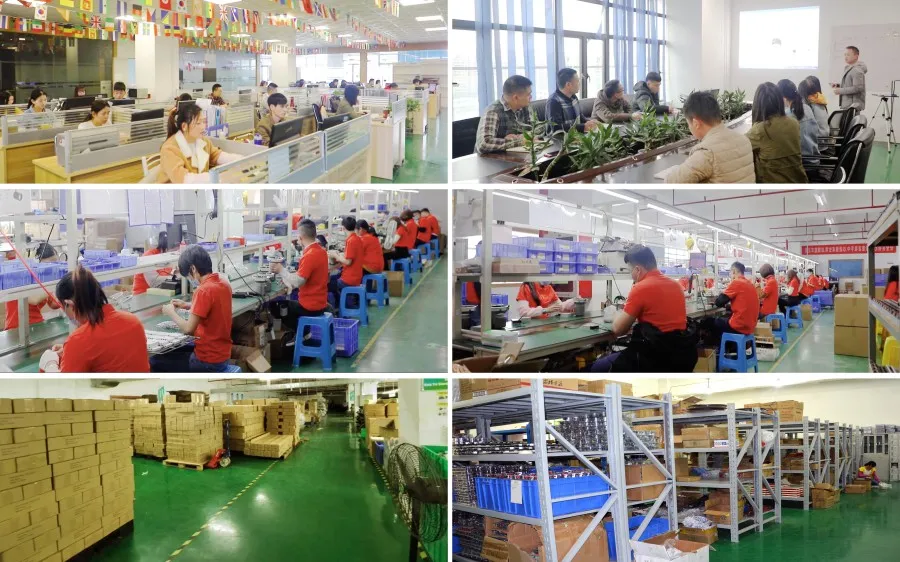

Specializing in LED lighting since 2010, we maintain a professional R&D team and advanced testing equipment. Our integrated quality control system covers every stage from development to final delivery.
Our main product range includes LED track lights, LED downlights, and commercial PAR lights. With extensive experience in OEM/ODM services, we design custom drivers and lighting solutions that meet specific functional requirements for global markets.
