Indoor Commercial Residential Lighting Semi- Surface Mounted Recessed LED Downlight

Customization: Available
Beam Angle: Adjustable
Input Voltage: 110V

Product Description

Basic Information
Power
4-6W / 7W/9W/12W Switchable
Color Temperature
5CCT (2700K/3000K/3500K/4000K/5000K)
Material
Aluminum
Installation
Recessed
IP Rating
IP54
Warranty
5 Years
CRI
>90 (CRI>98 optional)
Cutout
68mm
Beam Angle
Adjustable 20° / 36° / 50°
Certification
CE, ETL, FCC, RoHS, Energy Star
Product Description
Modular design engine supports replaceable round/square 8 different trims. The beam angle can be adjusted to 20° 36° 50° with click feedback. Compatible with 3 series of LEDiL optics providing narrow to flood, wall-washing and oval beams. Interchangeable lenses can cater to diverse needs.
Product Engine
  • Durable Aluminum body for excellent heat dissipation.
  • Adjustable beam angle (20°/36°/50°) with click feedback.
  • Anti-glare and super slim lens options available.
  • 5CCT-switchable and compatible with TRIAC dimmers.
  • Type IC, Air-Tight & Wet - No Housing Required.

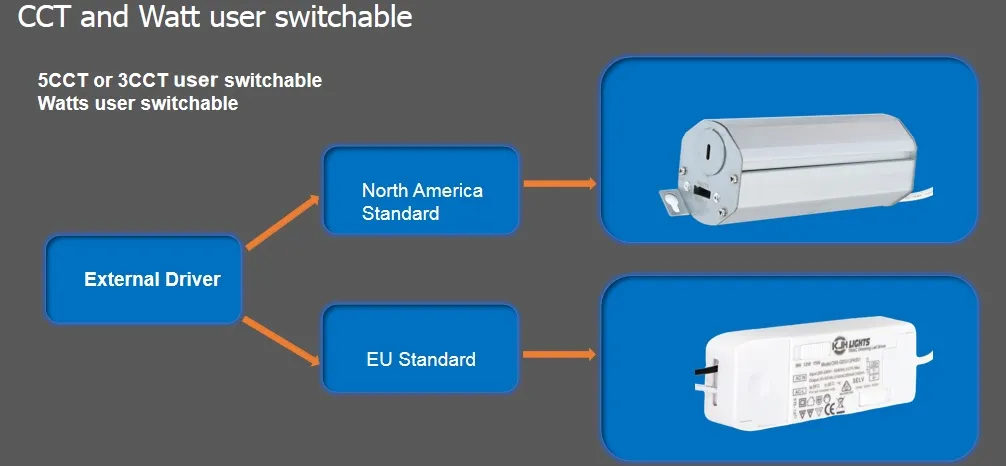

  • Optional Driver: 110-277V 0-10V / White tunable / Smart RGBCW.
Model (Round/Square) Dimension (mm) Cut Hole Power Input Dimming CCT UGR
KL2R / KL2S Series φ78*H83.25 / L78*W78*H85.25 68mm 4w/6w switchable 120V AC Triac 5CCT Adjustable <10
KD2R / KD2S (Deep) φ78*H98.25 / L78*W78*H98.25 68mm 4w/6w switchable 120V AC Triac 5CCT Adjustable <10
Detailed Photos
Trims Overview
Detail 1 Detail 2
Detail 3 Detail 4
Exploded View Lens Options
Related Products

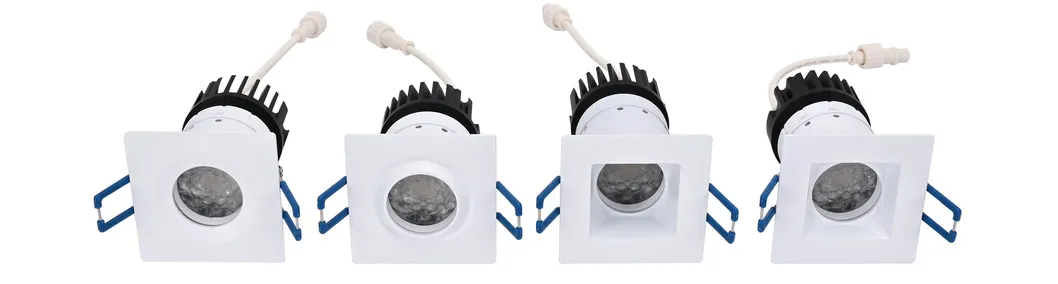

Related 1 Related 2
Applications
Application Scene

Ideal for residential, commercial, and architectural indoor applications.

Packaging & Shipping

Cardbox package is durable enough for long distance transportation. We offer a wide range of logistics options including world express, sea, air, or land freight.

Box Packing Pallet Packing
Logistics
Company Profile

We are a professional LED lighting company established in 2014, operating within a 4200sqm facility. With a decade of experience cooperating with major retailers in North America, we provide high-quality lighting products and business solutions.

Production Facility Workshop
Production Excellence

Equipped with hardware and power supply R&D centers, SMT machines, die-casting, and CNC facilities. Monthly capacity reaches 500,000pcs with 10 aging lines.

R&D Team

Over 10 expert engineers focused on circuit design, optical lens research, and private mold development. Products are ETL, TUV, CE, and RoHS certified.

Factory Show
Frequently Asked Questions
Are you a manufacturer?
Yes, we have our own factory with full production lines for lighting products.
Can you offer samples?
Yes, sample orders are welcome to test quality before placing bulk orders.
How long is your production time?
For small quantities, production usually takes 5-7 days. Larger orders are determined by specific quantity requirements.
Do all products undergo testing before shipping?
Yes, all products undergo at least 48 hours of aging and testing to ensure a minimal failure rate.
How do you handle after-sales issues?
Please provide a photo of the problem. We will confirm and provide a satisfactory solution within 24 hours.
Do you provide OEM services?
Yes, we offer OEM services including customized labels and color boxes according to your requirements.
