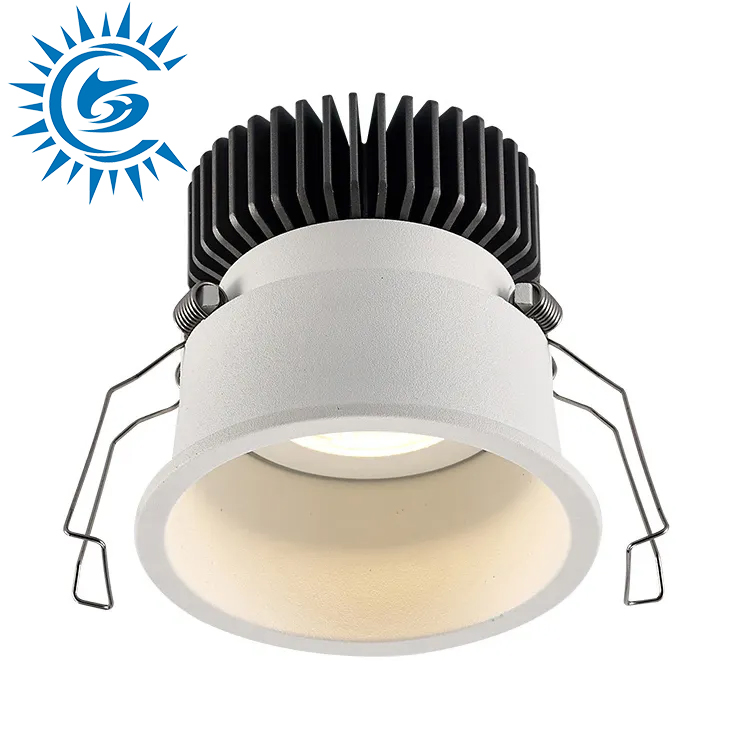

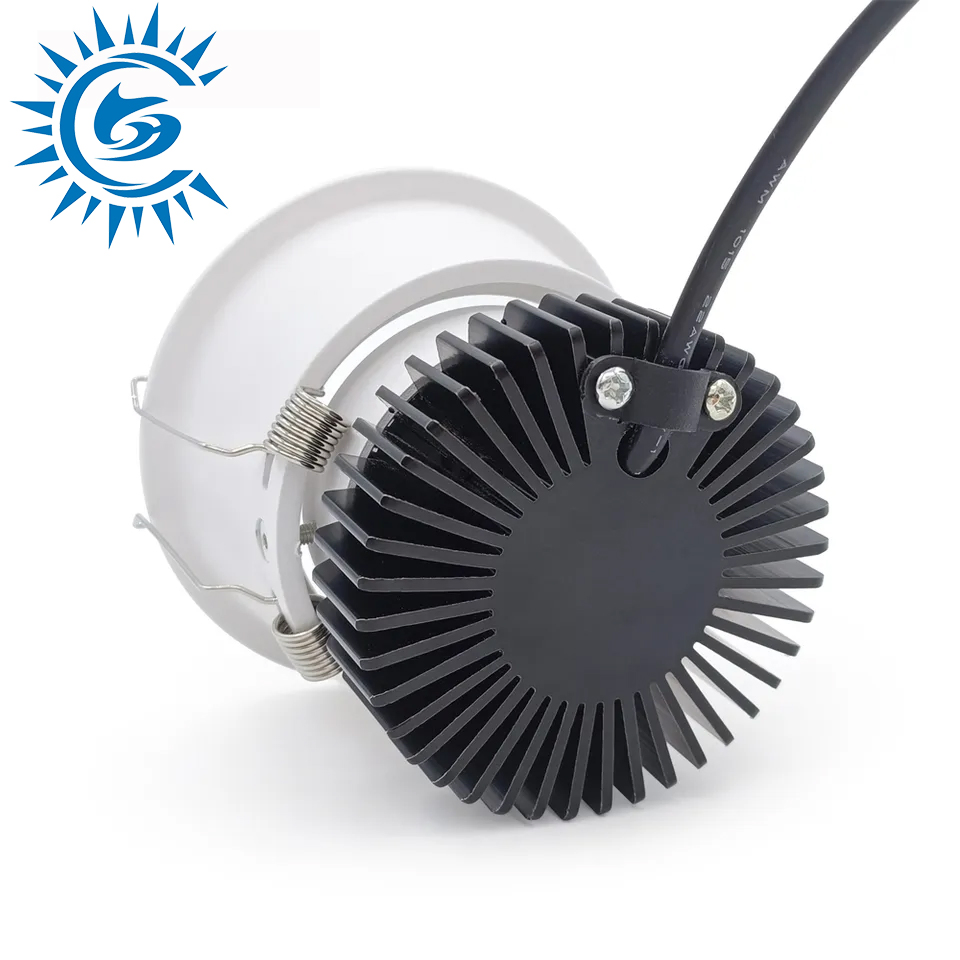

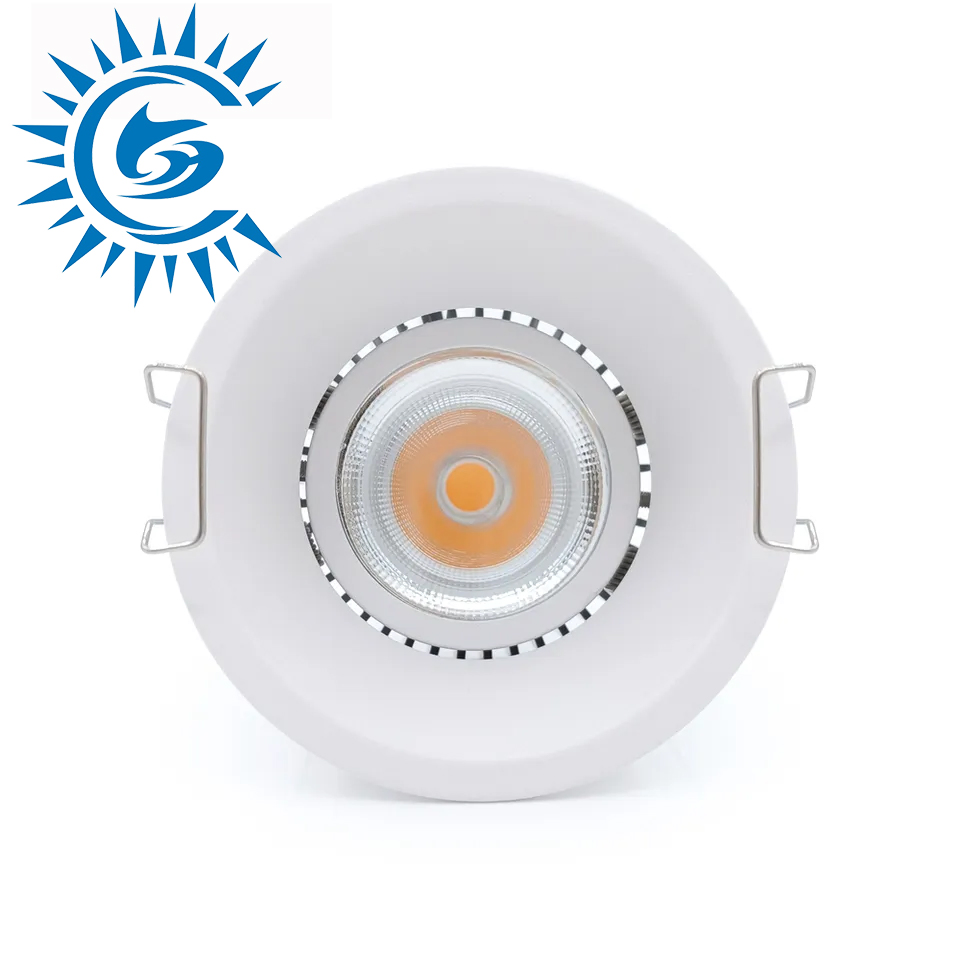

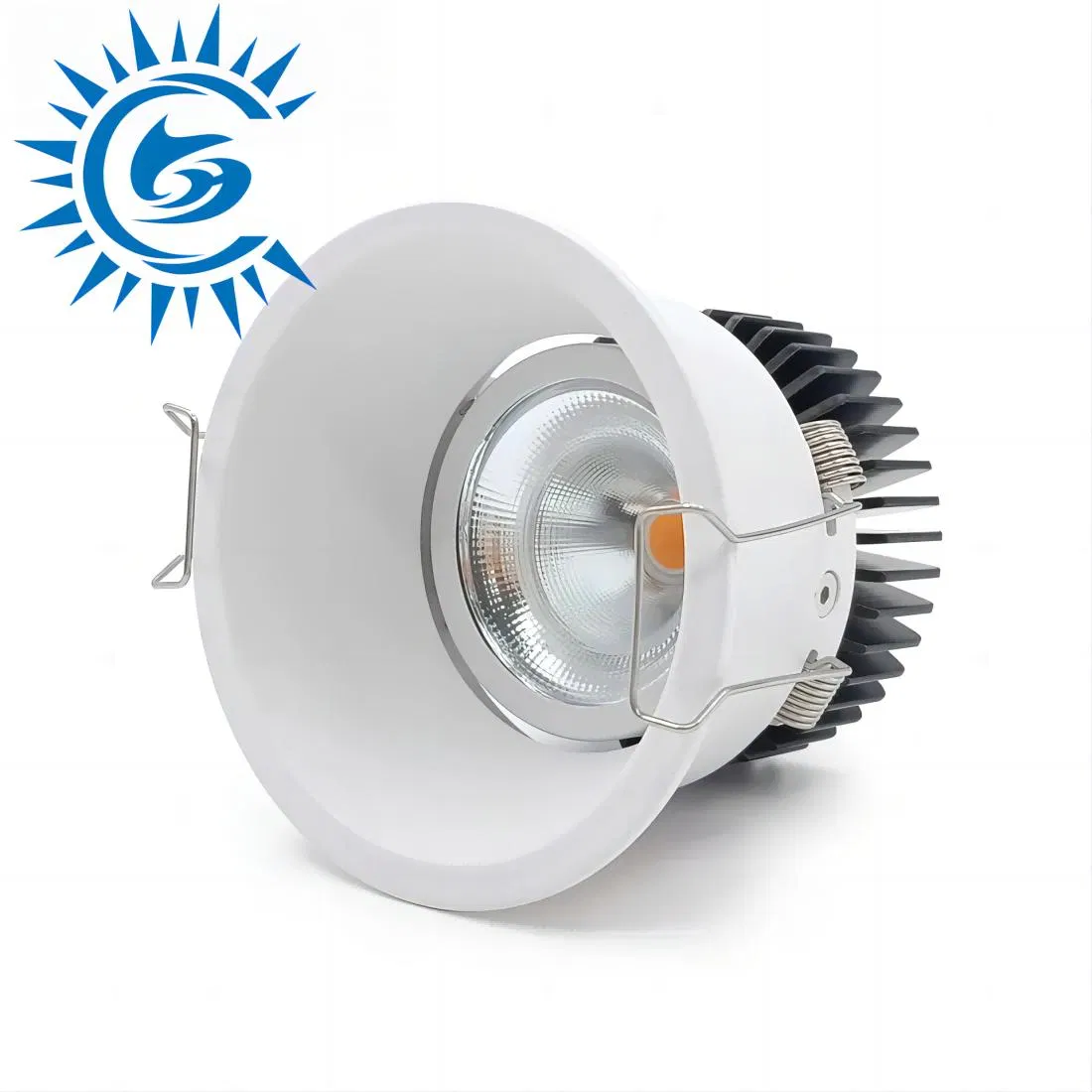

IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
1 / 5
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight
IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight

IP65 Waterproof Anti-Glare Adjustable 5W-35W LED Spotlight LED COB Downlight

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
YH-DL-016
Power Range
5-35W
Color Temperature
2700K-6500K
Material
Aluminum
Installation
Recessed / Plug Lamp
Switch Type
Touch On/Off Switch
Warranty
3-5 Years
IP Rating
IP20 / IP44 / IP65
Voltage
220V-240V 50/60Hz
CRI (Ra)
80
Certification
CE, EMC, LVD, RoHS
HS Code
9405409000
Product Parameters

IP65 Waterproof Aluminum Anti-Glare Adjustable LED Spotlight

Model YH-DL-016
Type LED Spotlight / LED Downlight
Available Colors Matt White / Matt Black
Size (mm) Ø65*H60 Ø85*H82 Ø110*H92 Ø130*H120
Cutout (mm) Ø55 Ø75 Ø95 Ø117
Beam Angle 15° / 30° 15° / 24° / 38° / 60°
Power Options 5W / 7W 10W / 12W / 15W 18W / 20W / 24W 30W / 32W / 35W
Luminous Flux 80-120LM/W
LED Type COB
Product Visuals
LED Spotlight View 1

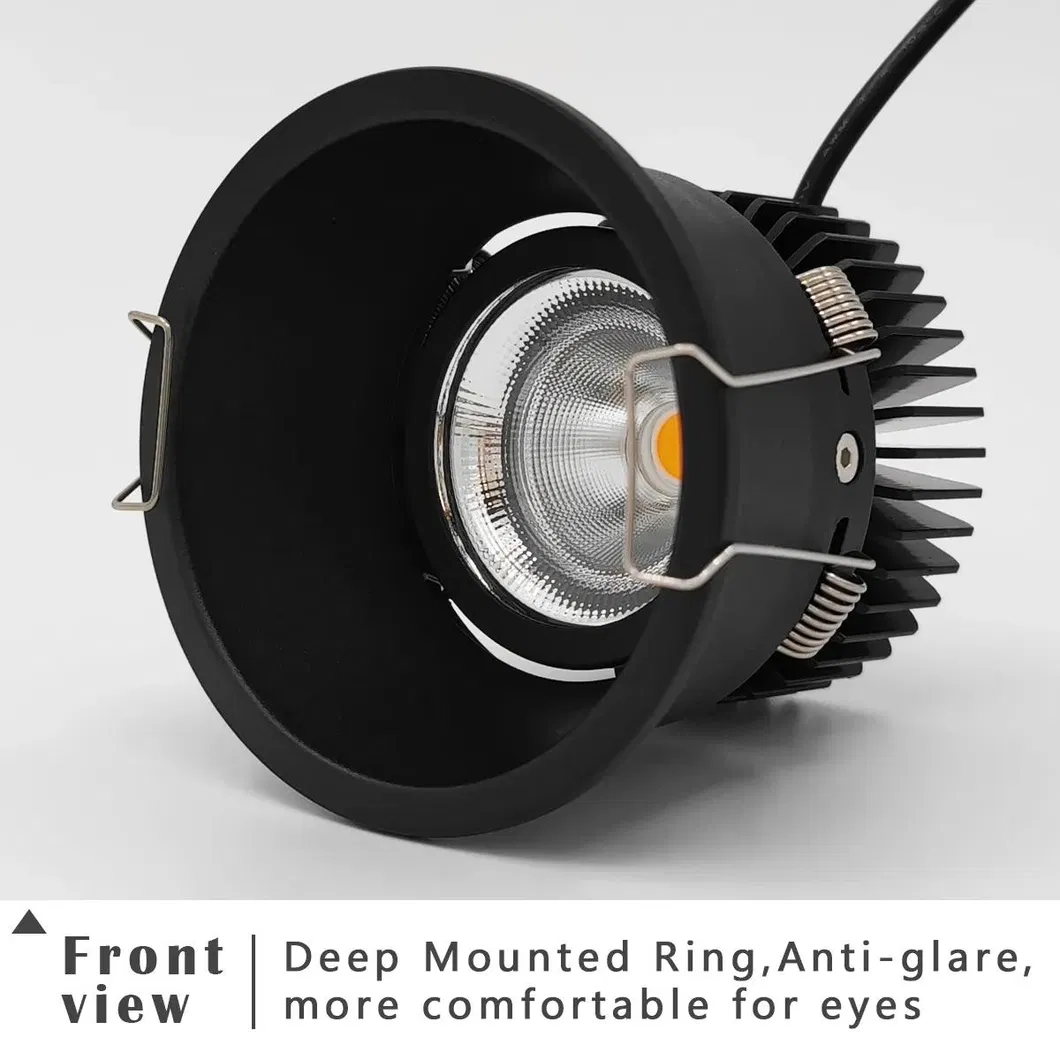

LED Spotlight View 2

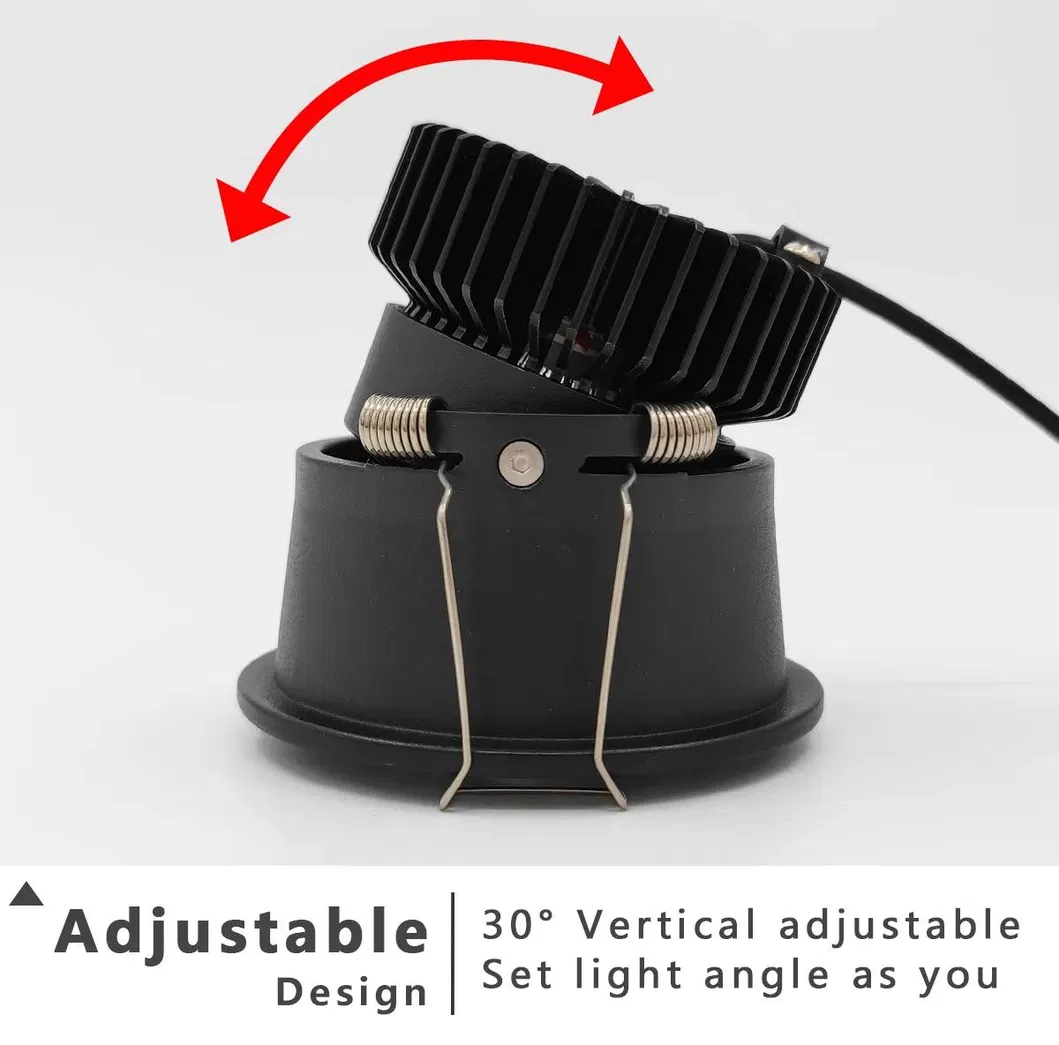

LED Spotlight View 3

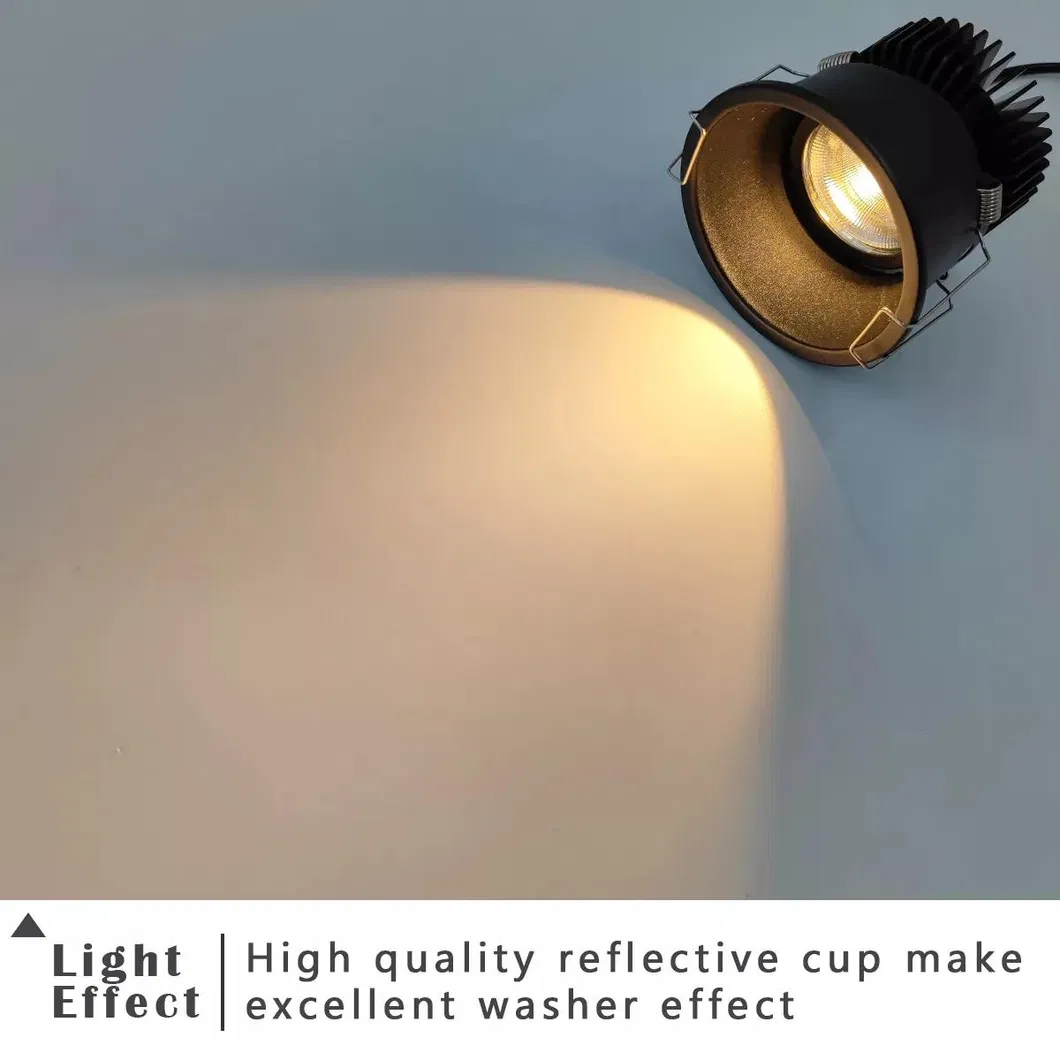

LED Spotlight View 4

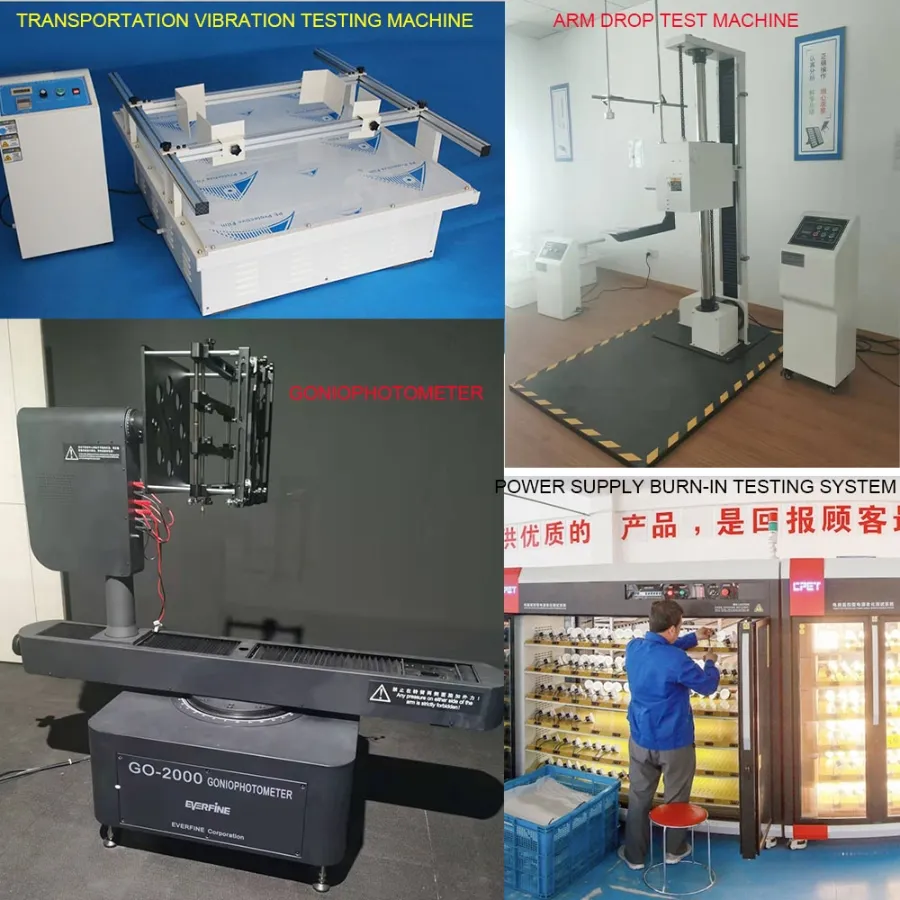

LED Spotlight View 5
LED Spotlight View 6

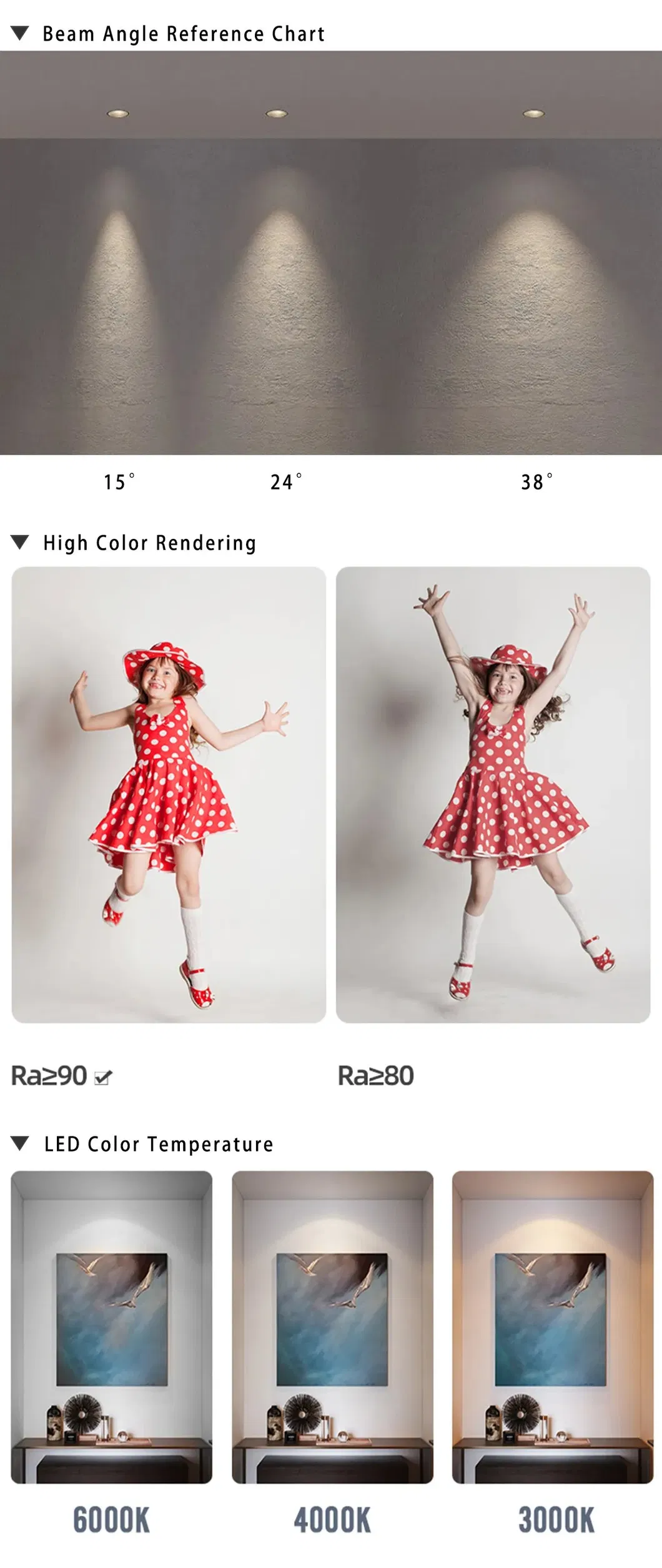

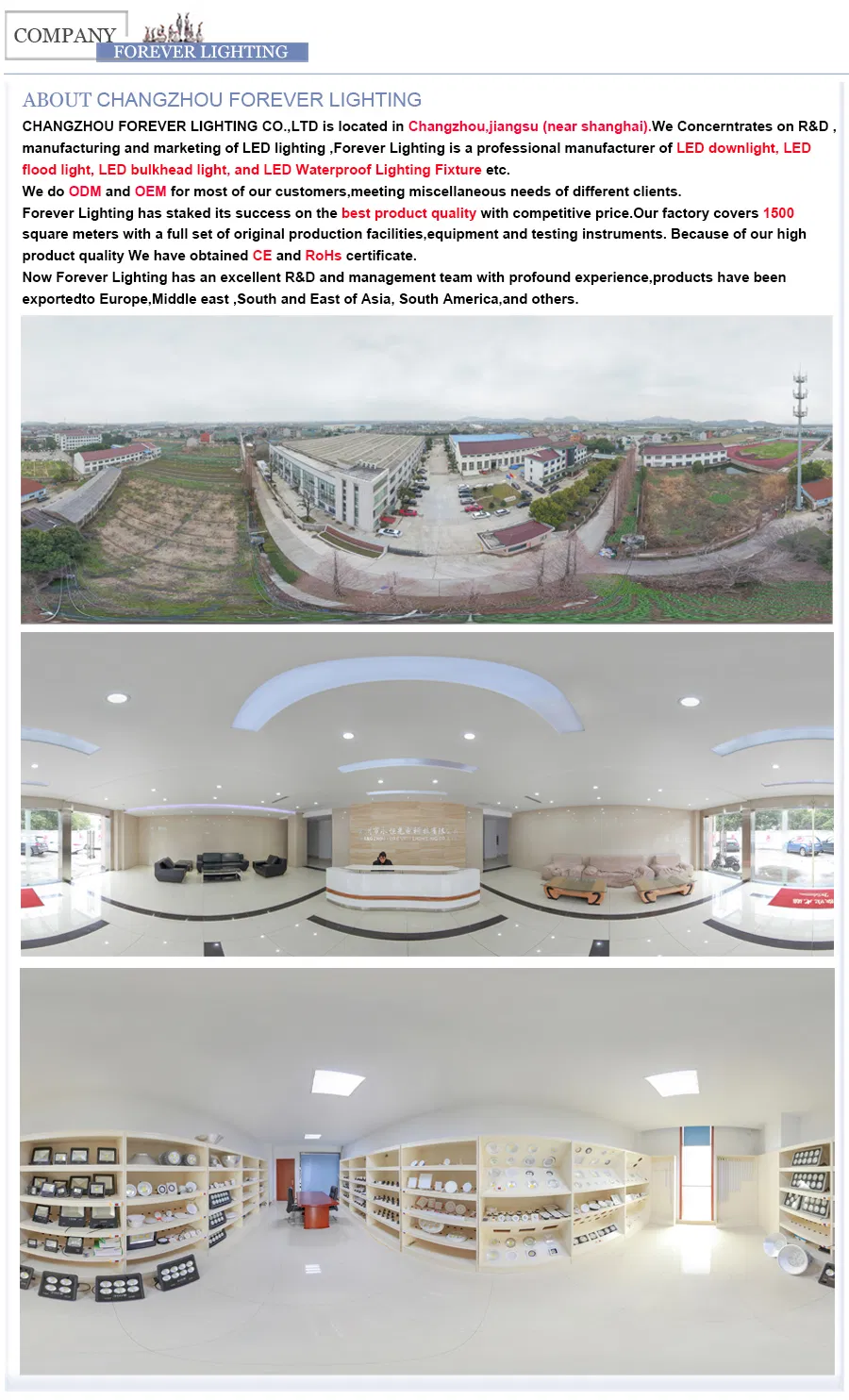

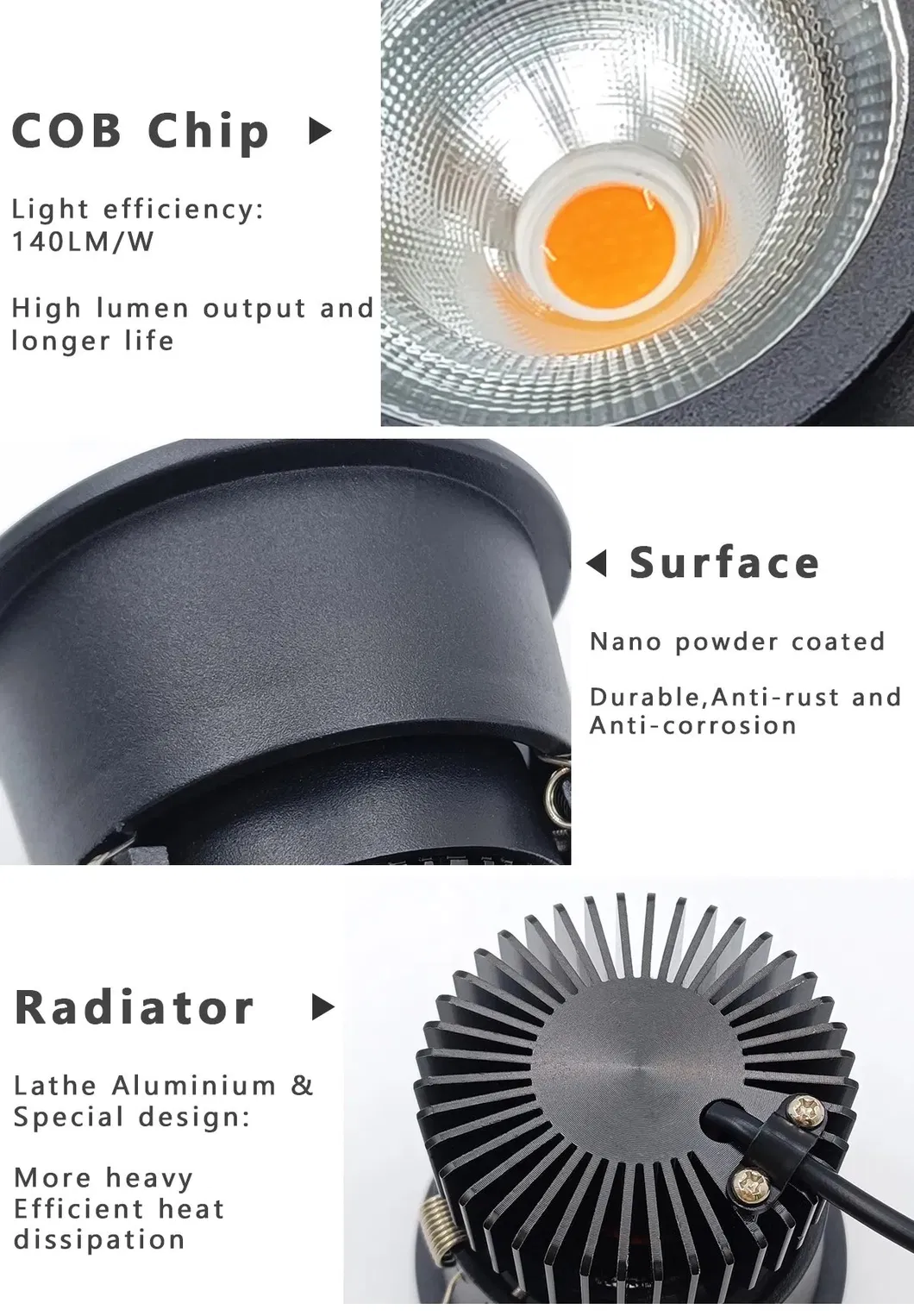

Technical Spec 1 Technical Spec 2 Technical Spec 3
Professional Services
⏱

24H Response
Inquiries replied within 24 hours by professional staff.

🛠

OEM/ODM
Customized manufacturing for products and packaging.

🔬

R&D Support
Experienced engineers available for complex projects.

Frequently Asked Questions
What is the IP rating of this spotlight?
This product series offers IP20, IP44, and IP65 options, making the IP65 versions suitable for waterproof and anti-glare requirements.
What power ranges are available for the YH-DL-016 model?
The power is adjustable and ranges from 5W to 35W depending on the specific size and configuration chosen.
How long is the delivery time for mass orders?
Samples are ready within 5-7 working days, while mass orders typically take 30-35 days after the deposit is received.
What certifications do your lighting products carry?
Our products are fully certified with CE, EMC, LVD, and RoHS standards to ensure safety and quality.
What is the warranty period?
We provide a professional warranty of 3 to 5 years. All items undergo strict QC testing before shipment.
Can I request customized beam angles?
Yes, multiple beam angles are available including 15°, 24°, 30°, 38°, and 60° to suit different lighting environments.
