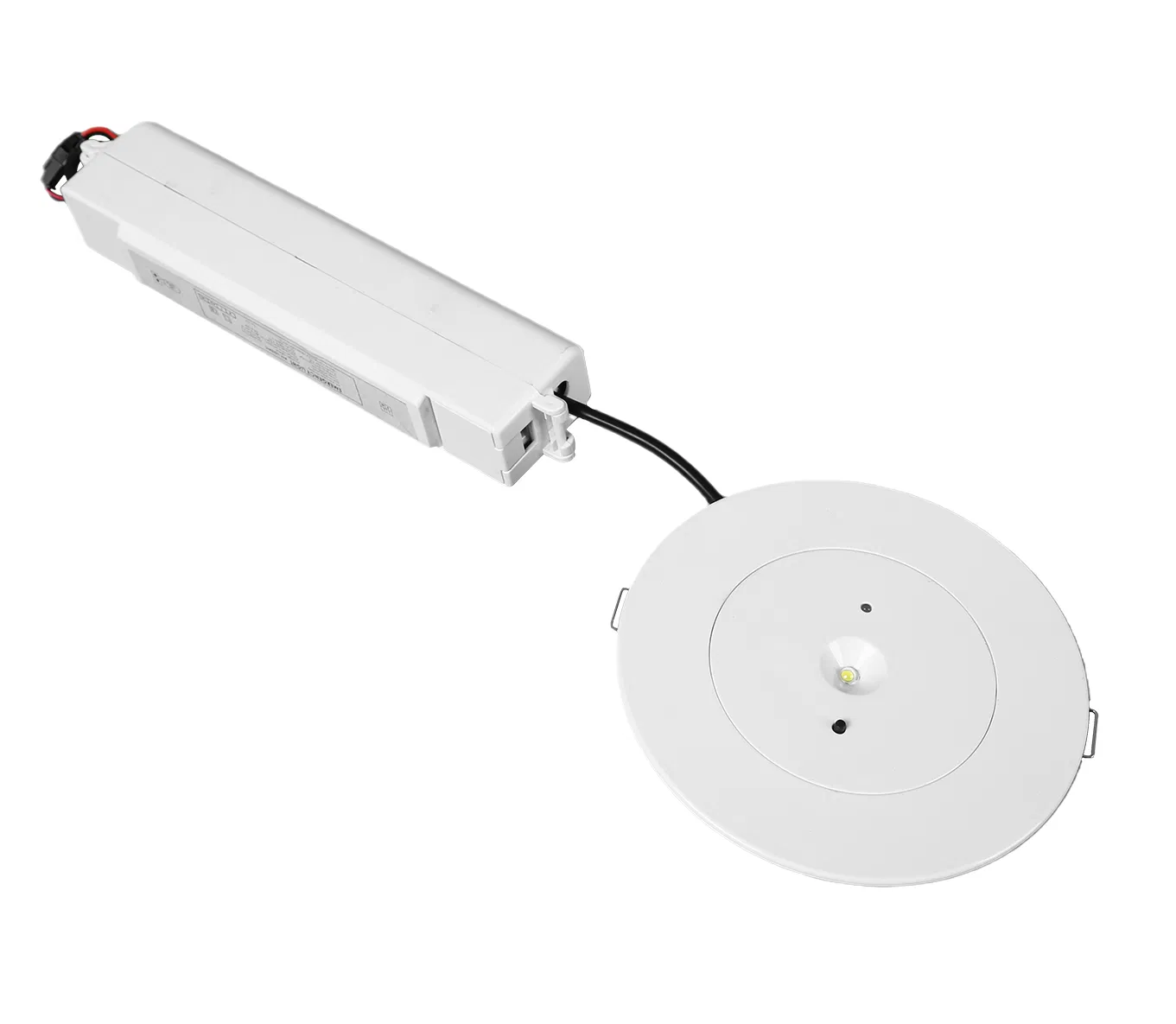

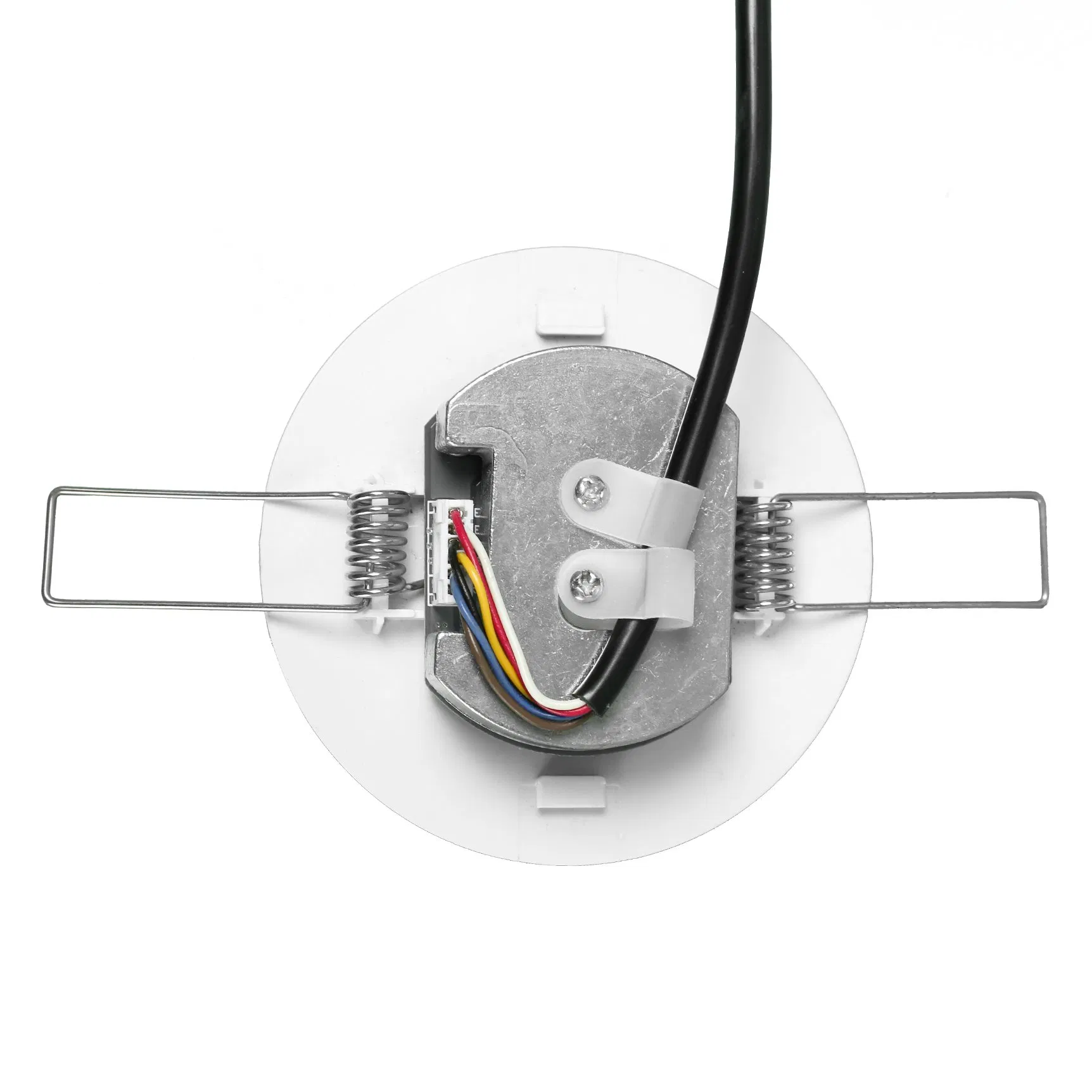

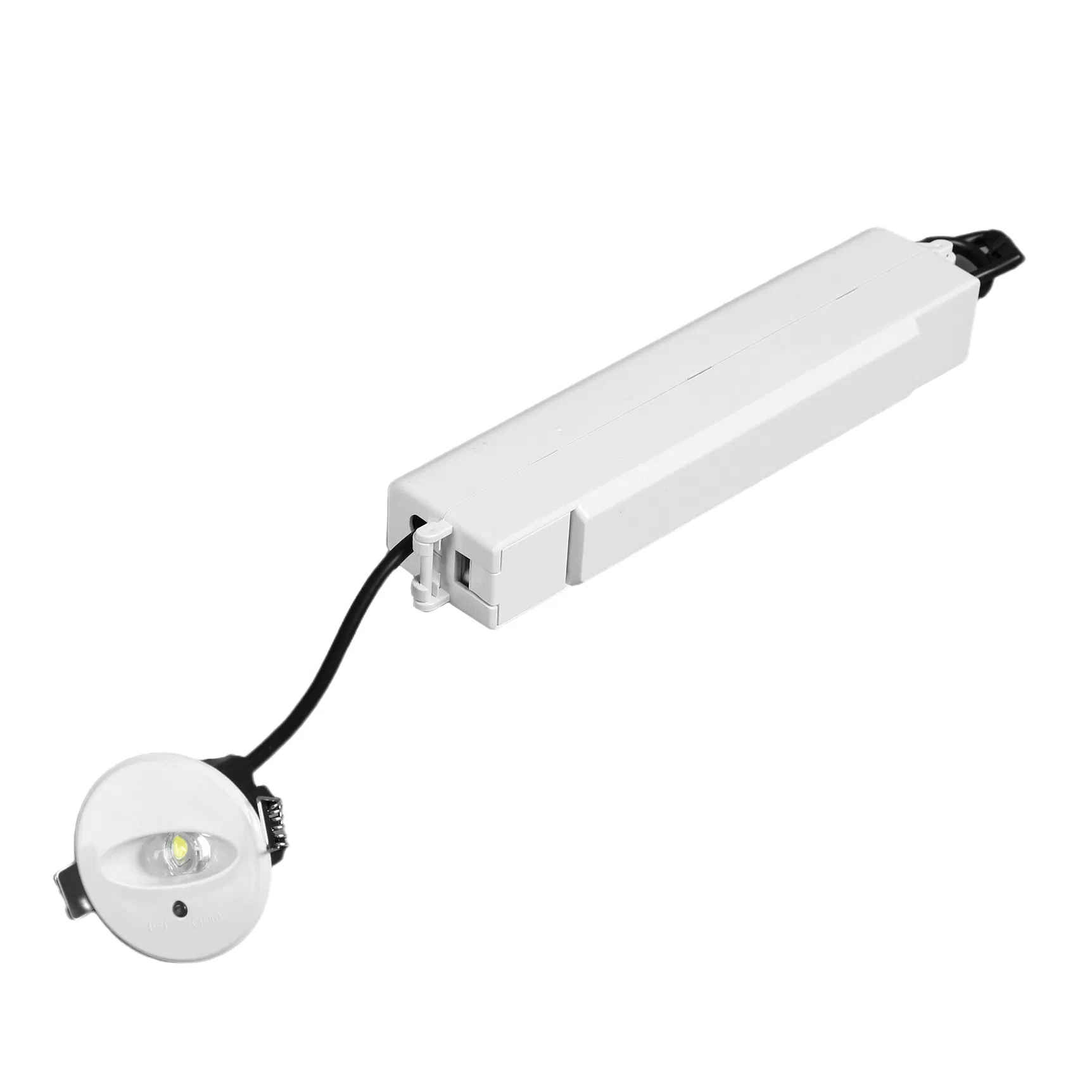

LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
1 / 5
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight
LED Backup Light, LED Emergency Recessed Downlight

LED Backup Light, LED Emergency Recessed Downlight

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
LEK02-3NC
Installation
Recessed
Color Temperature
Cool White
IP Rating
IP20
Operation Mode
Non-maintained
Battery Type
Ni-Cd Battery
Material
Plastic
Certification
CE, RoHS, CB
Warranty
4 Years
Lumen
150lm
Charge Time
24 Hours
Specification
40mm Cutout hole

Packaging & Delivery

Package Size
40.00cm * 28.50cm * 34.50cm
Package Gross Weight
8.000kg

Product Overview

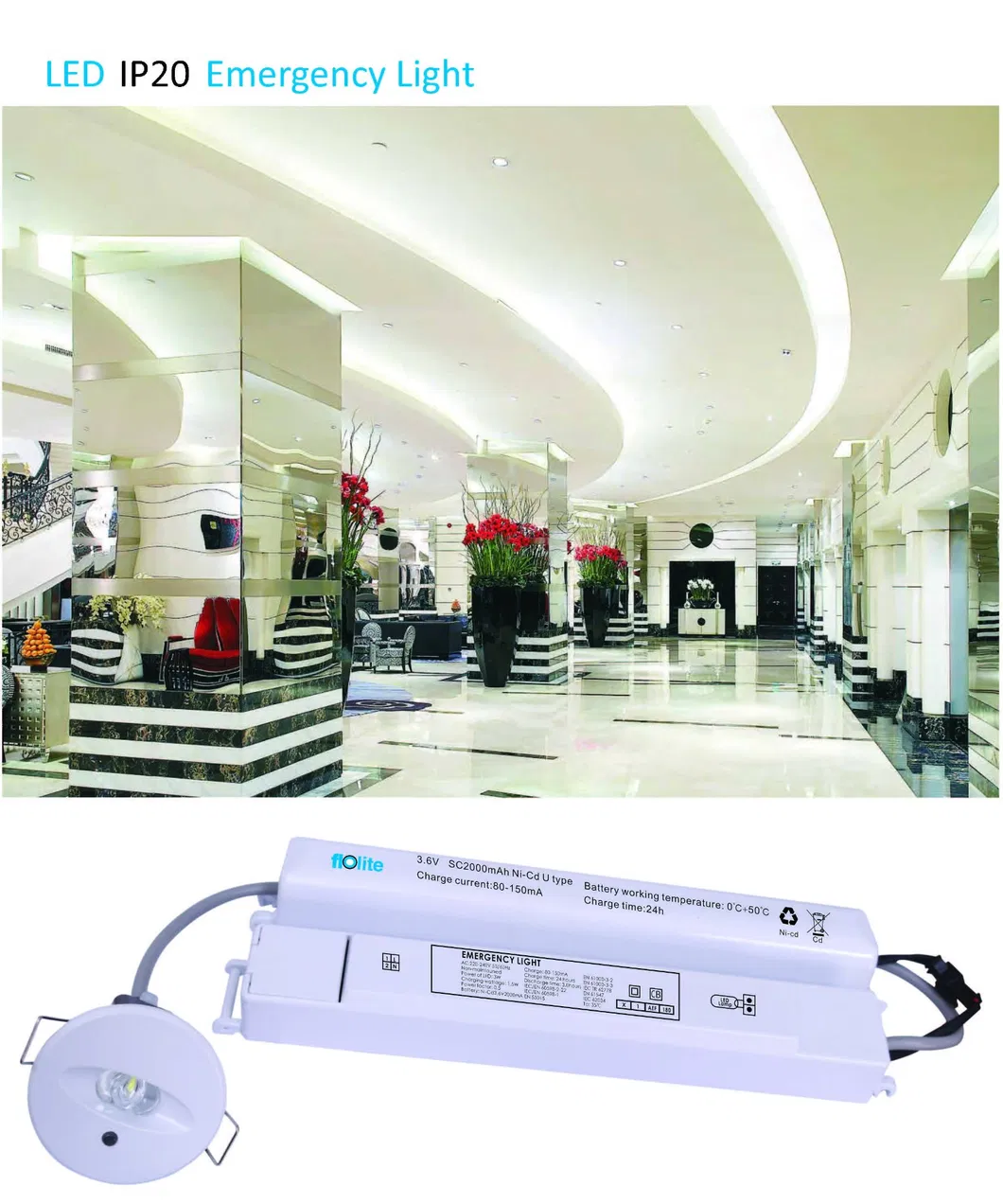

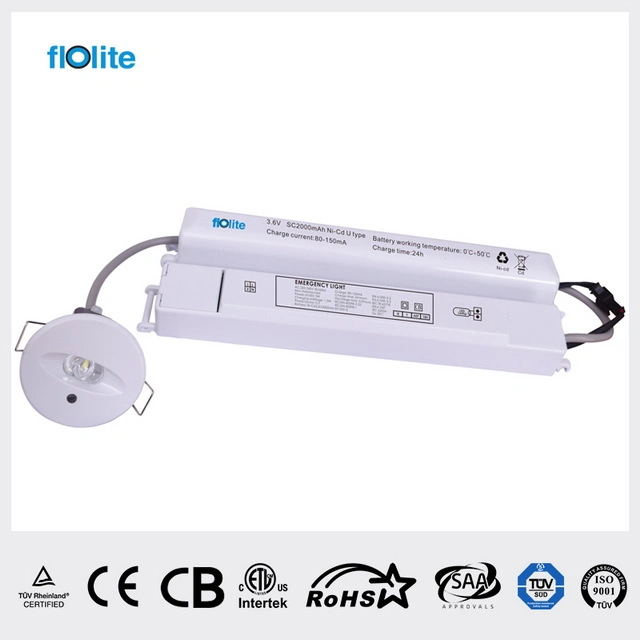

CB Approved 3W LED Emergency light with Ni-Cd batteries 3Hours Backup

LED Backup Light

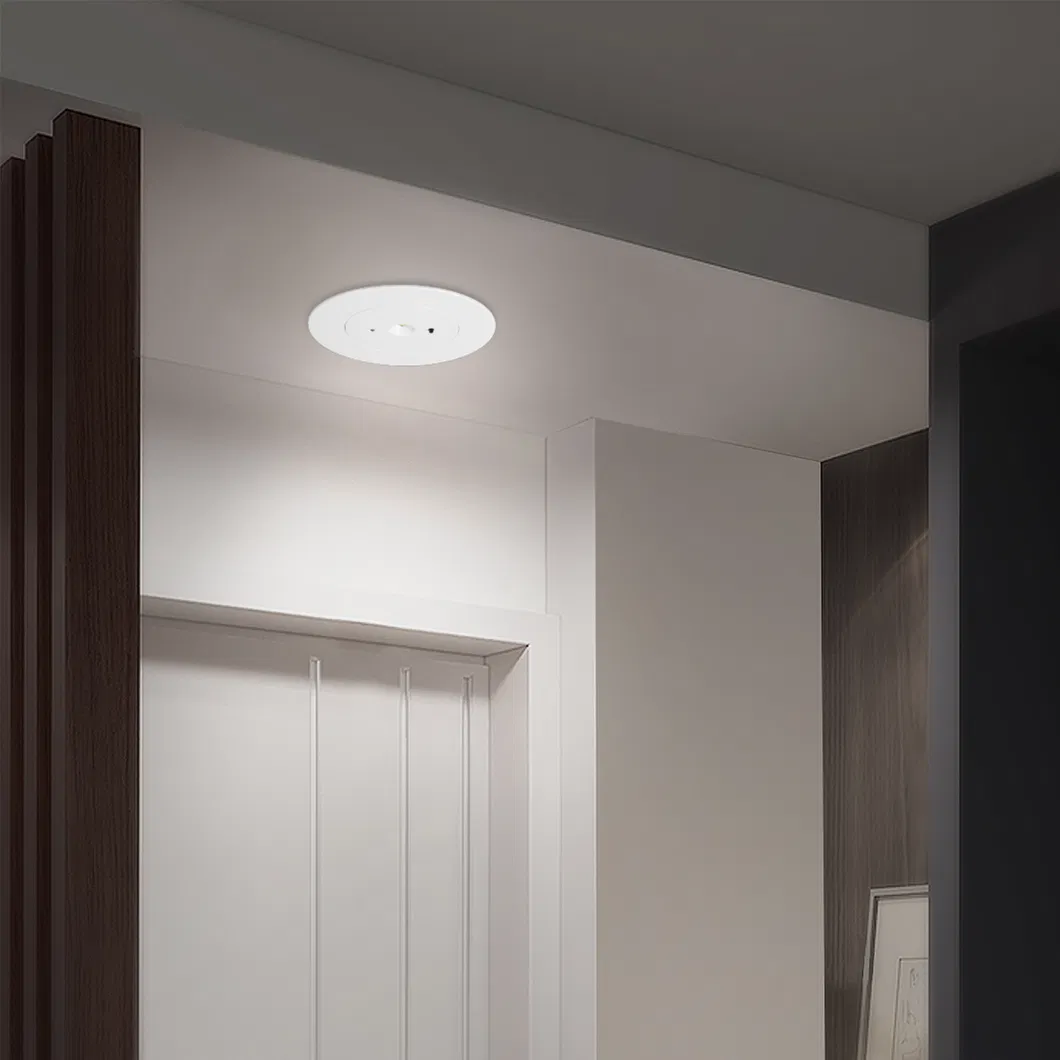

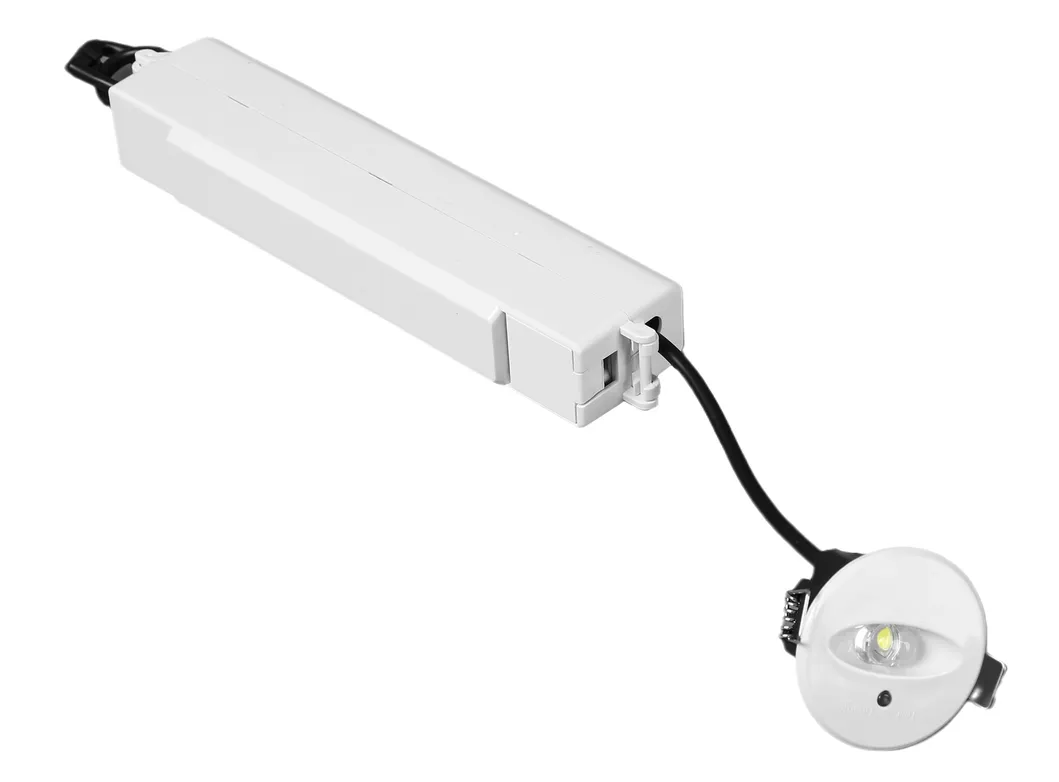

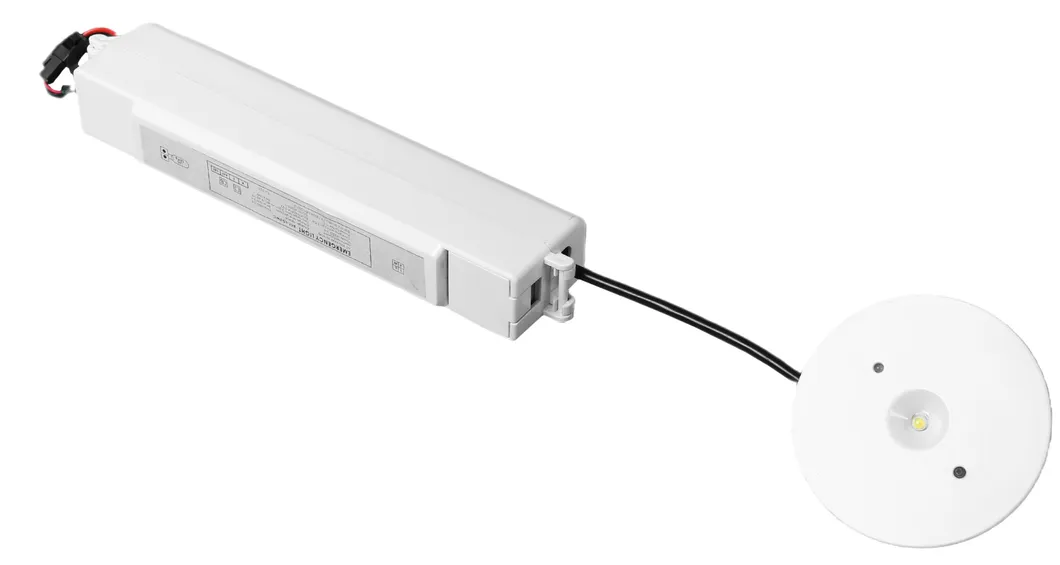

LED Emergency Light 1 LED Emergency Light 2 LED Emergency Light 3

Relevant Standards

EN 60598-1EN 61000-3-2IEC 60598-1IEC61000-3-2
EN 60598-2-22EN 61000-3-3IEC 60598-2-22IEC 61000-3-3
EN 61347-1EN 62471IEC 61347-1IEC 62471

Product Parameter

Model No.:LEK02-3NCBattery:Ni-Cd, 3.6V 2000mAh
LED Chips:CREE XT-ELuminous Flux:150lm
Power:3WInput Voltage:AC220-240V~50/60Hz
Charge Time:24HoursEmergency Duration:3Hours

Dimension & Installation

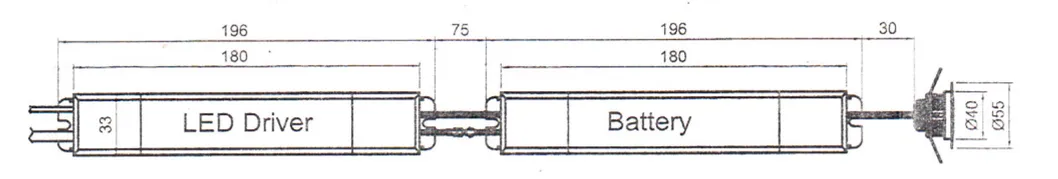

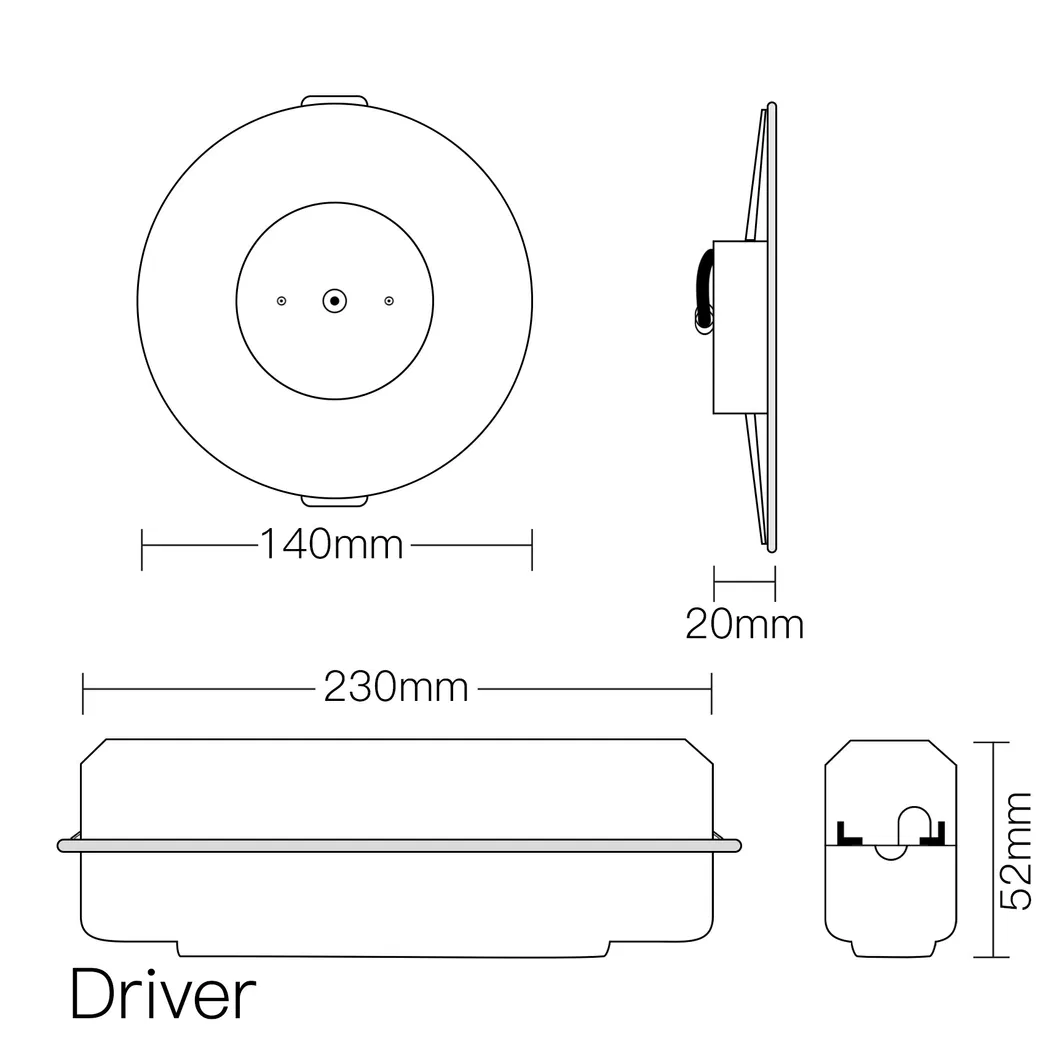

Dimension Structure

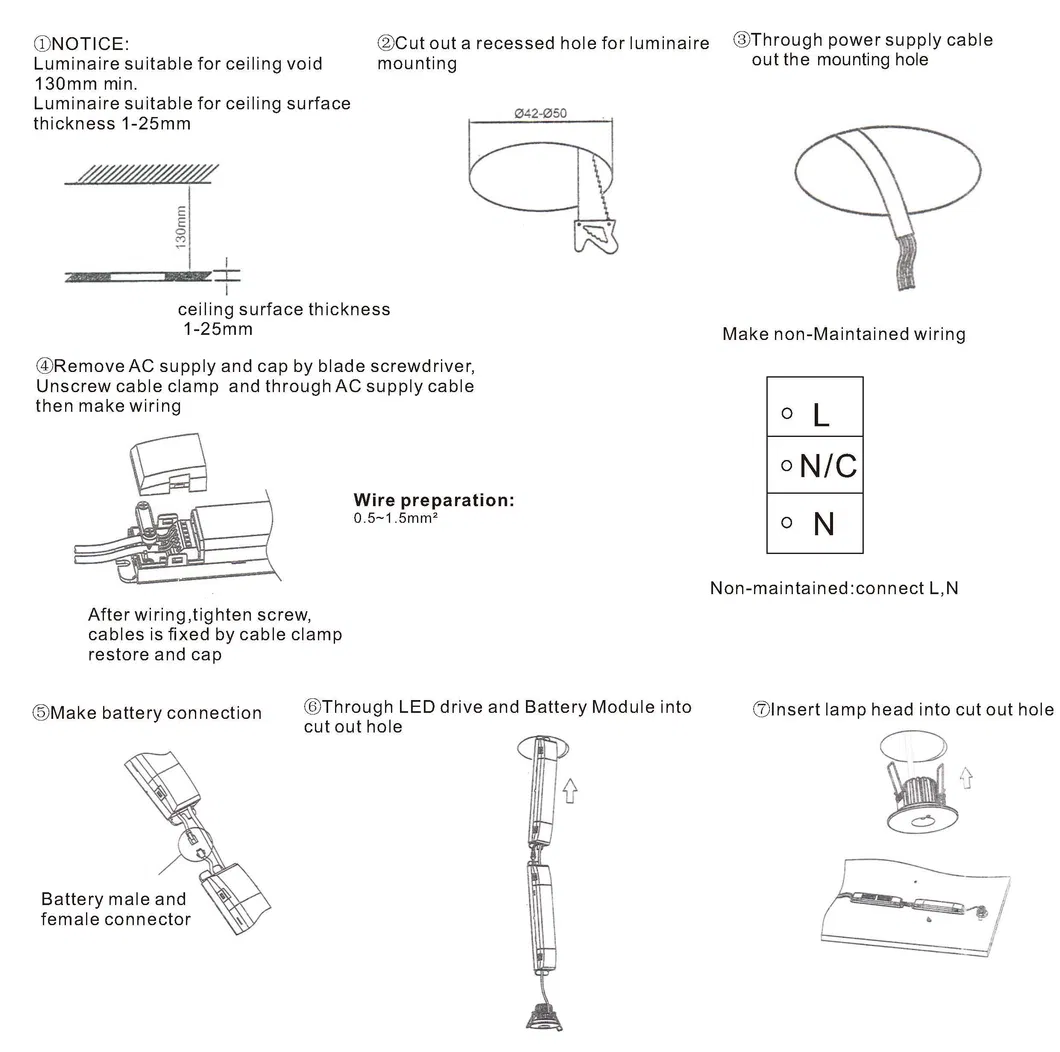

Installation Diagram Wire Preparation: 0.5~1.5mm²
Installation

AUTO Test System

∷ Commissioning test: Connection of the mains supply initiates commissioning; battery charges for 24 hours. Interruption resets the counter.

∷ Function test: A 5-second functional test is carried out at 1-week intervals.

∷ Duration test: A full rated duration test is carried out at 13-week intervals.

LED IndicationStatusCommentary
Permanent greenEverything works correctly-
One flash / 4s pauseBattery failureBattery not connected
Two flashes / 4s pauseBattery failureShort circuit or low voltage
Three flashes / 4s pauseLoad failureLED failure
Green and Red offDC modeEmergency mode operation

Important Notes

  • Must be installed by a registered electrician according to local standards.
  • Ensure mains supply is isolated before installation.
  • The light source is not replaceable; replace the whole luminaire at end of life.
  • Replace the whole luminaire if it fails to meet rated duration after recharge.
Application 1 Application 2

Frequently Asked Questions

What is the emergency duration of this light?
The LEK02-3NC provides a rated emergency backup duration of 3 hours.
What type of battery does it use and how long is the charging time?
It uses a Ni-Cd 3.6V 2000mAh battery, which requires 24 hours for a full charge.
Is the LED light source replaceable?
No, the light source is not replaceable. When the LED reaches its end of life, the entire luminaire should be replaced.
What does a flashing red LED indicator mean?
Flashing indicators signify battery or load failures, such as a disconnected battery or a faulty LED module.
What are the installation requirements for this product?
It is a recessed installation requiring a 40mm cutout hole and should be installed by a registered electrician.
What is the IP rating of this emergency light?
The IP rating is IP20, making it suitable for indoor installation where protection against dust and moisture is not required.
