Product Description

i Basic Information
Model NO.Alu-TW5075D1
ShapeSurface Mount
ApplicationDoor & Window, Heat Sink, Decoration
Surface TreatmentAnodized or Powder Coated
InstallationPendant/Suspension
Dimension50(W)X75(H)mm
AccessoriesEndcap, Mounting Clip
CoverPMMA/PC, Opal/Semi-Clear/Milky/Clear
Material6063 T3-T8 Aluminium Alloy
PCB Width InsideUp to 20mm Wide
P Product Description

Our suspended linear pendant lighting extrusion range offers a versatile, modern and effective lighting solution for many different applications. The Linear LED lighting effect is ideal for office desks, reception areas, boardroom tables, and more. These solutions are energy efficient and eco-friendly. The aluminum profiles are anodized and can be powder coated to achieve your desired custom color.

Click-in Tray: Allows for easy installation and maintenance.

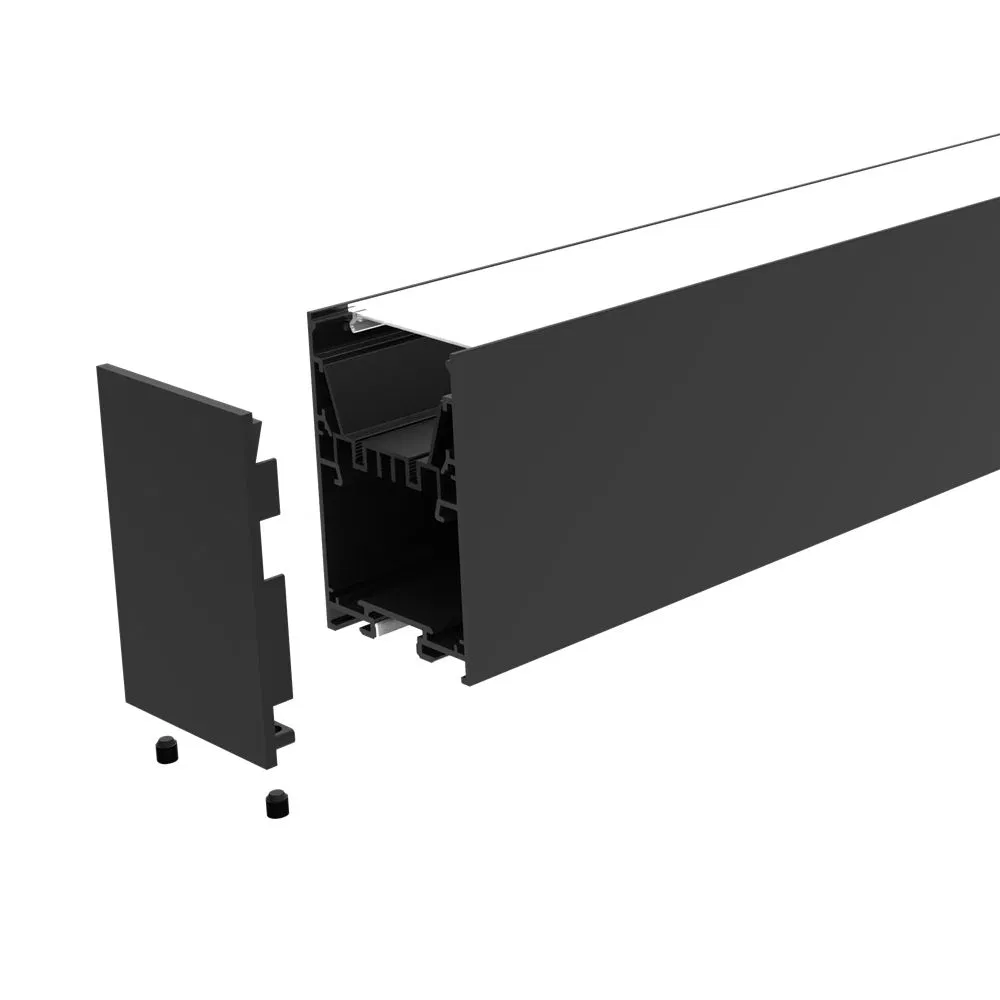

CNC Endcap: Stylish, screwless aluminum endcap for a leak-proof finish.
PMMA Diffuser: High-quality diffuser for uniform and soft lighting output.
Integrated Power: Built-in linear power supply compatibility for a slim aesthetic.

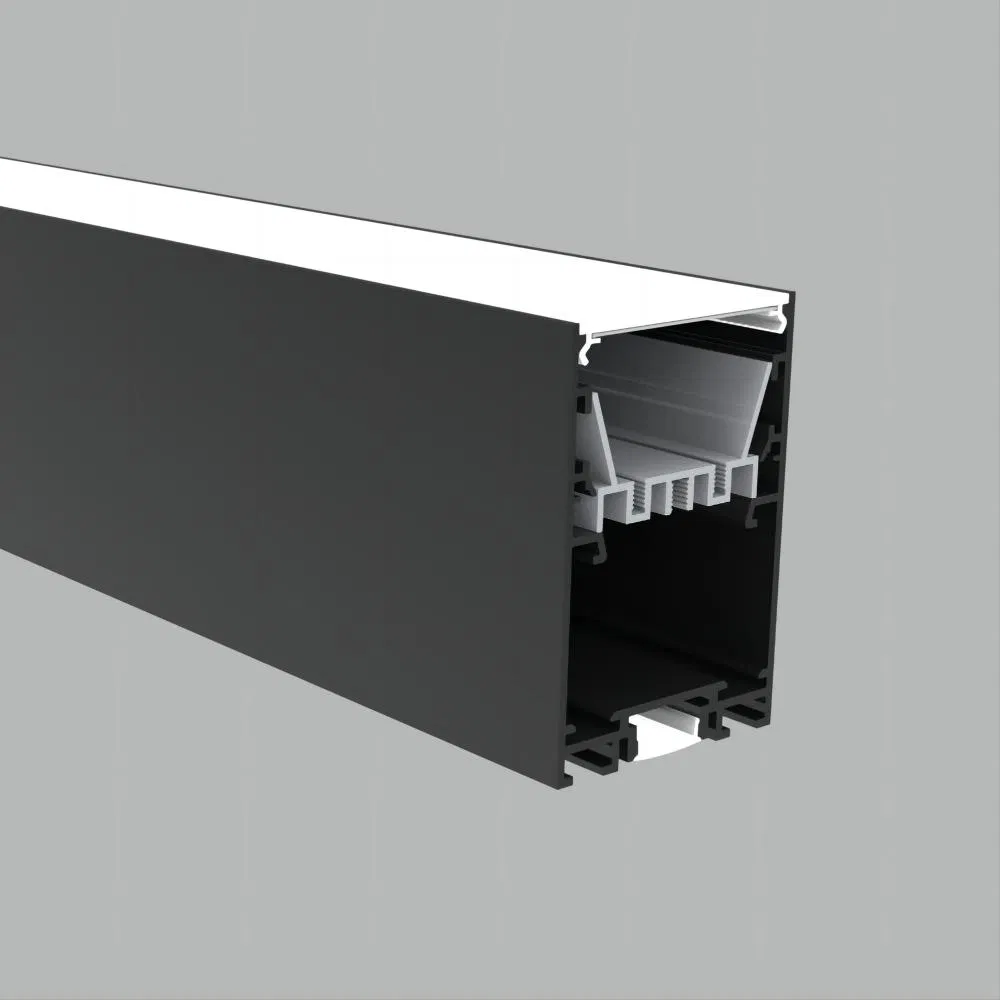

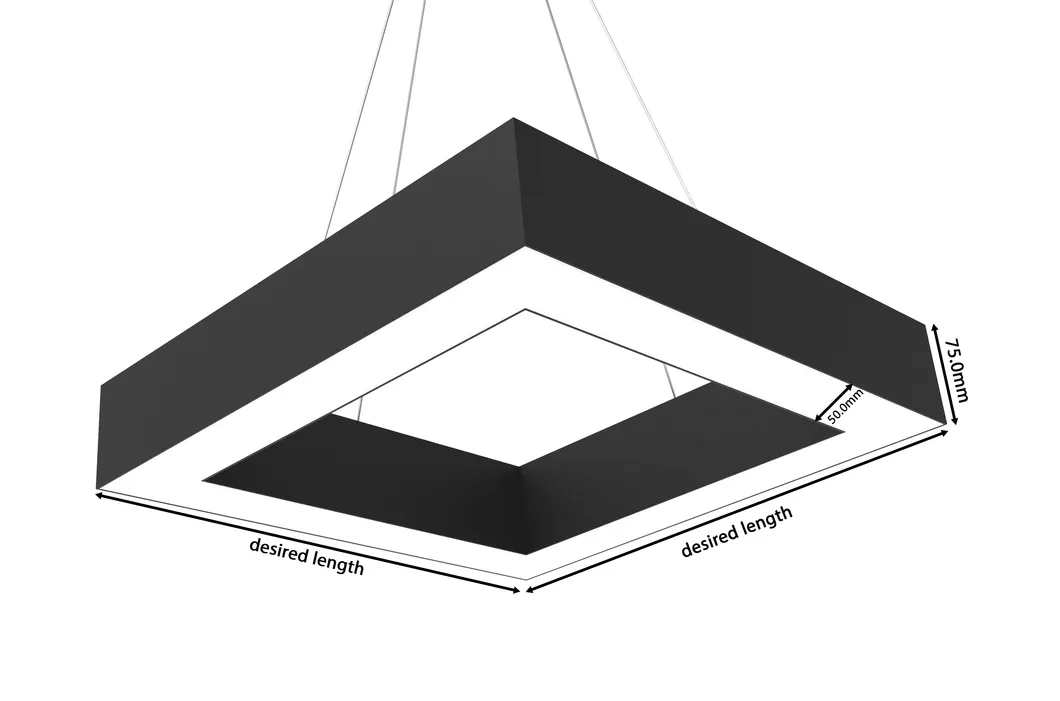

LED Profile View 1

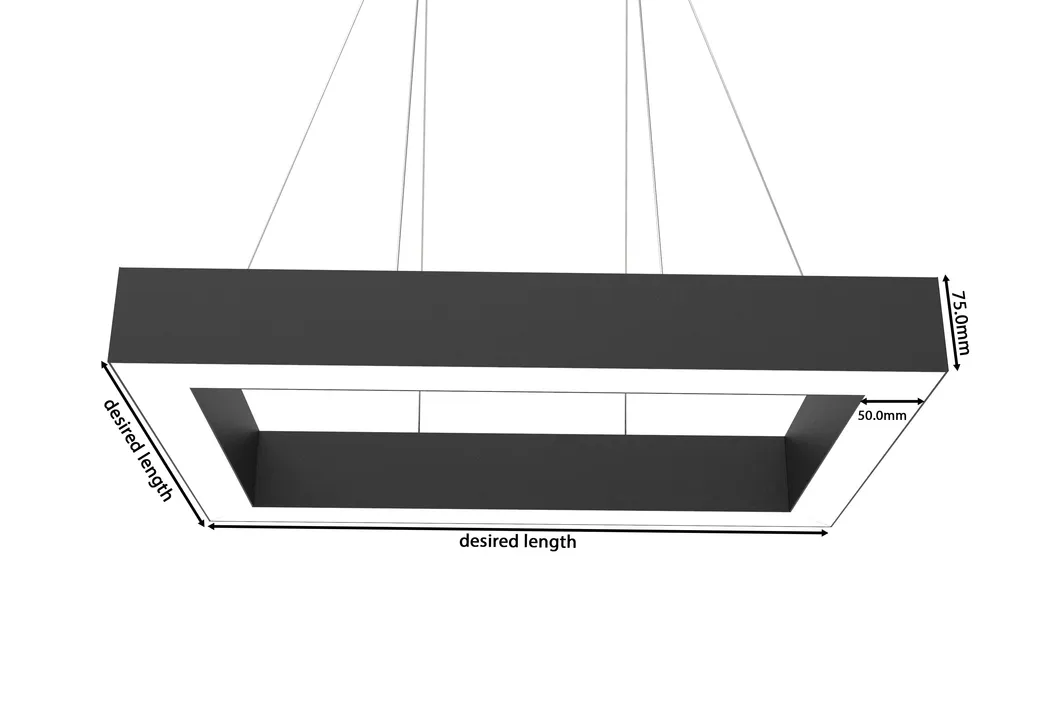

LED Profile View 2

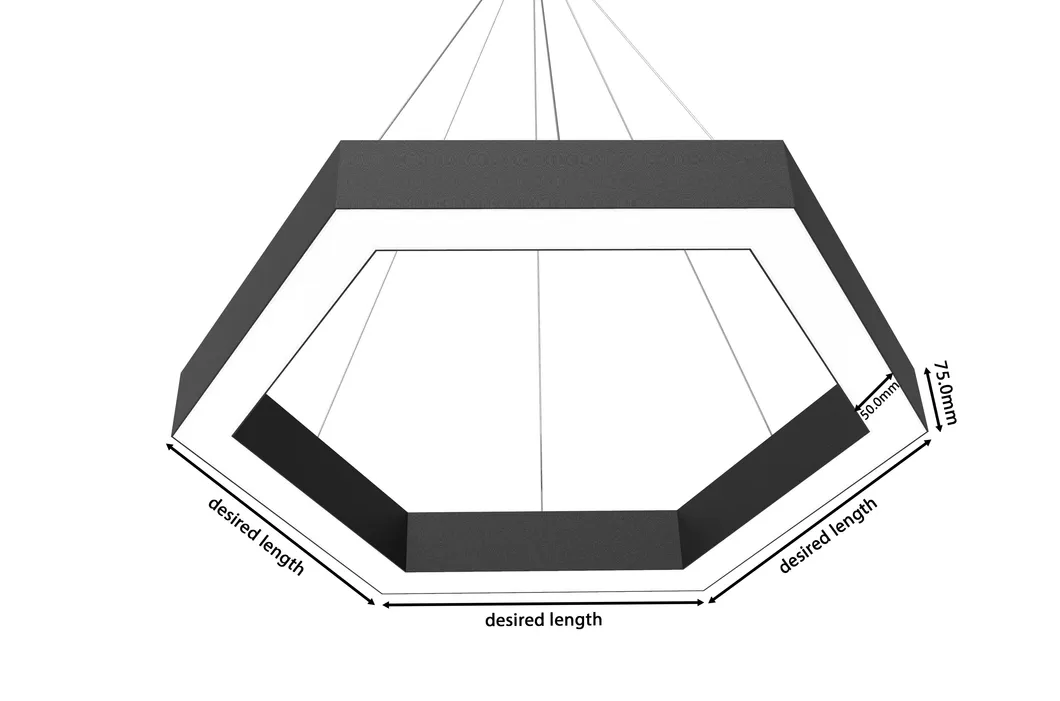

LED Profile View 3
S Specifications & Parameters
Product NameLED aluminum profile with screwless CNC end cap, removable gear tray
Material6063 Aluminum Alloy
Length Options0.5 ~ 6 meters
Color FinishSilver, White, Black, or Custom-made
Diffuser OptionsTransparent / Diffuser / Opal
Max Strip Width20mm

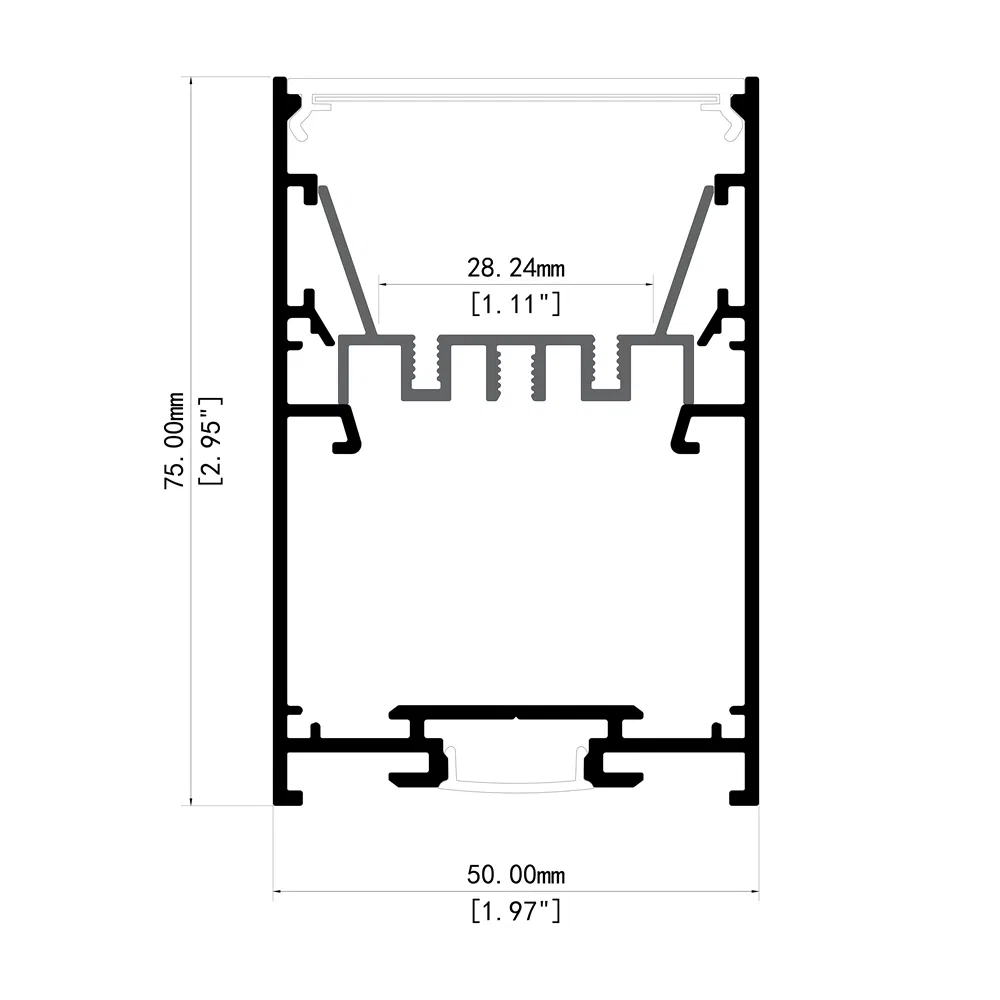

Product Dimension Chart
G Installation & Diffuser Options

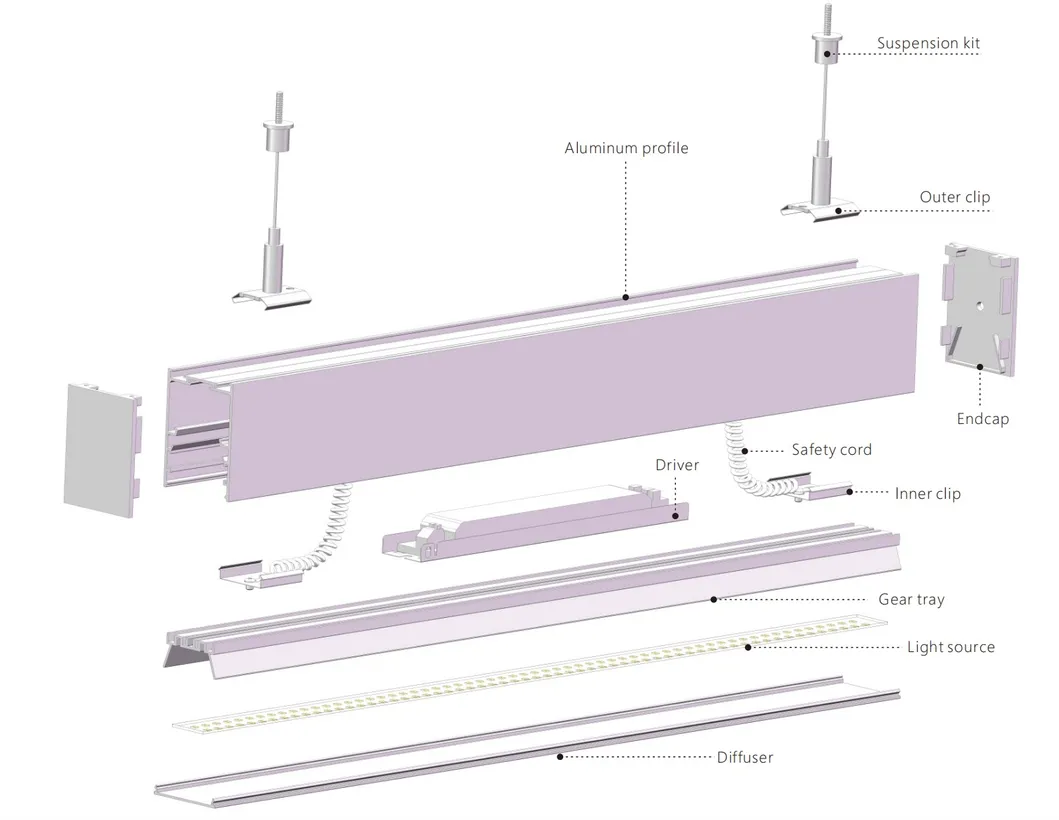

Installation 1

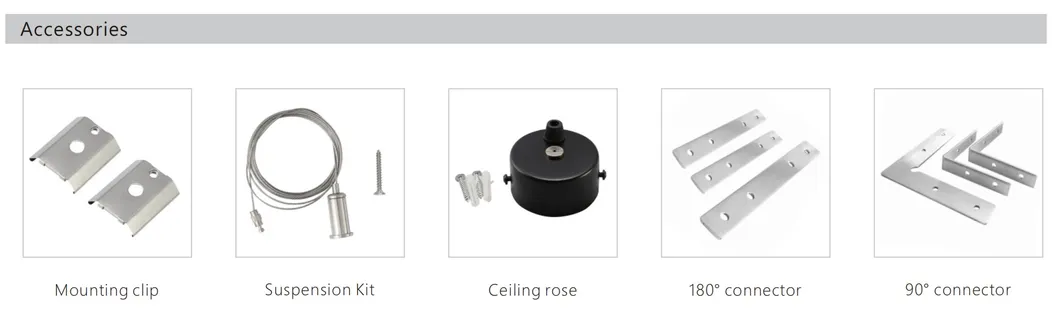

Installation 2

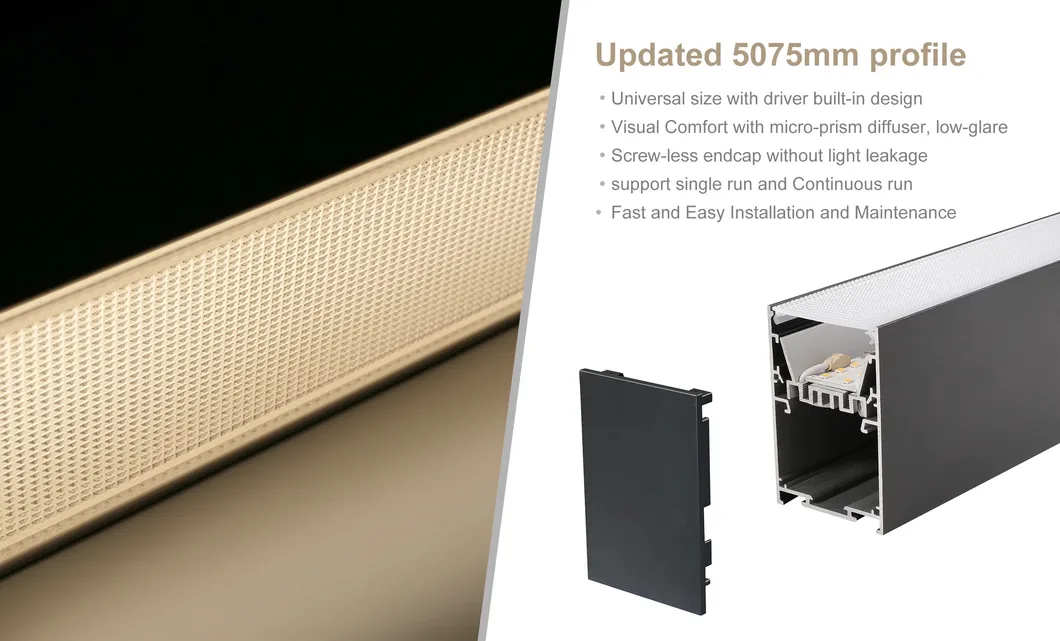

Installation 3

Available Diffuser Types:

Diffuser Options
M Material Advantages
  • Heat Sink: 6063-T5 aerial aluminum with excellent corrosion resistance and thermal conductivity.
  • PC Cover: High-grade polycarbonate with UV resistance, flame retardant properties, and excellent electrical insulation.
  • End Caps: CNC Machined Aluminum or Anti-aging ABS options.

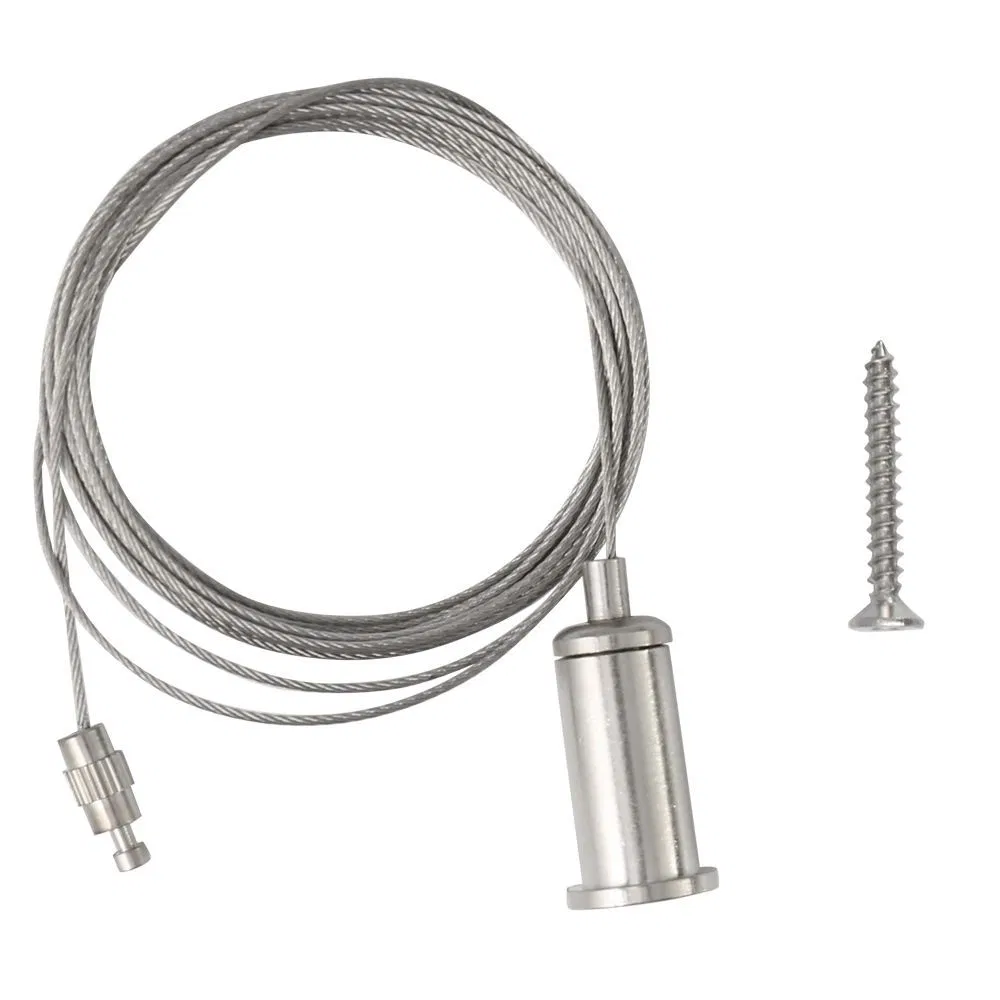

  • Mounting: Stainless steel (304) clips and suspended cables (standard 1m).

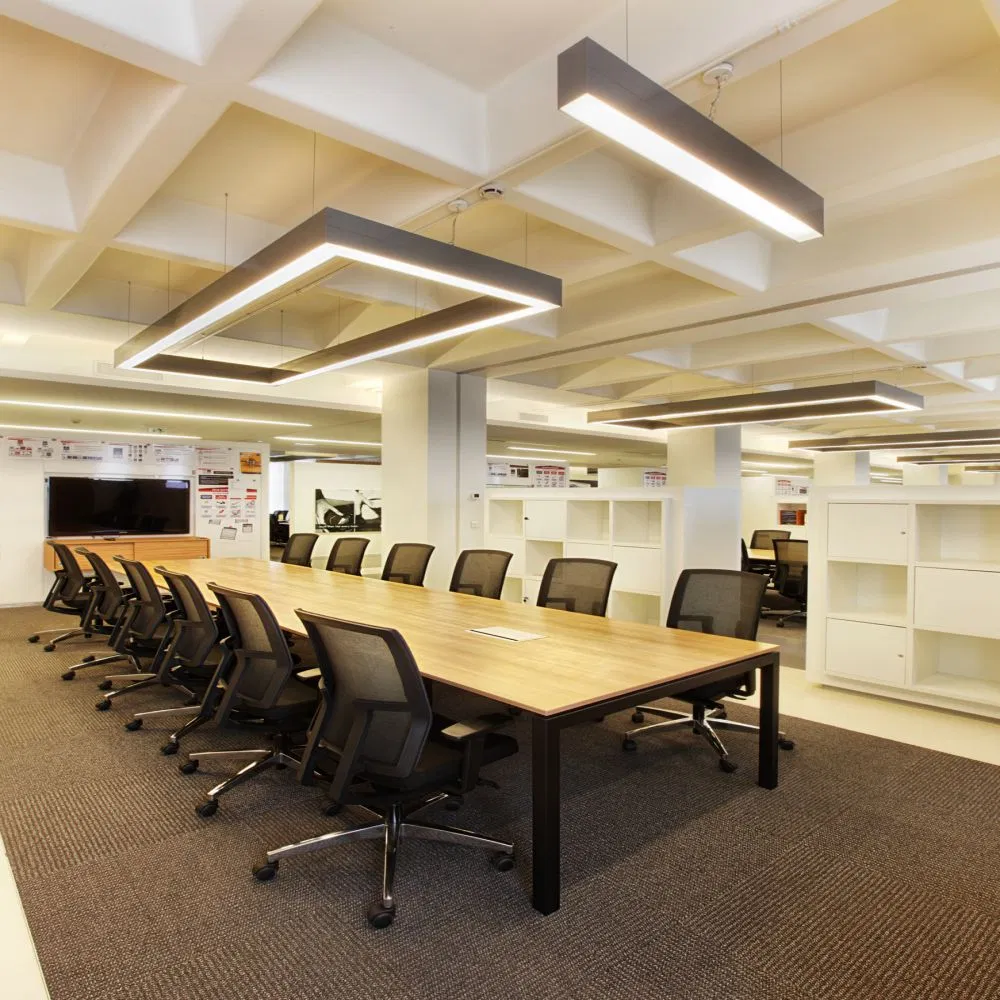

Material Detail 1

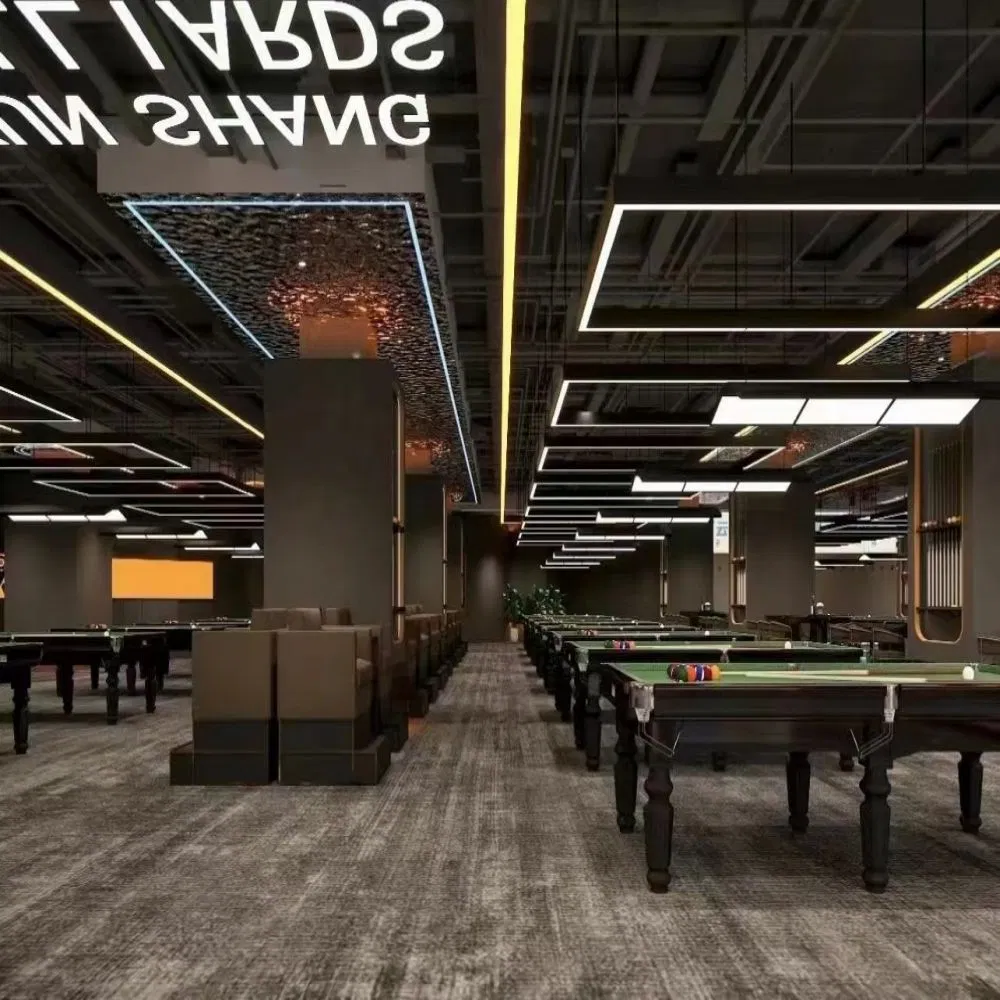

Material Detail 2

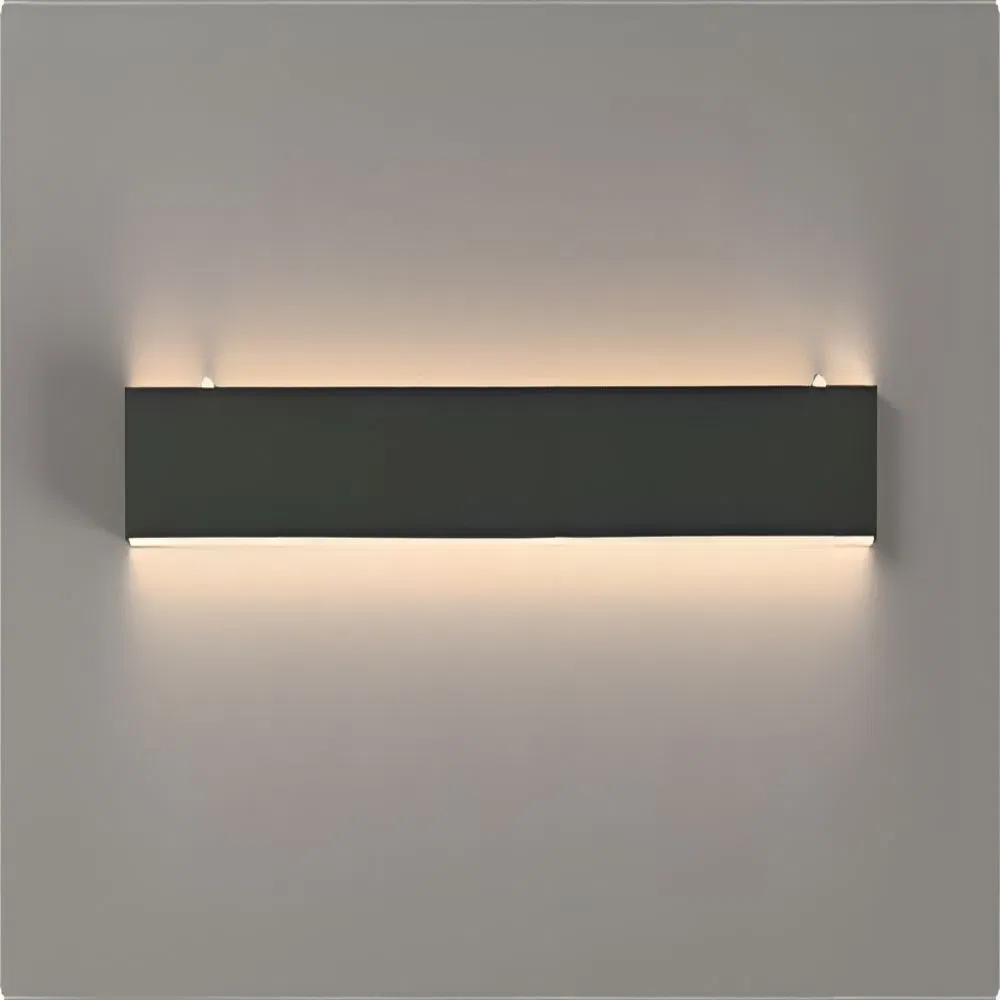

Material Detail 3
? Frequently Asked Questions
What is the standard length in stock?
We typically stock 2-meter and 3-meter lengths for immediate shipping.
Can the LED profiles be cut to custom lengths?
Yes, we have in-house cutting facilities to prepare any specific length requirements for your project.
What is the maximum length available for shipping?
The maximum length for air shipment is 3 meters, while sea shipment can accommodate lengths up to 5 meters.
What materials are used for the diffusers?
Our diffusers are made from high-quality PC (Polycarbonate) or PMMA (Acrylic) materials.
Are different color finishes available?
Yes, we offer various finishes including anodizing and powder coating in silver, white, black, and custom colors.
What is the typical delivery lead time?
Delivery usually takes 5-15 working days depending on the total order volume.
