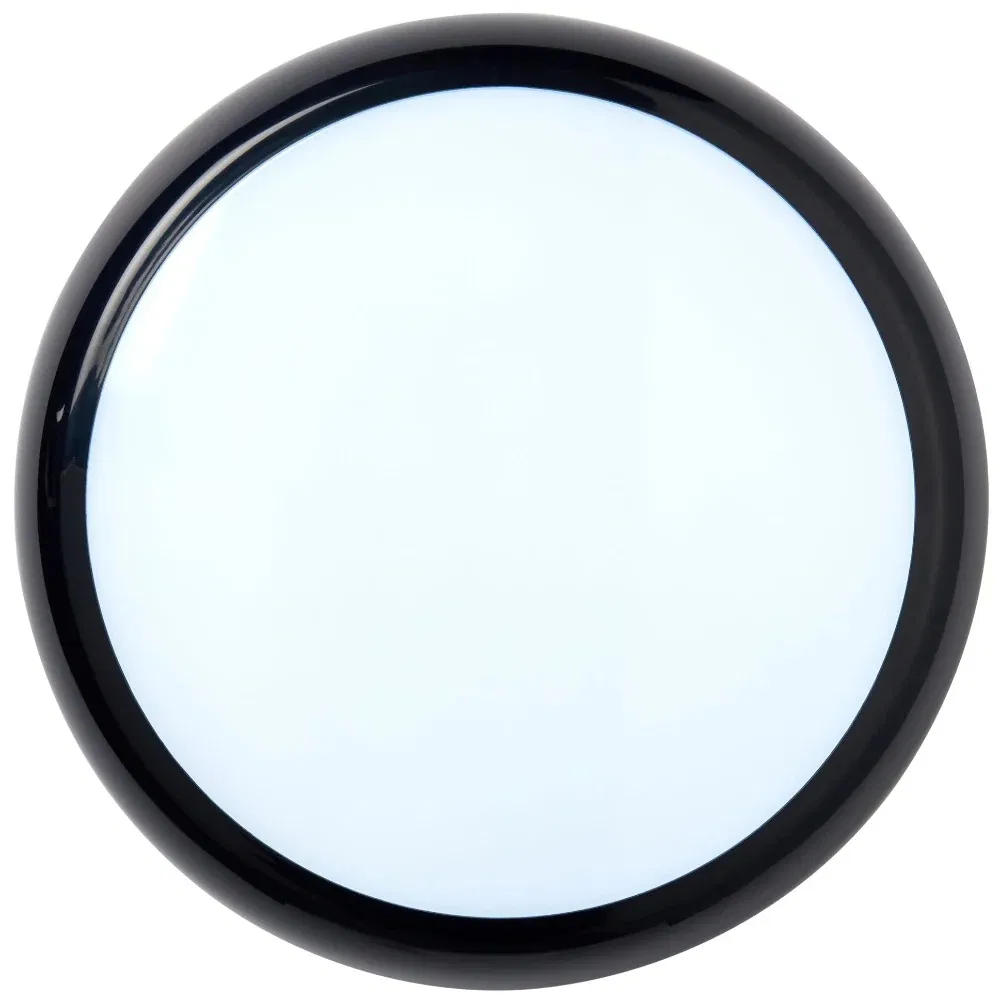

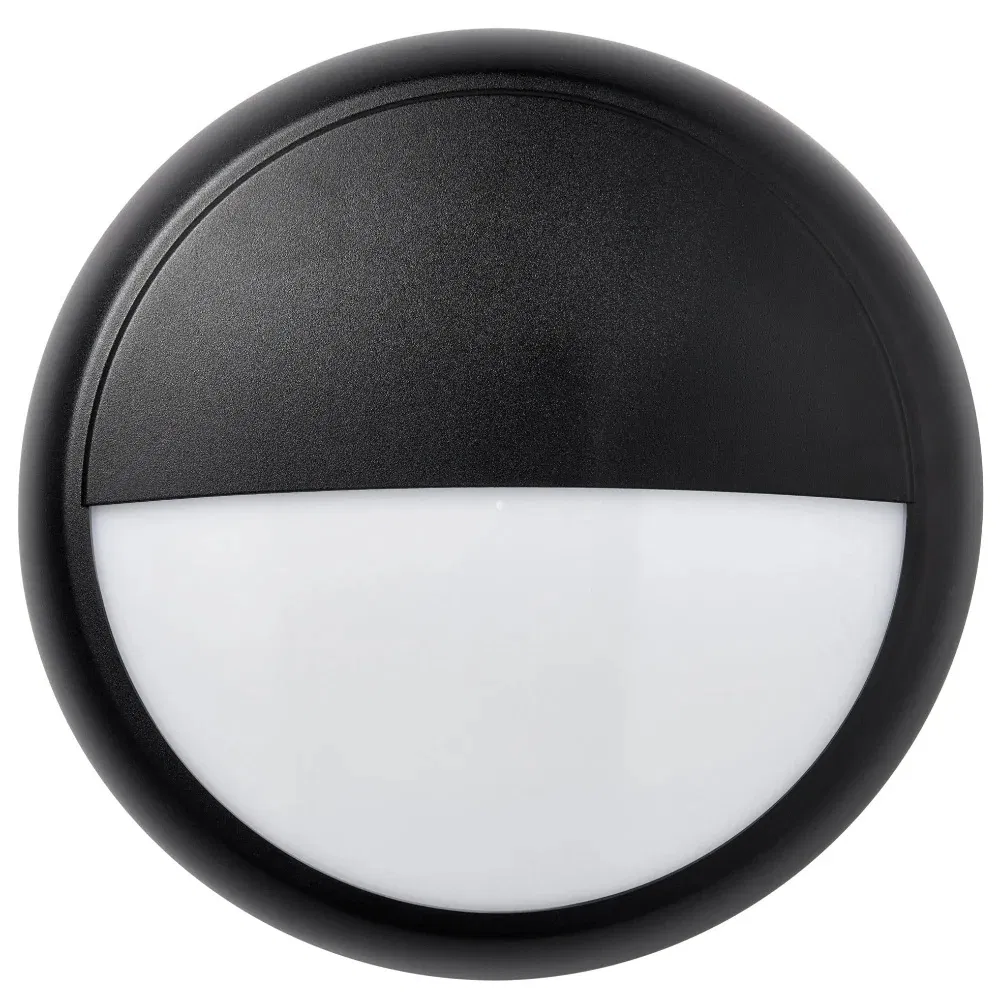

LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
1 / 5
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08
LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08

LED Wall Light Bulkhead Light Down Light Ceiling Light Surface Mounted Lamp 3 CCT with Sensor and Emergency Kitting IP66 Ik08

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Specifications
Style
European
Shape
Round
Usage
Room, Study, Restaurant, Aisle, living room, balcony, TOILET, Kitchen, Conference Room
IP Rating
IP66
IK Rating
IK10
Install Style
Surface Mounted
Certification
CCC, CE, CQC, C-tick, EMC, ETL, FDA, GS, LVD, REACH, RoHS, SAA
Input Voltage
220V-240V
LED Type
Epistar SMD2835
Wattage
10W, 15W, 22W
CCT
3000K, 4000K, 6000K
Beam Angle
110°
Lumens
100lm/W
Warranty
5 Years
Sensor
Microwave Sensor
Emergency Kit
3 Hours
Packaging & Delivery
Package Size
33.00cm * 23.00cm * 20.00cm
Gross Weight
1.000kg
Product Description
LED Wall Light Bulkhead Light / Ceiling Mounted Lamp
Features: Energy efficient LED, IP66 weatherproof rating, IK10 vandal proof rating, Tri-CCT selectable, available with sensor and emergency kitting.
Mechanical Features
  • Body Material: Polycarbonate
  • Diffuser Material: Polycarbonate
  • Fitting Colour: Black / White
  • Installation: Wall or Ceiling surface mounted
Electrical & Performance
  • Input voltage: 230Vac / 50Hz
  • System Efficiency: 100 lm/W
  • CRI: >80
  • LED Lifetime: >54,000 hrs
  • Working Temp: -20 to 45 °C

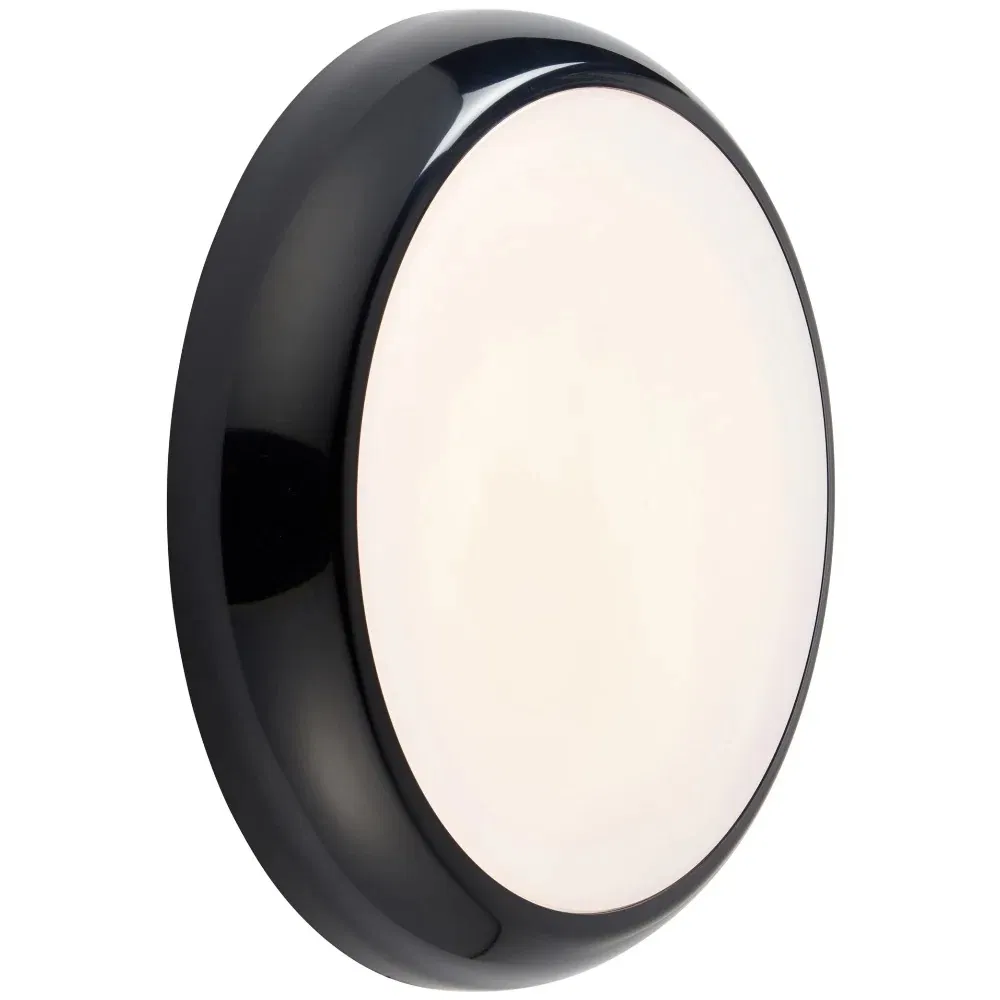

Bulkhead Light

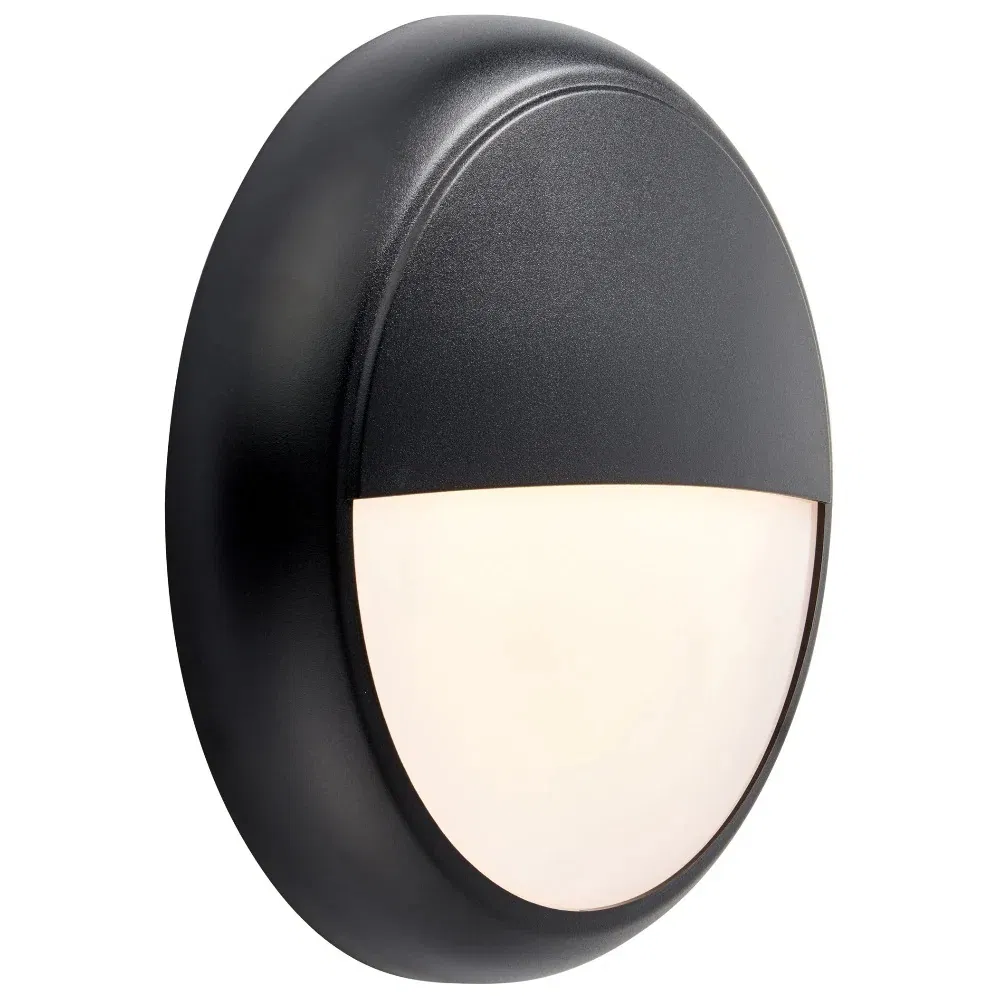

Bulkhead Light View
Front View
Design

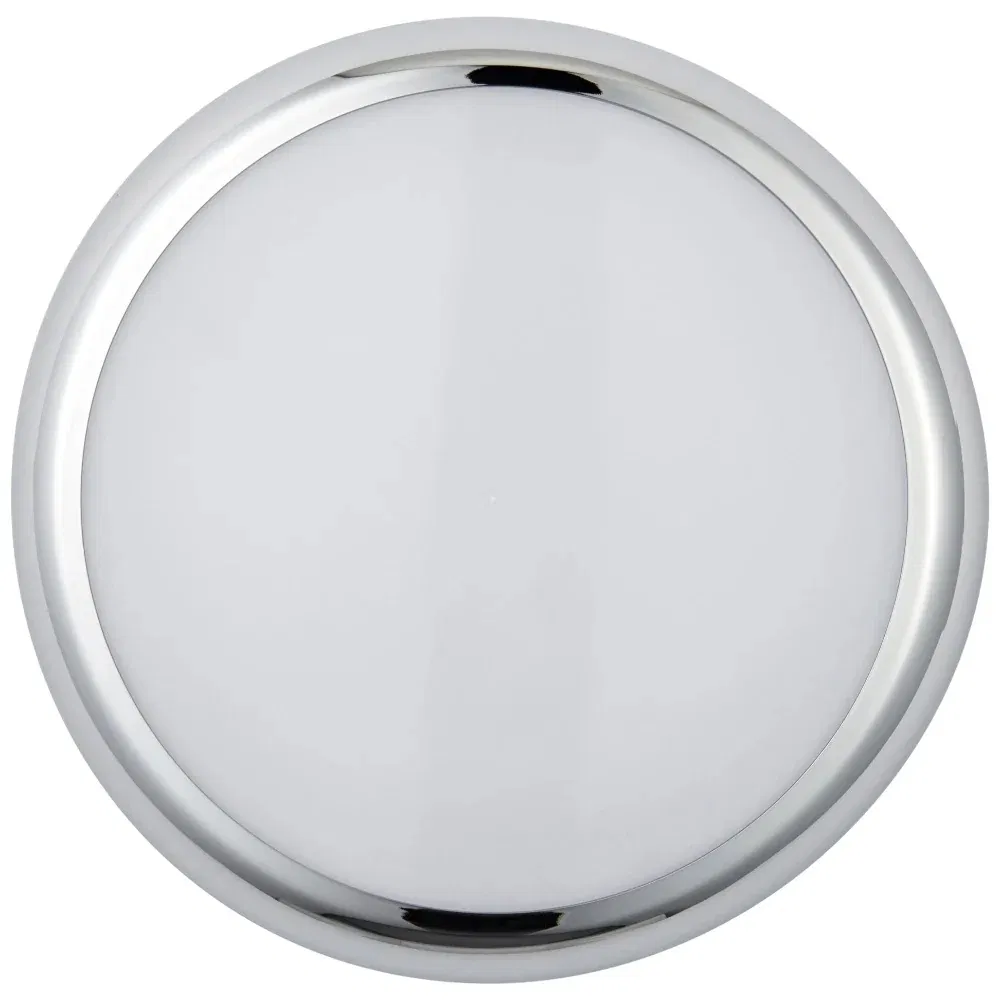

Performance

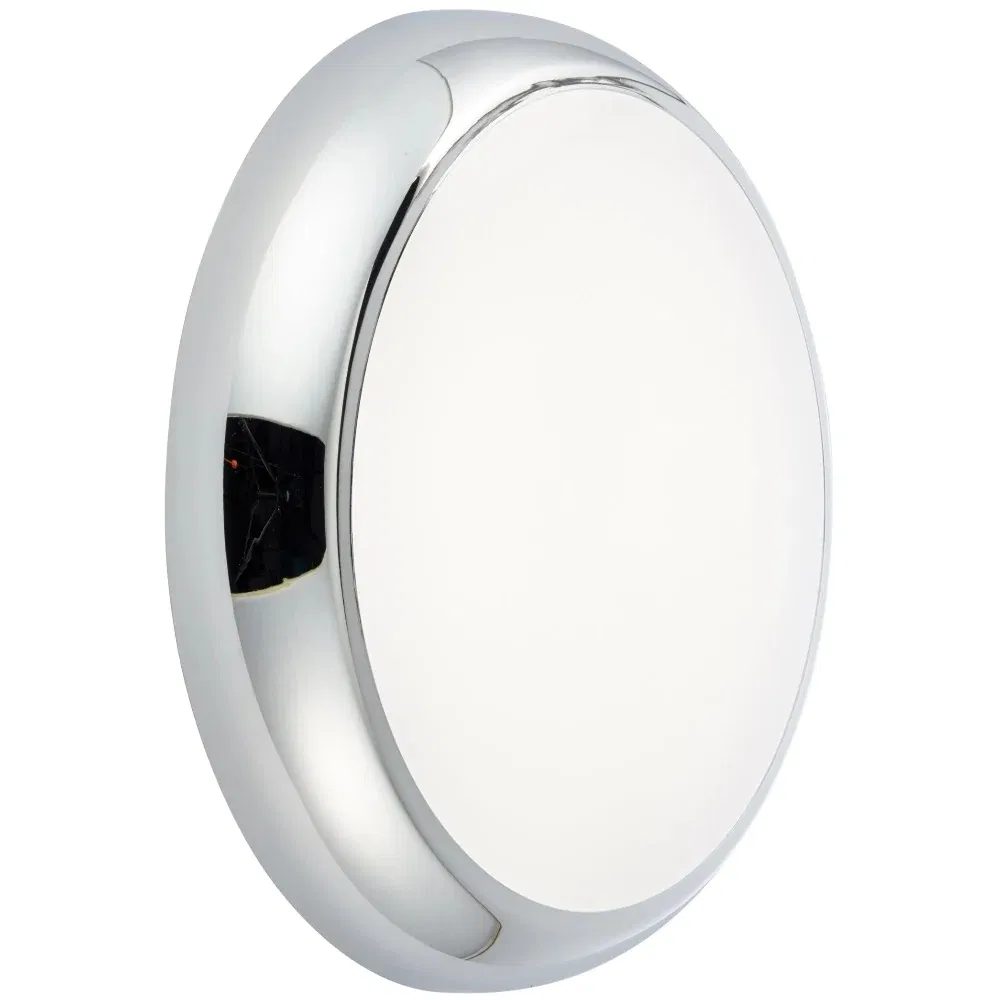

Brightness
Detailed Construction

1. Lighting body: High impact resistance PC or ABS material, non-deformable structure for vibration environments.

2. Lighting cover: Opal PC diffuser for uniform light distribution.

3. Applications: Indoor & outdoor areas, food industry, chemical plants, warehouses, tunnels, parking lots, and humid/corrosive environments.

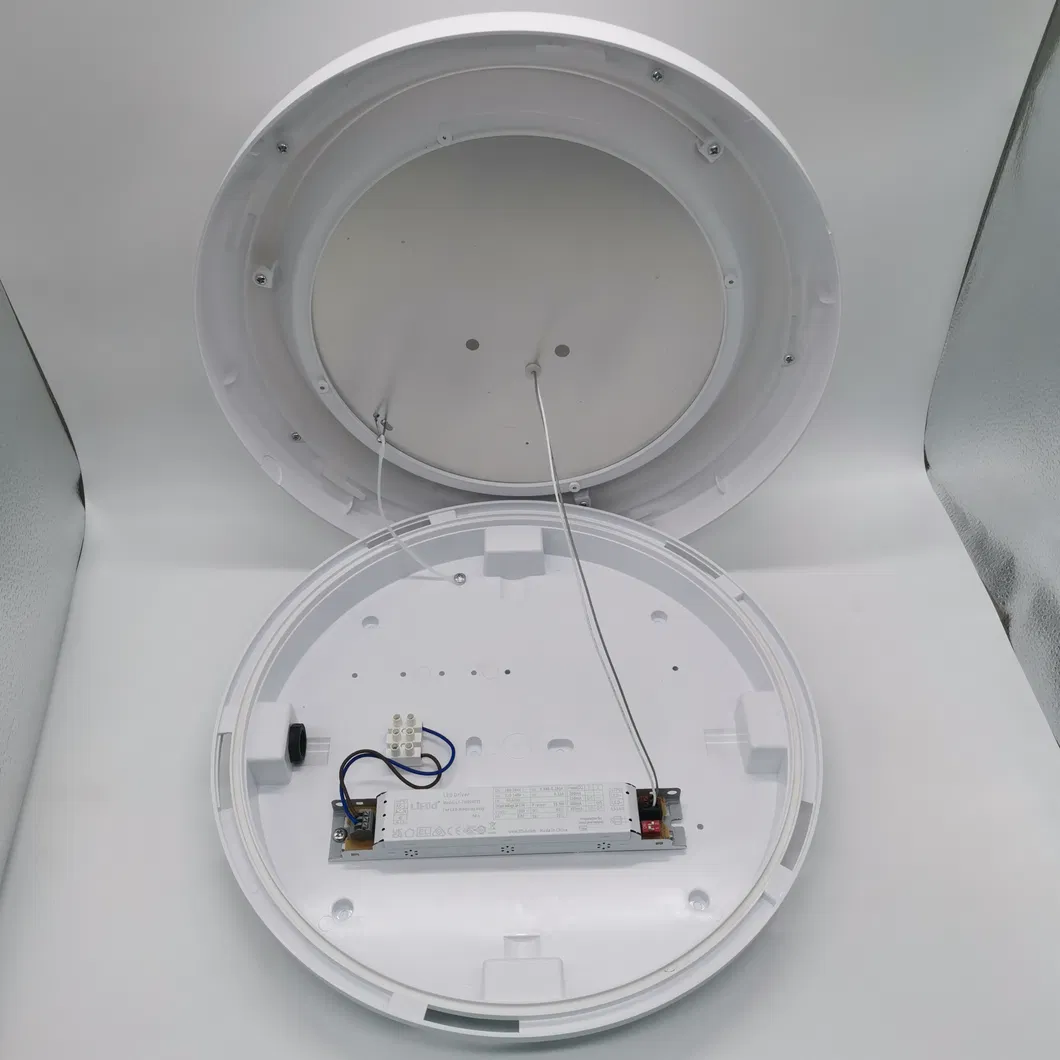

LED Board
Internal Driver

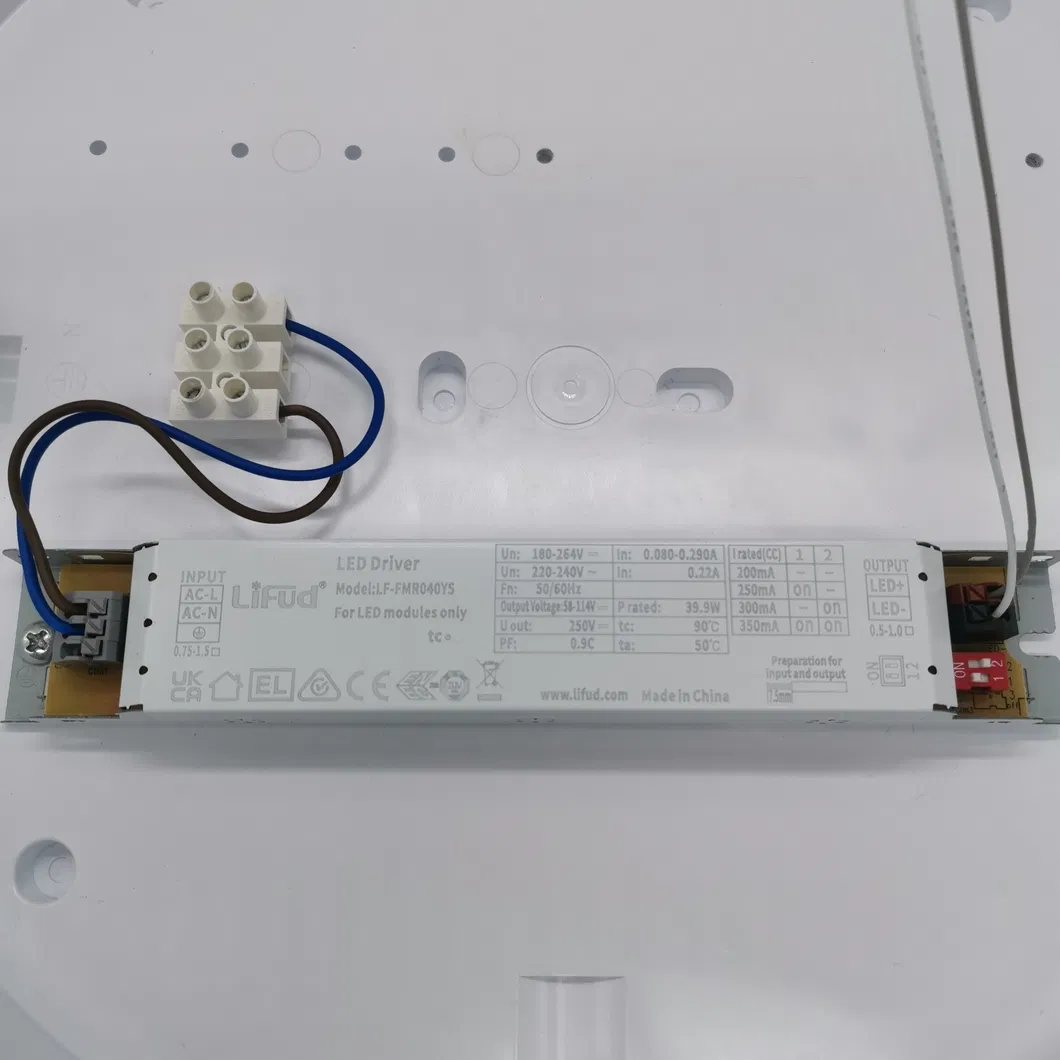

Inside View

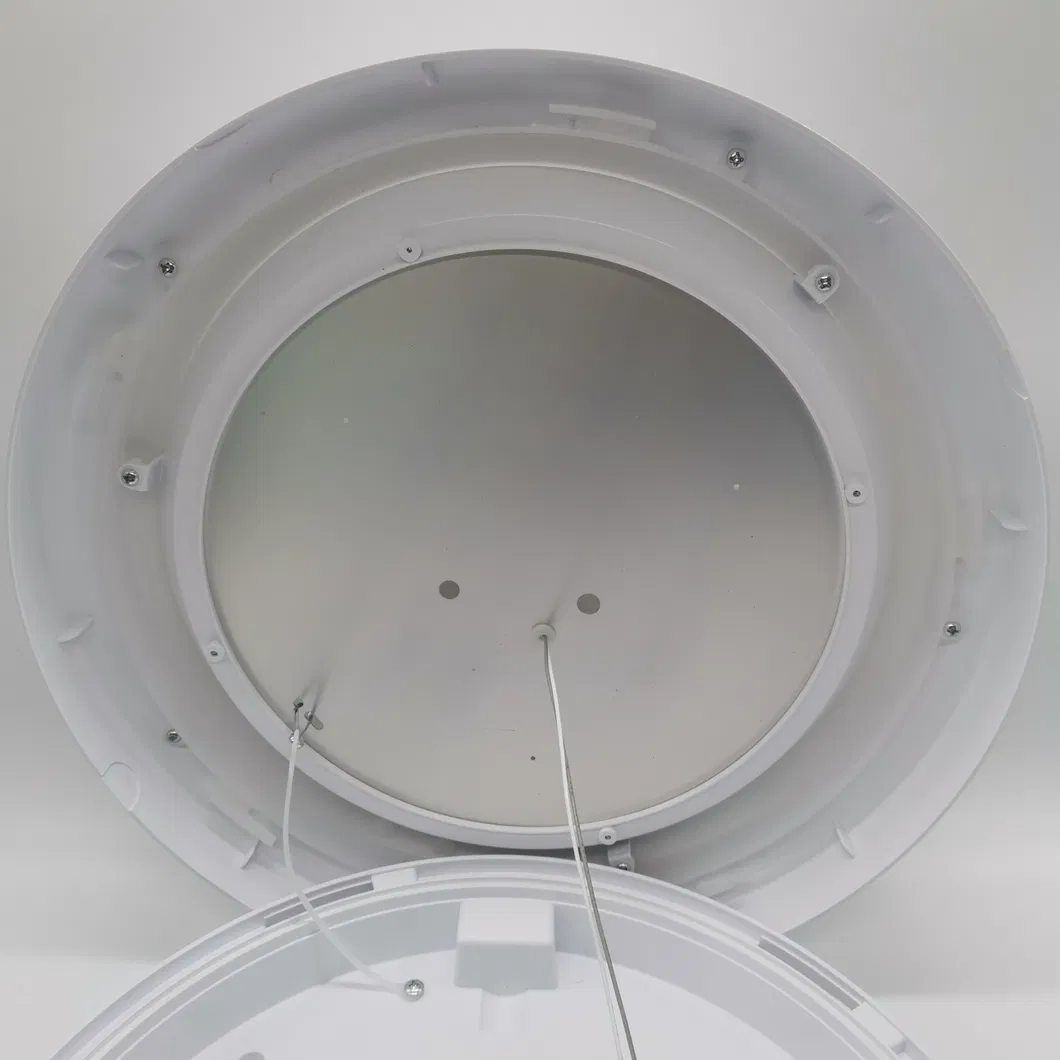

Housing

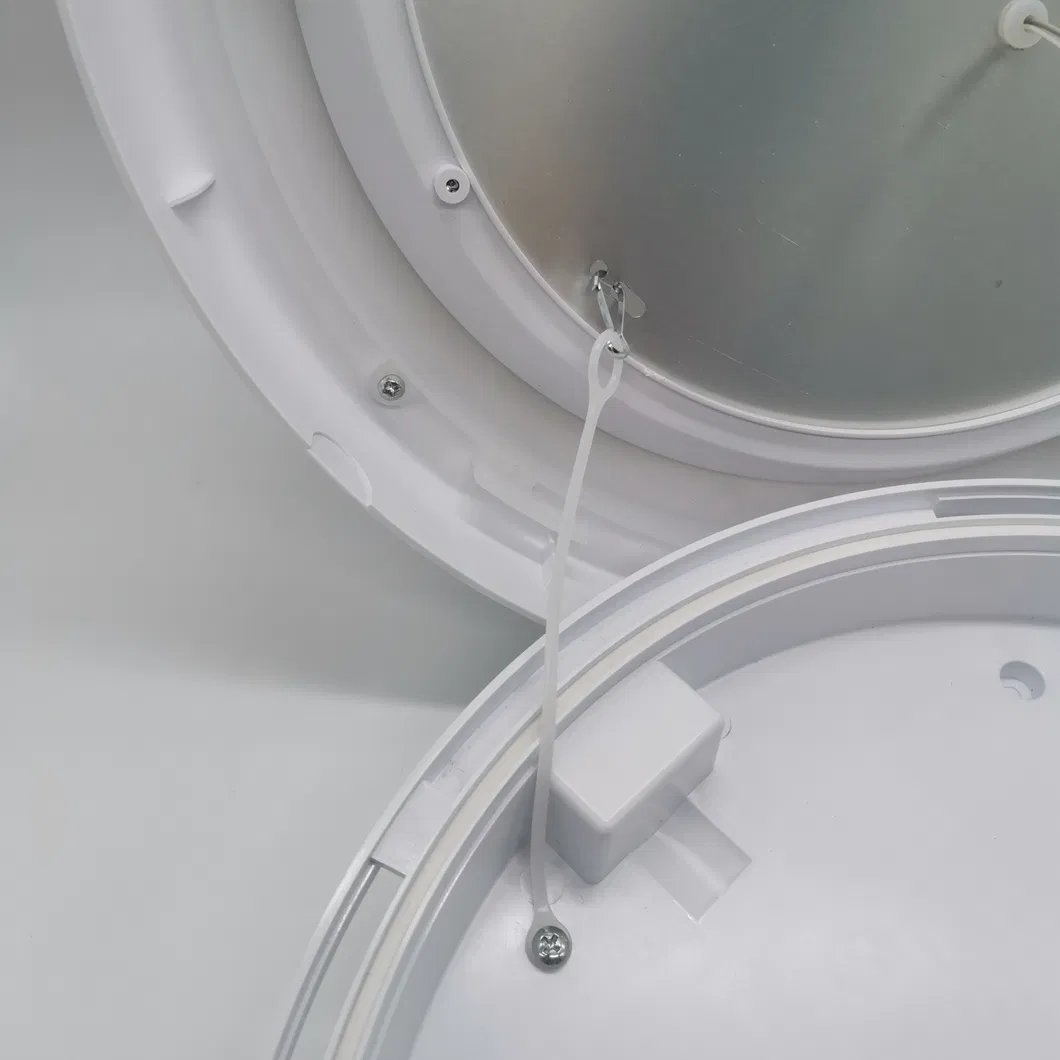

Hanging Clip

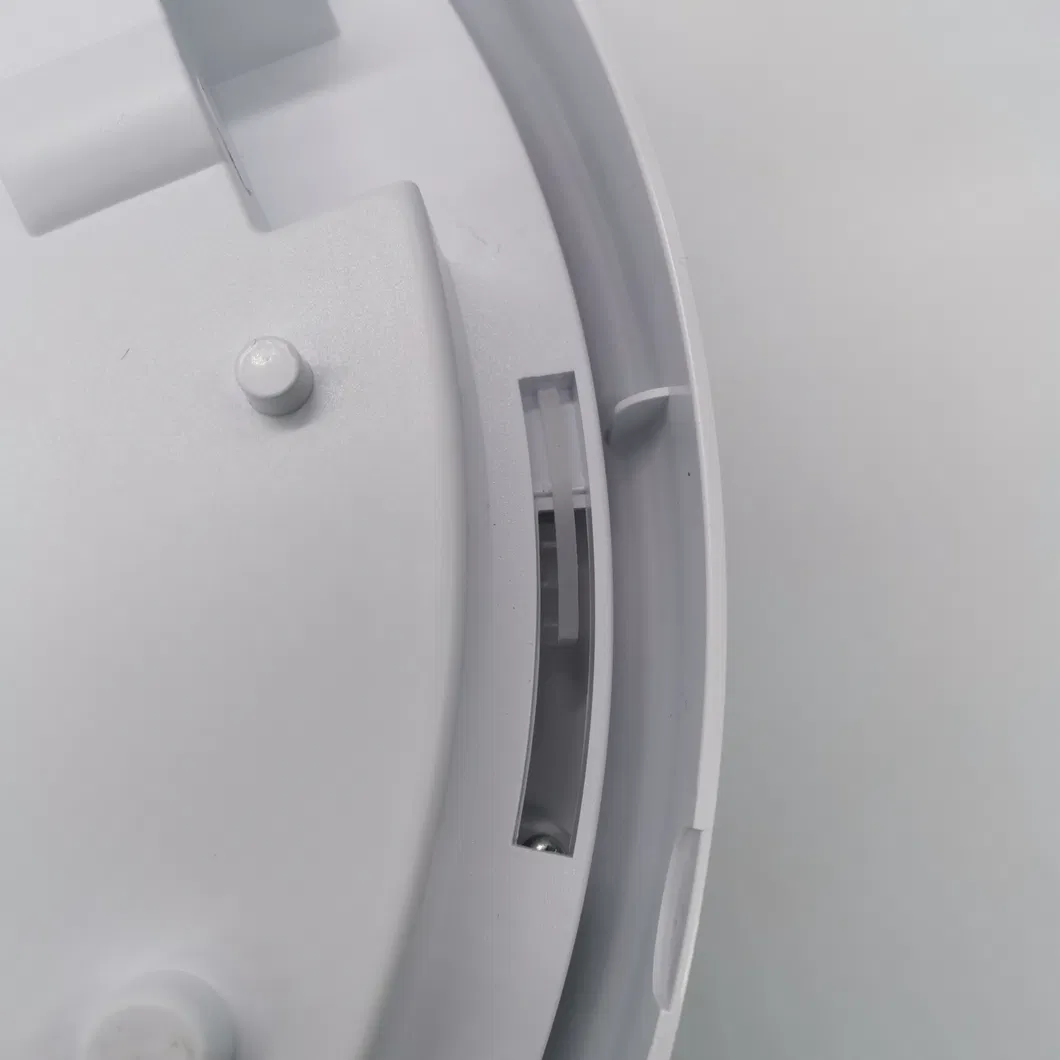

Clips Detail

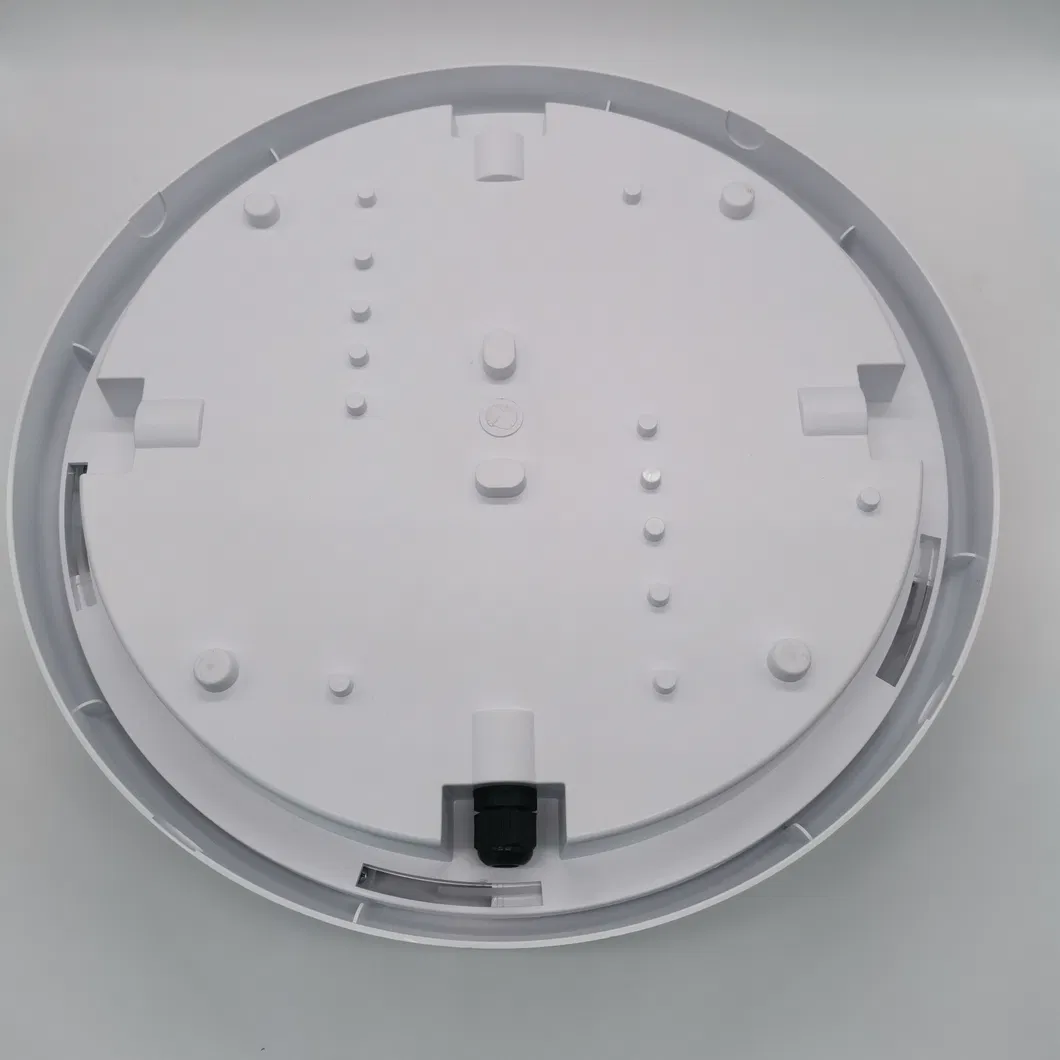

Back View

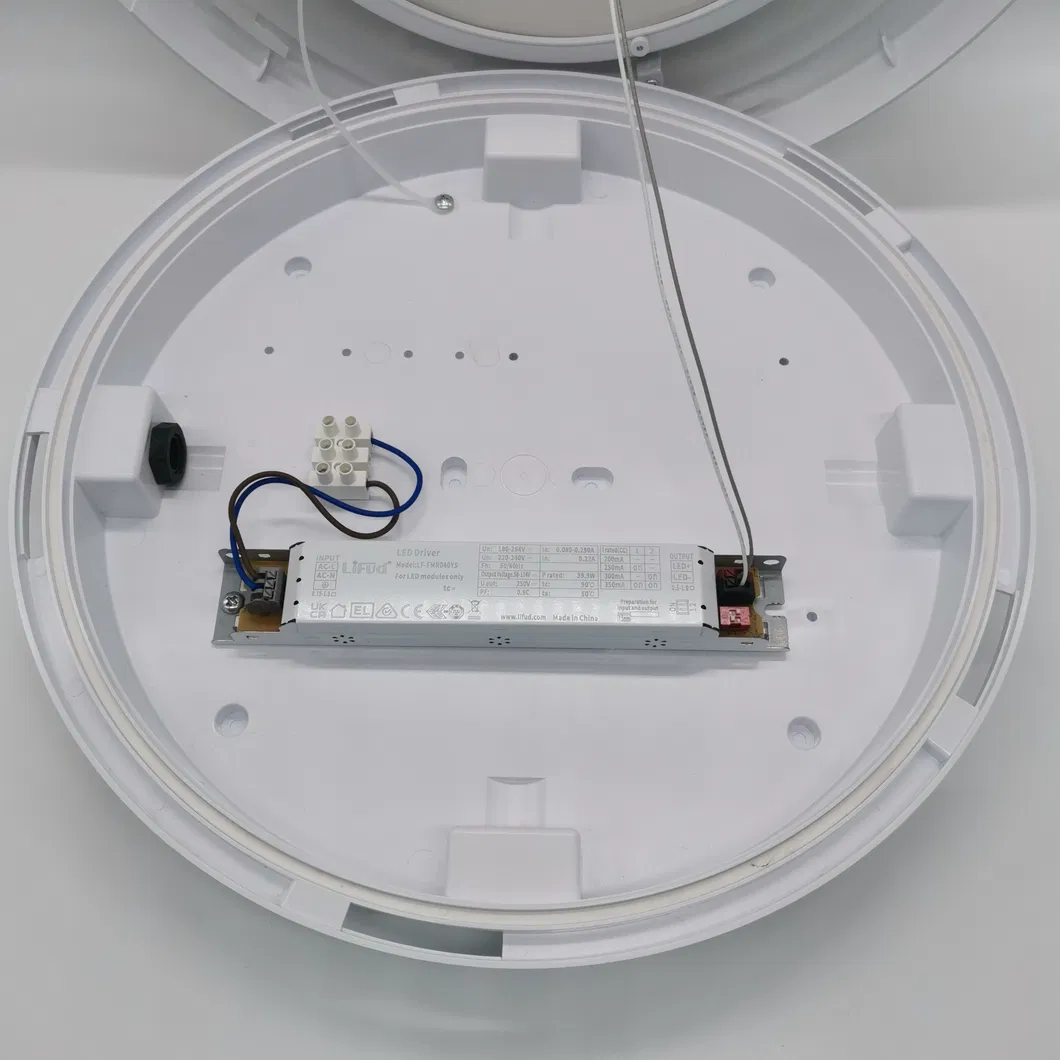

Seal Detail

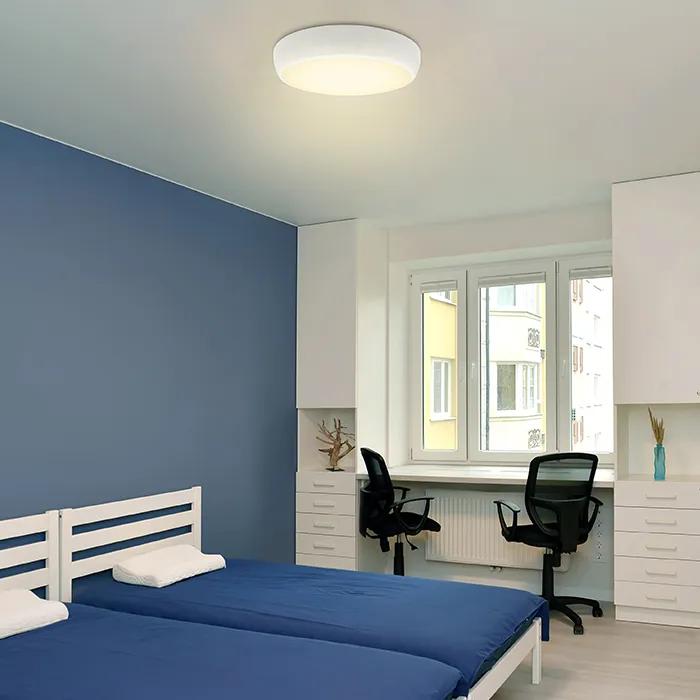

Usage Scenario
Power Specifications
Item No. Power Lumens IP Grade IK Grade Sensor CCT Options Size
SLCLC-12 12W 1320LM IP66 IK10 Microwave 3000K/4000K/5700K Φ260*108cm
SLCLC-18 18W 1980LM IP66 IK10 Microwave 3000K/4000K/5700K Φ320*108cm
SLCLC-24 24W 2640LM IP66 IK10 Microwave 3000K/4000K/5700K Φ360*108cm
Frequently Asked Questions
What are the IP and IK ratings for this light?
This light features an IP66 weatherproof rating and an IK10 vandal-proof rating, making it suitable for harsh and high-impact environments.
Does this bulkhead light support color temperature adjustment?
Yes, it is Tri-CCT selectable, allowing you to choose between Warm White (3000K), Cool White (4000K), and Daylight (5700K/6000K).
Can I get this light with a motion sensor or emergency backup?
Yes, the light can be equipped with an integrated microwave sensor and a 3-hour emergency kitting option.
What materials are used in the construction?
The body and diffuser are made from high-quality Polycarbonate (PC) or ABS, providing high impact resistance and durability.
Where can this light be installed?
It is designed for surface mounting on both walls and ceilings in various locations such as garages, warehouses, tunnels, kitchens, and outdoor humid areas.
What certifications does this product hold?
This product is certified by CE, CB, RoHS, SAA, and others, ensuring compliance with international safety and quality standards.
