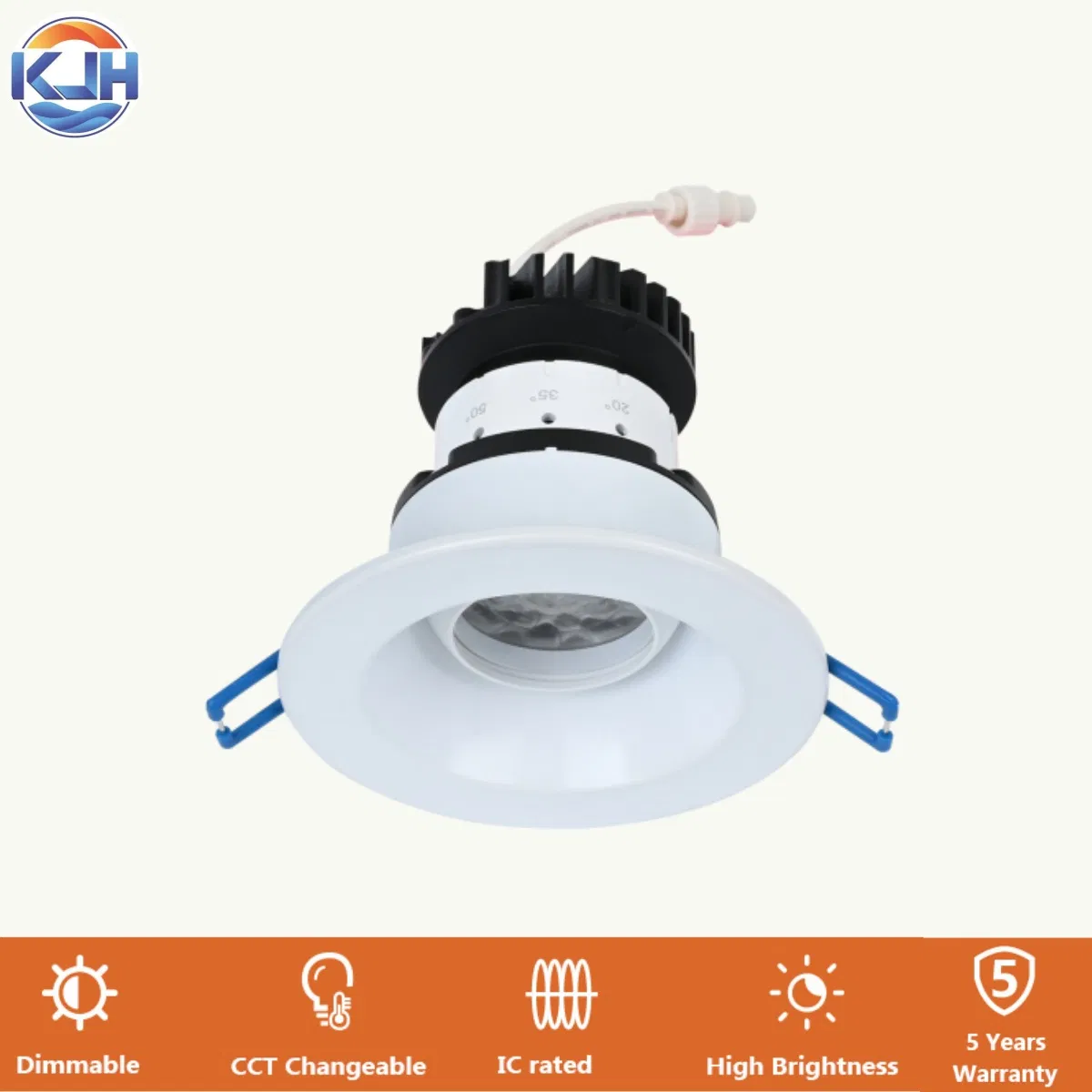

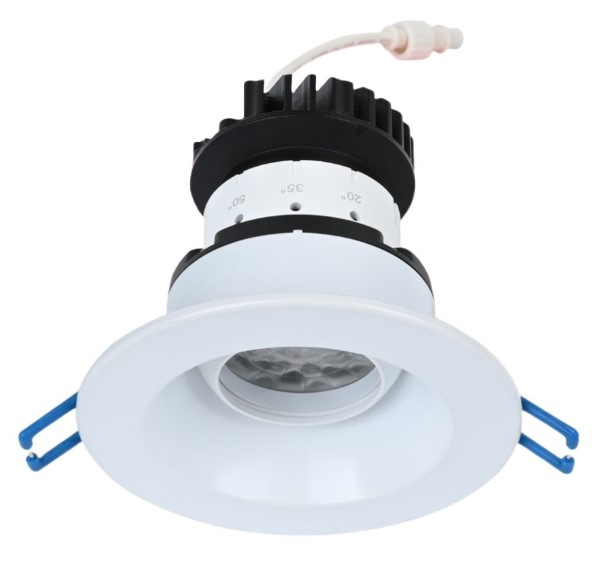

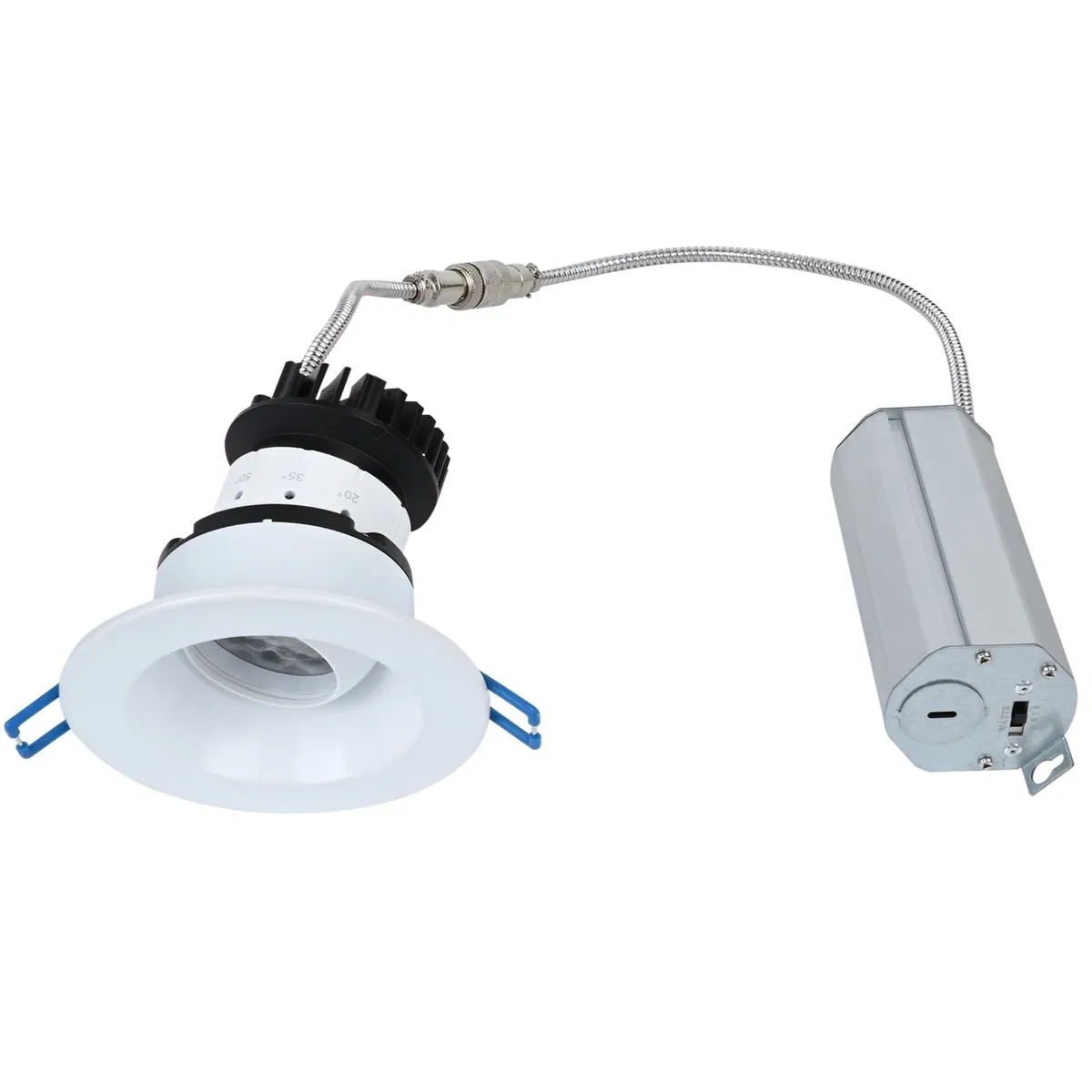

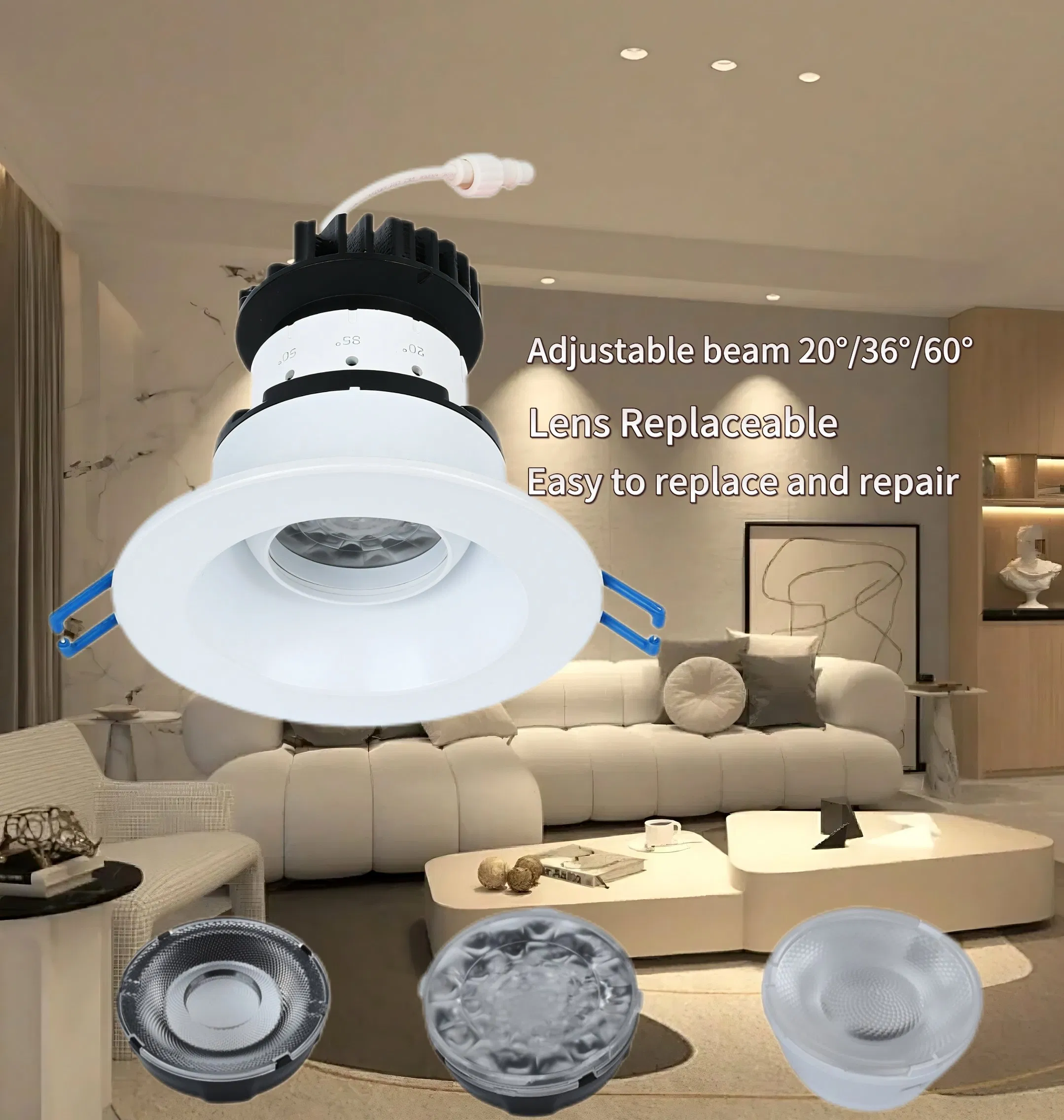

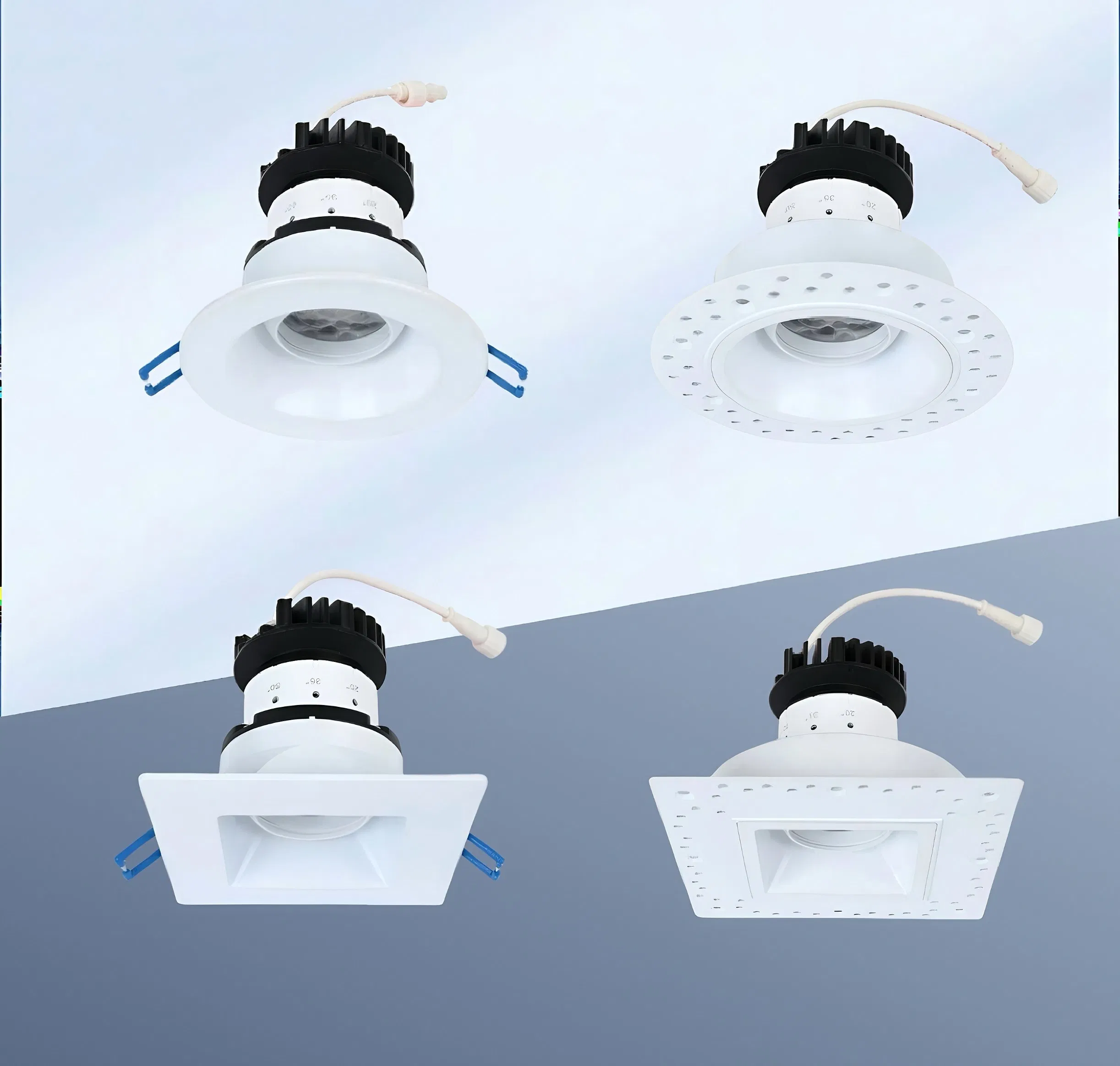

LED Comfort Wall Wash Down Light Downlight Low Glare LED Wall Wash Fittings Downlight Suitable for Commercial, Residential and Retail Application

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO. KG3R-ABA Power 5-12W Adjustable
Color Temperature 5CCT Adjustable Material Aluminum
Installation Recessed IP Rating IP54
Certification CE, EMC, Energy Star, ETL, FCC, LVD, RoHS Warranty 5 Years
Cutout 90mm Beam Angle 20°/36°/60° Adjustable
Product Description

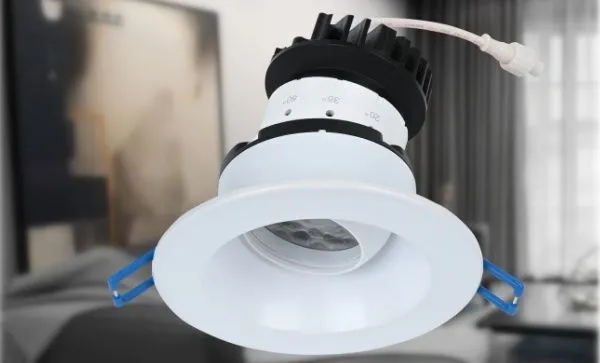

LED Downlight

Our patent-pending adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angles adjustments between 20° and 50°. Featuring functions of 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.

Key Features
  • Durable Aluminum body for superior heat dissipation
  • Beam angle adjustable effortlessly between 20°-50°
  • 360° rotation and 20° tilt for precise aiming
  • LEDiL Lens interchangeable for low glare effects
  • Wattage selectable: 5W / 7W / 9W / 12W
  • 5CCT adjustable: 2700K to 5000K
  • High-efficiency Bridgelux LED (CRI > 90+)
  • Compatible with TRIAC, 0-10V, or Smart RGBCW drivers
Detailed Photos

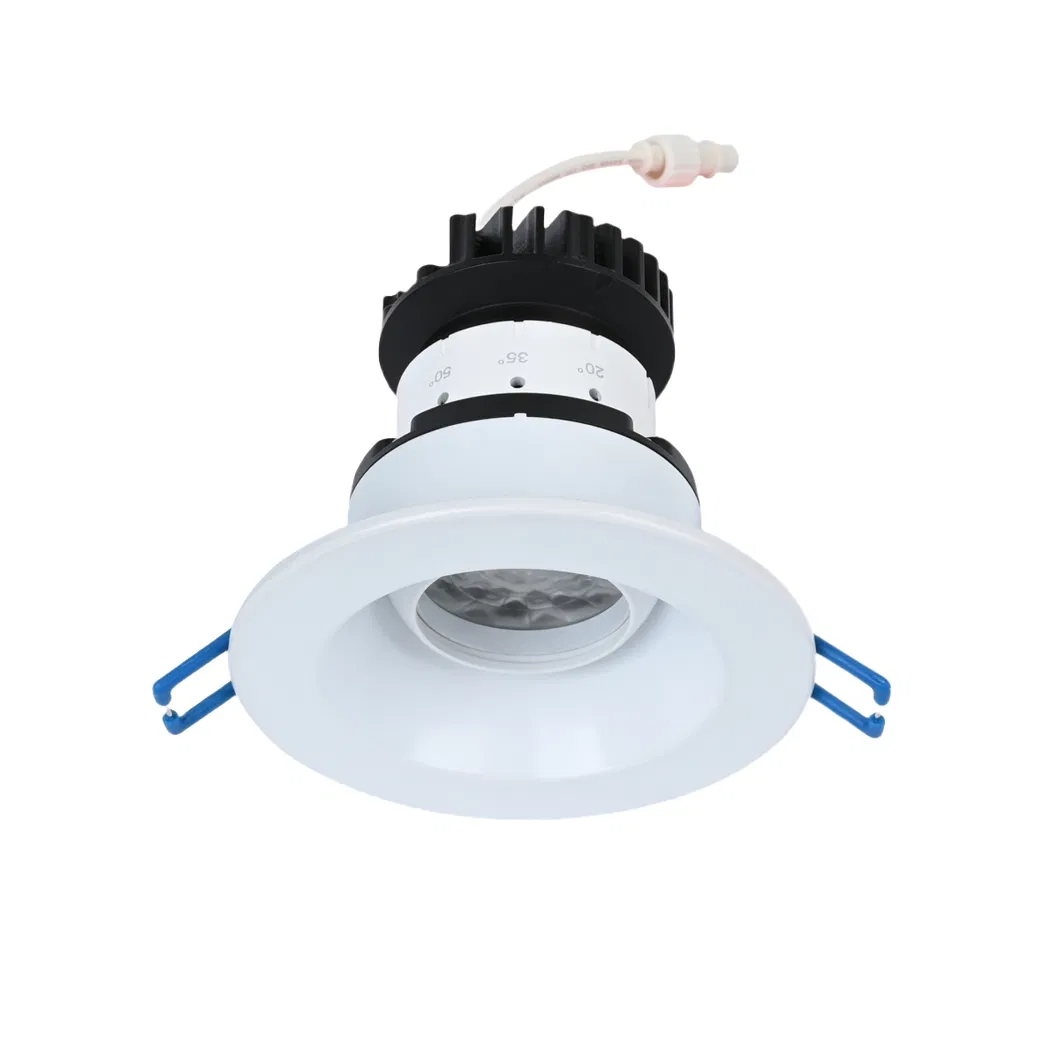

Details 1

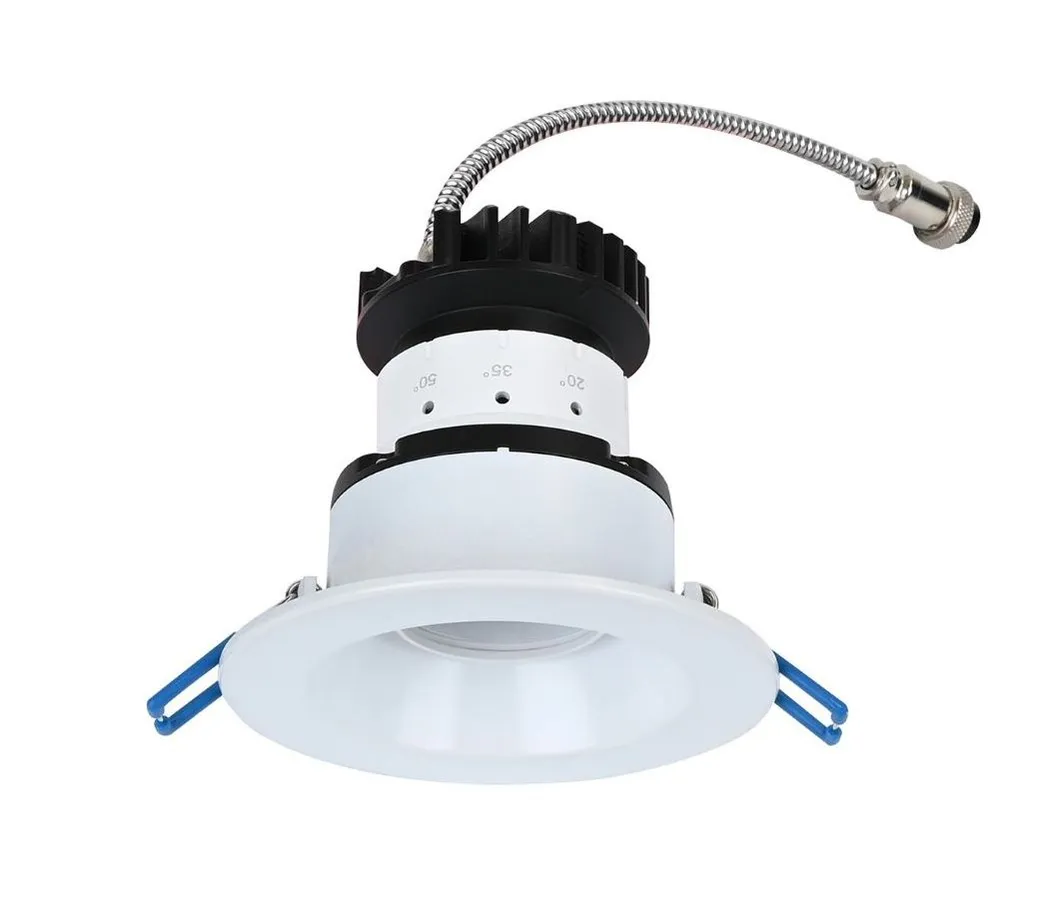

Details 2

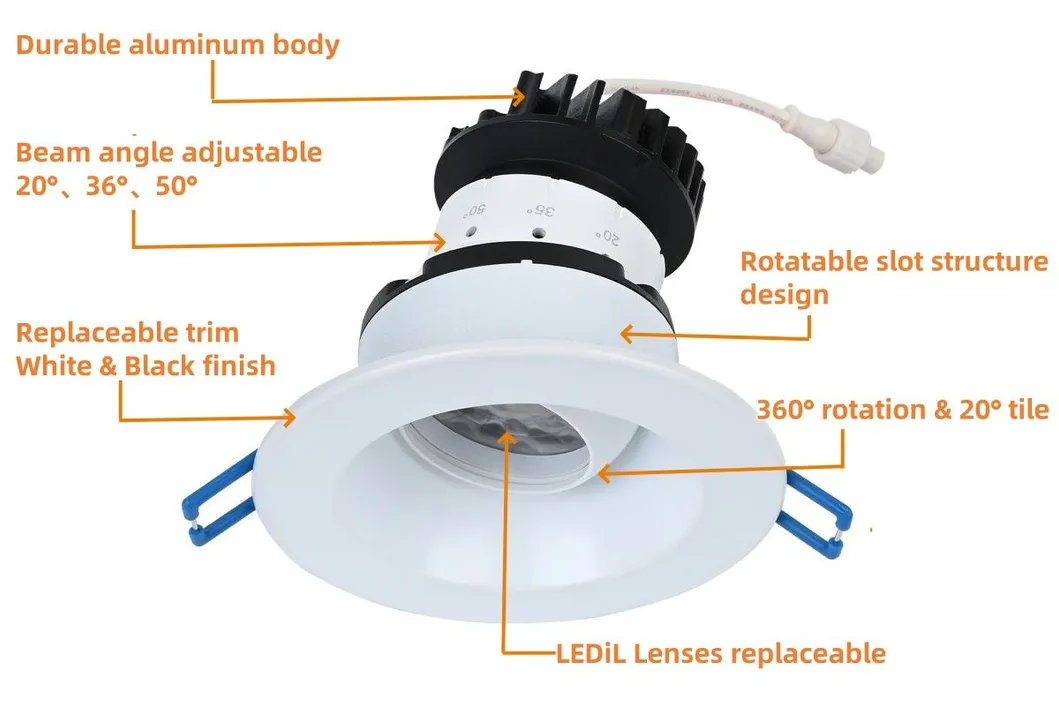

Details 3

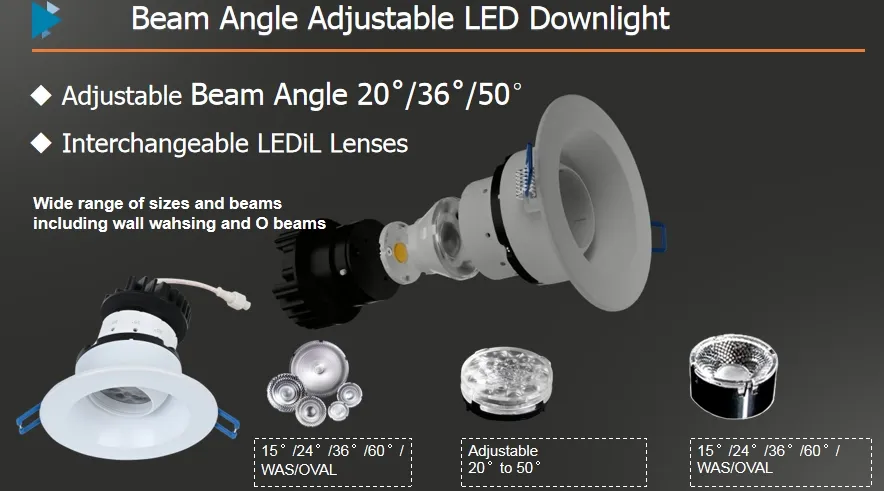

Details 4

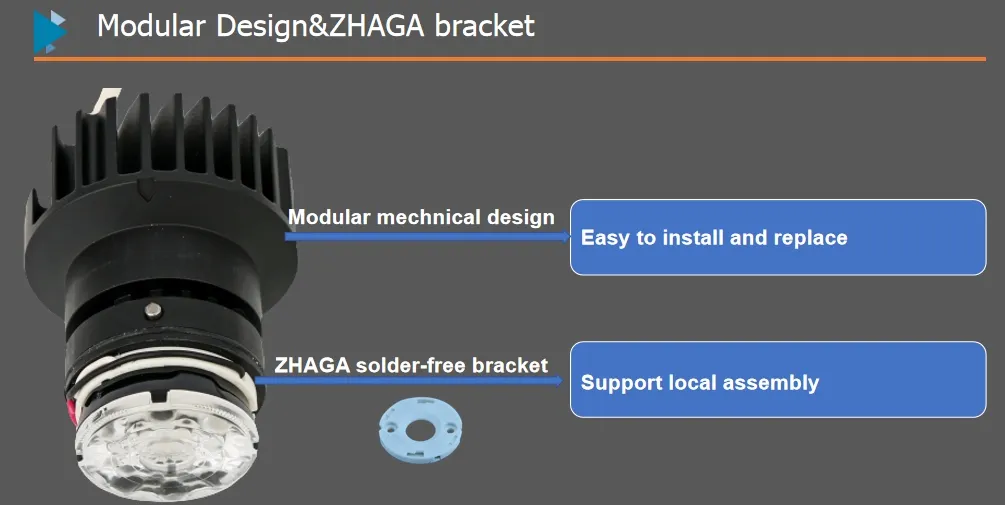

Details 5

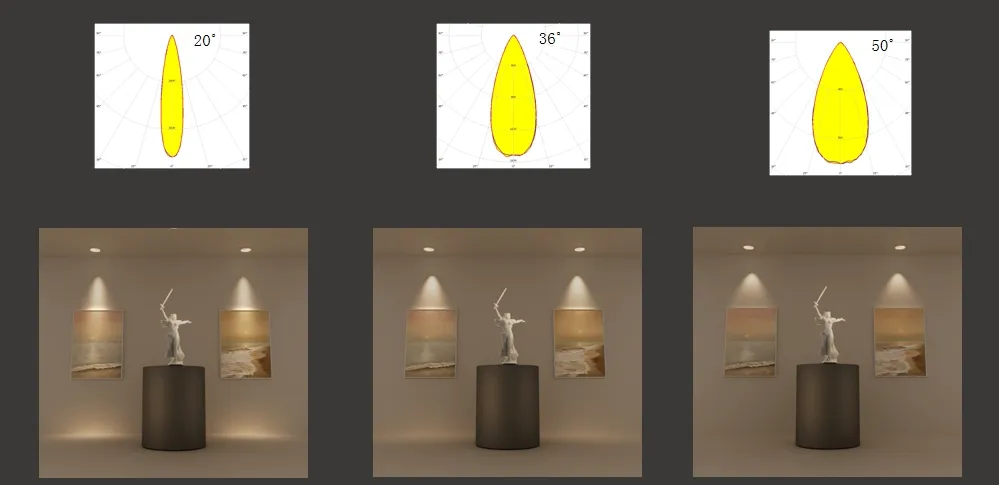

Details 6

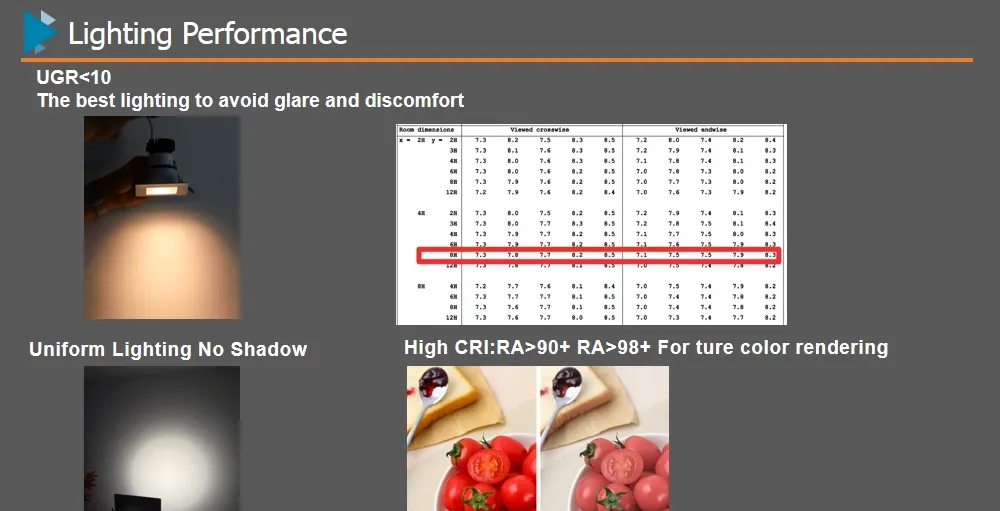

Details 7

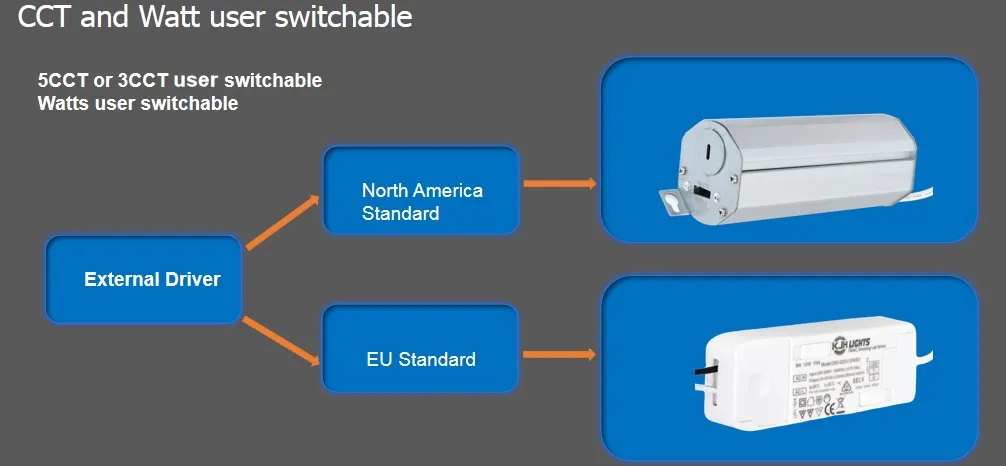

Details 8

5CCT Selectable & Adjustable Beam Angles

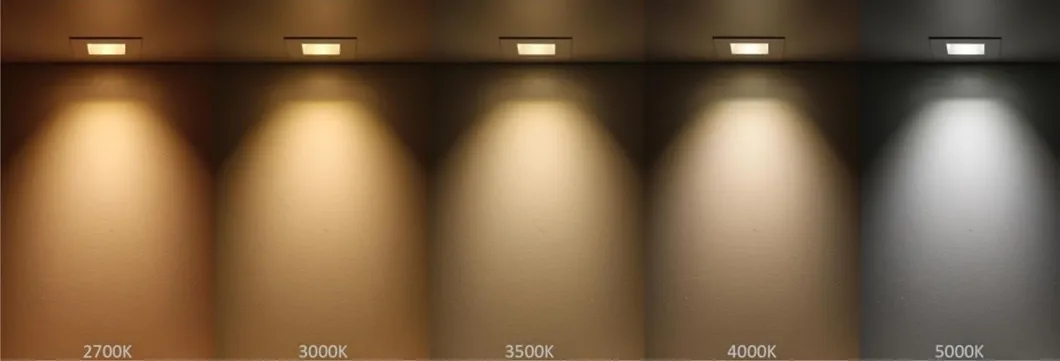

CCT Selection
Beam Angle 1

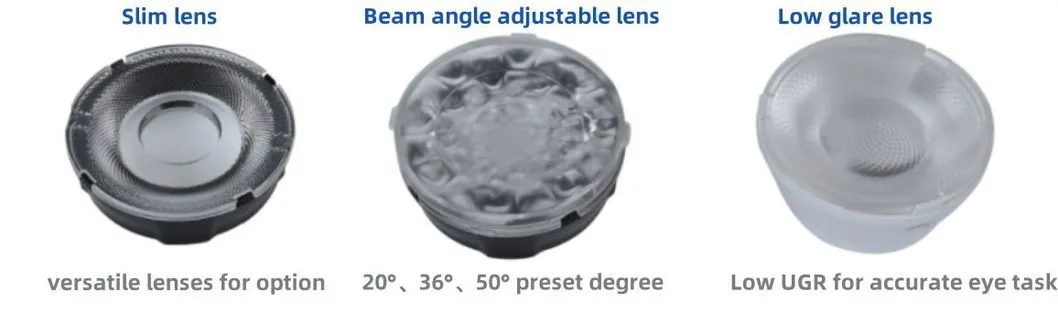

Beam Angle 2
Applications

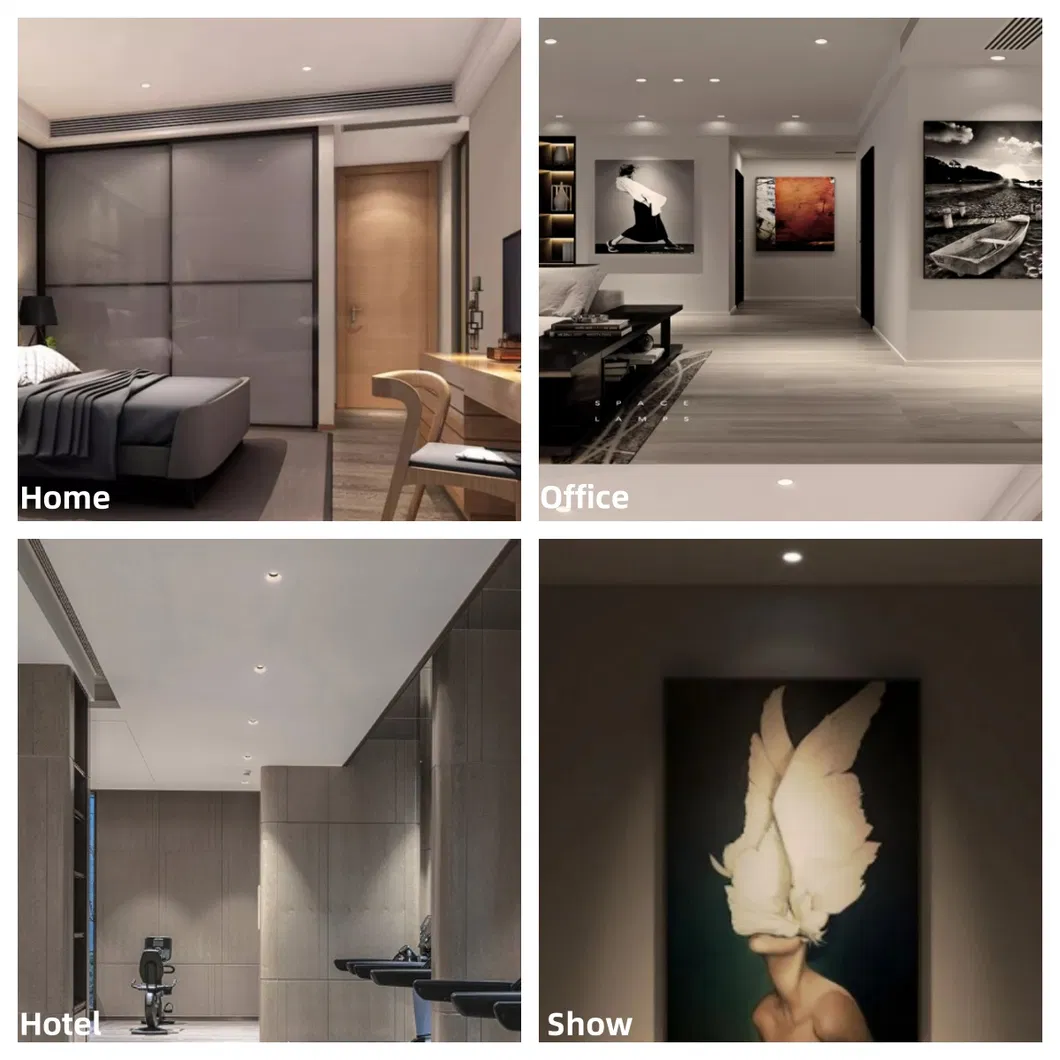

Application Scenario
Packaging & Shipping

Our cardboard packages are durable enough for long-distance transportation. We offer a wide range of logistics options: world express, sea, air, or land freight.

Package 1
Package 2
Shipping
Professional Production Profile

As a professional LED lighting manufacturer since 2014, our facility covers 4,200sqm equipped with advanced manufacturing facilities including auto soldering machines, SMT machines, die casting machines, and CNC laser machines. Our monthly production capacity reaches 500,000pcs LED lamps.

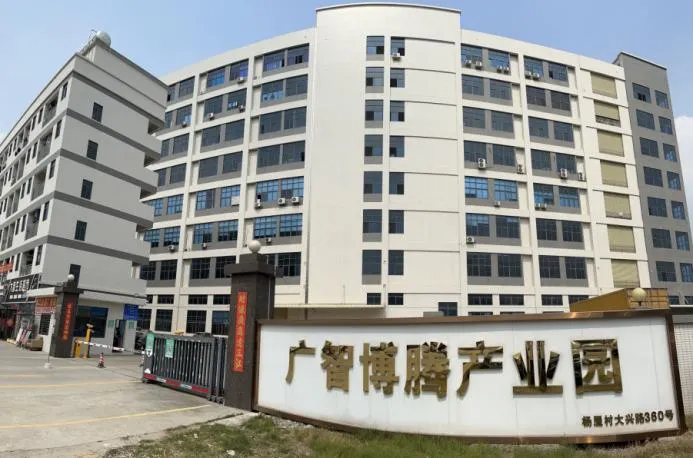

Factory 1

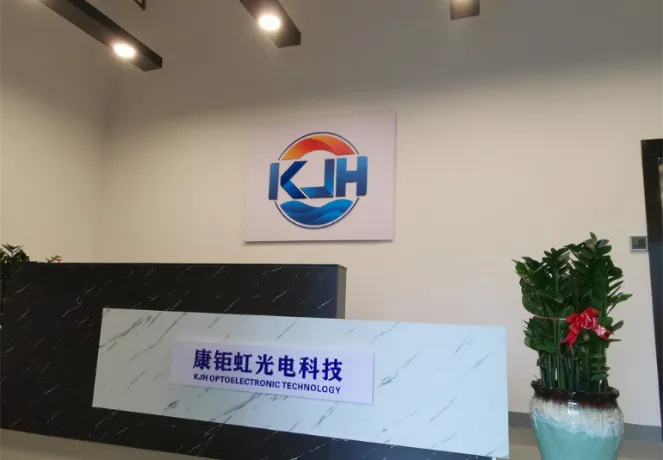

Factory 2

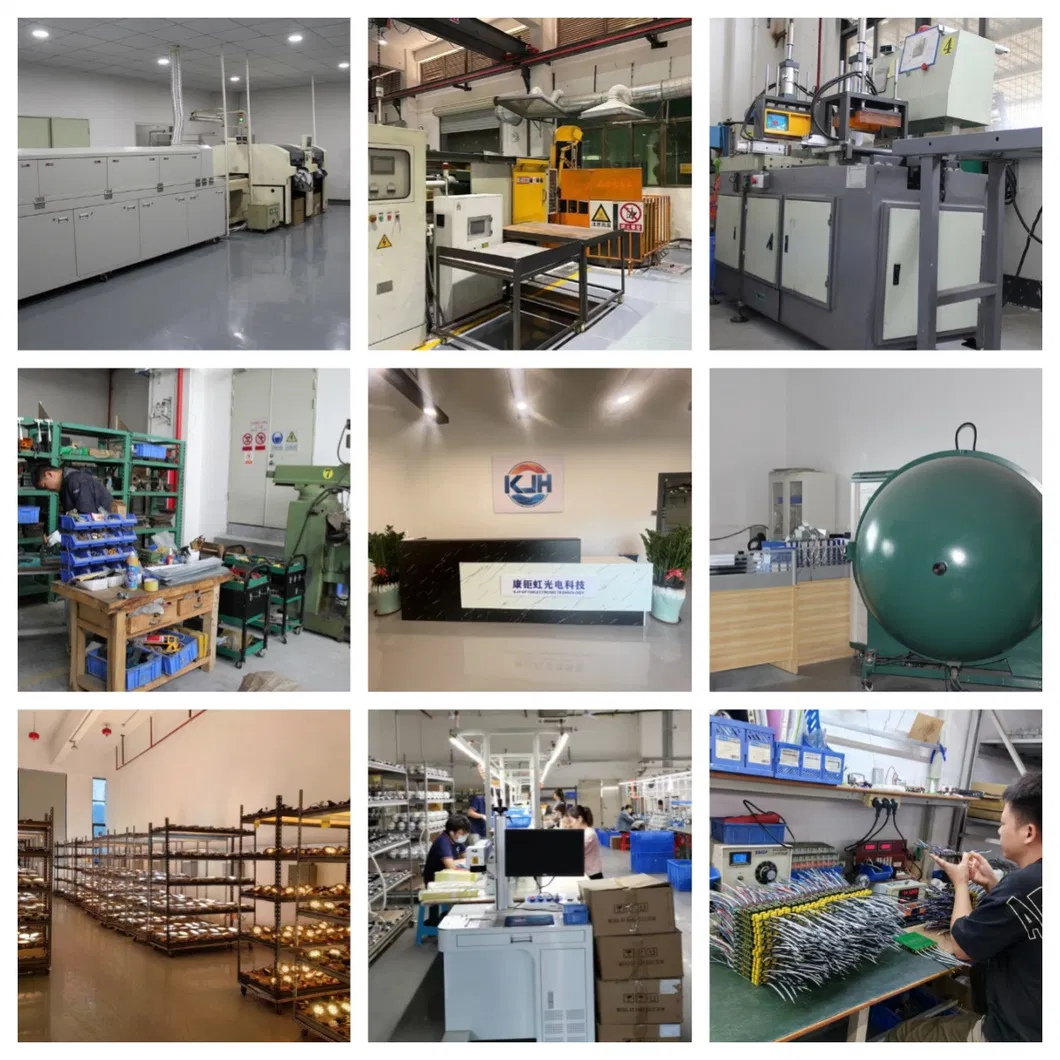

Factory 3

R&D and Quality Control: Our team of over 10 engineers specializes in circuit design, optical lens development, and light control systems. We strictly implement ISO9001 management processes, ensuring every product undergoes 48-hour aging tests before shipping.

Frequently Asked Questions
Are you a manufacturer?
Yes, we operate our own factory with complete product lines and professional manufacturing equipment.
Can you provide samples?
Yes, we welcome sample orders to test our quality before proceeding with bulk orders.
What is the standard production time?
For small quantities, production typically takes 5-7 days. Larger orders are scheduled based on the specific quantity.
Are all products tested before shipping?
Yes, every product undergoes at least 48 hours of aging and quality testing to ensure a minimal failure rate.
What packaging do you use for international shipping?
We use neutral reinforced cartons suitable for long-distance transport. Fragile items can be packed in wooden cases upon request.
How do you handle after-sales issues?
Simply provide photos or videos of the issue. Our team will analyze and provide a satisfactory solution within 24 hours.
