Color Temperature
Warm White
Lamp Body Material
Aluminum
Lamp Installation
Screw Holder
Switch Type
Touch On/Off Switch
Application
Engineering, Home Furnishing
Production Capacity
50000PCS/Month

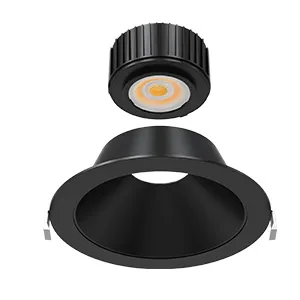

Modular lighting system - Modular Orientable LED downlight.
What's modular Orientable downlight?
The Orientable downlight are flexible design, Trim and light module can be changed quickly without tools. Modular Orientable LED downlight, the most important member of modular lighting, has come to markets.
✔
High Flexibility: Buy whole lamps or separate trim, module, and driver. Quick assemble/replace within 5 seconds.
✔
Stock Optimization: Save at least 50% on stock while meeting various client requirements in shortest time.
✔

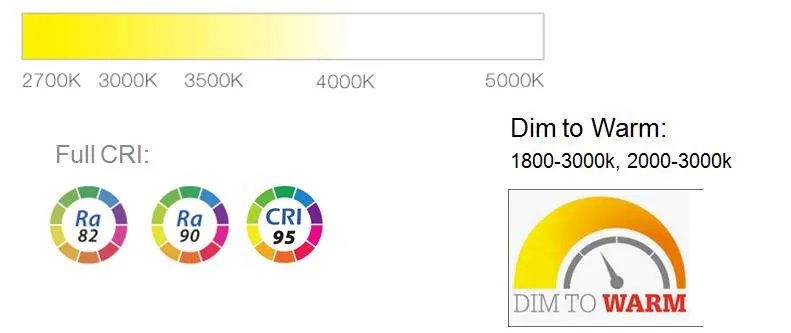

Versatile Options: Single color, tunable white, DTW, SMD, and COB versions available. Multiple CCT, CRI, and beam angles.
✔
Low UGR: Patent design ensuring very low UGR output for eye comfort.

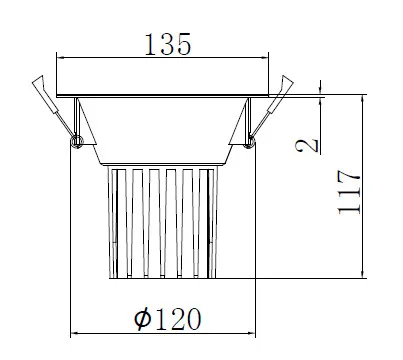

Size and Drawing:
Key Advantages Summary:
14 ways to buy: whole lamps, module + fixture, single parts, or SKD housing.
2Comfortable light output: UGR < 19.

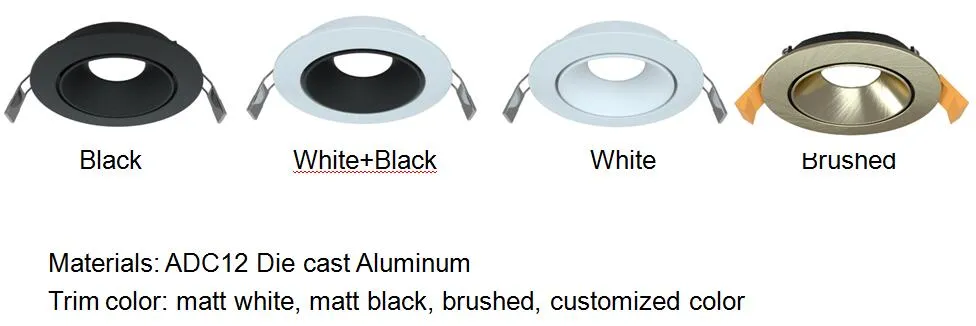

3Different colors Trim for various requirements, easy to change.
4Ideal for DIY lighting and projects (easy change of CCT, CRI, Beam angle).
5The housing can be recycled.
Modular Orientable Downlight Family
| Product No |
Size |
Cut out |
Wattage |
Light module |
Color |
Beam angle |
| DL-10W-ML-3 | D110*H80mm | 90-100mm | 10W | COB | W/DTW/TW | 15/24/38/60° |
| DL-15W-ML-3 | D135*H83mm | 90-100mm | 15W | COB | W(white color) | 15/24/38/60° |
| DL-20W-ML-3 | D200*H111mm | 90-100mm | 20W | COB/Bridgelux | W/DTW/TW | 15/24/38/60° |
| DL-25W-ML-3 | D135*H117mm | 120-130mm | 25W | COB/Bridgelux | W/DTW/TW | 15/24/38/60° |
| DL-30W-ML-6 | D200*H111mm | 165-190mm | 30W | COB/Bridgelux | W/DTW/TW | 15/24/38/60° |
| DL-40W-ML-6 | D200*H111mm | 165-190mm | 40W | COB/Bridgelux | W/DTW/TW | 15/24/38/60° |
| DL-40W-ML-8 | D240*H111mm | 200-230mm | 40W | COB/Bridgelux | W/DTW/TW | 15/24/38/60° |
How Modular Orientable Downlight Works

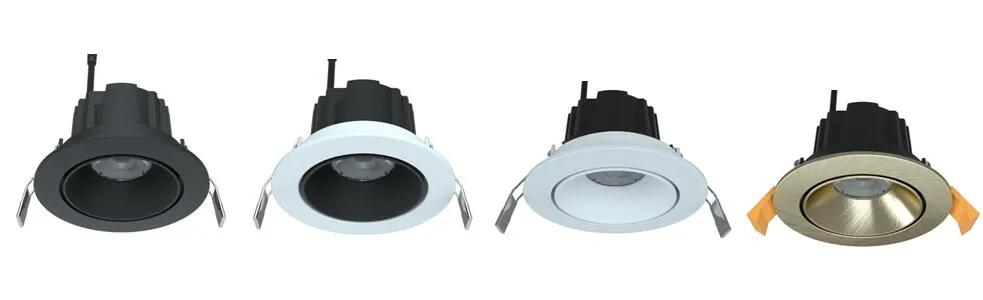

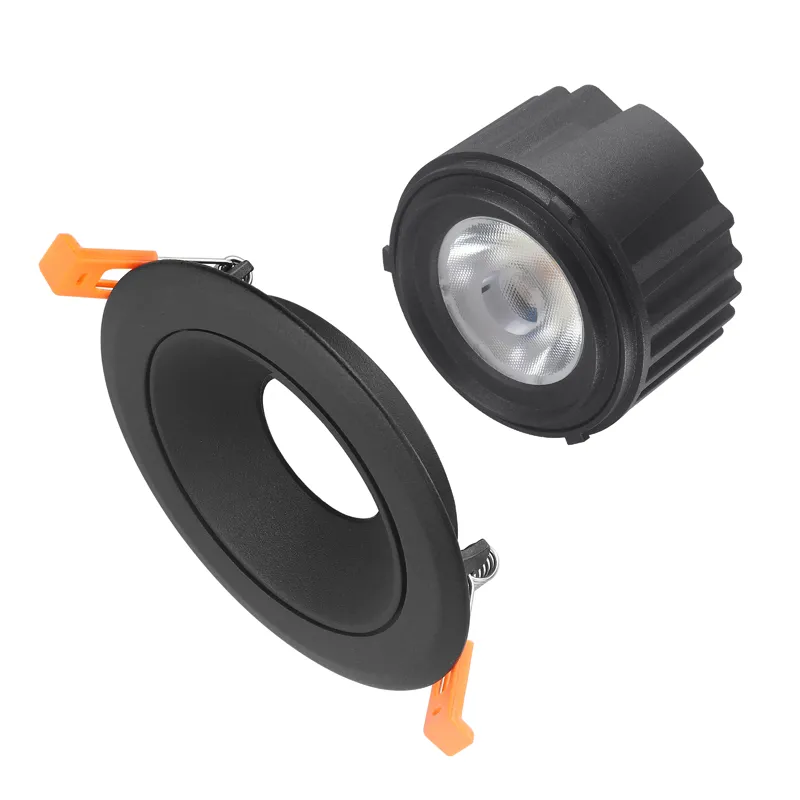

1. Purchase as a whole fixture:
2. Selection Steps:

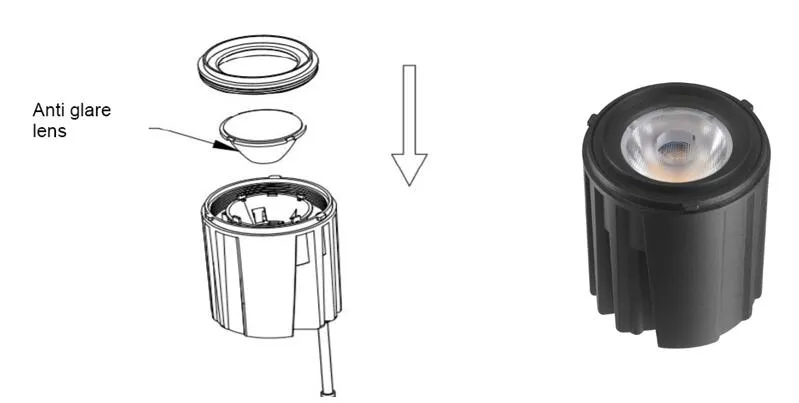

2.1 Choose Light Module (CCT, CRI, Wattage, Lens)

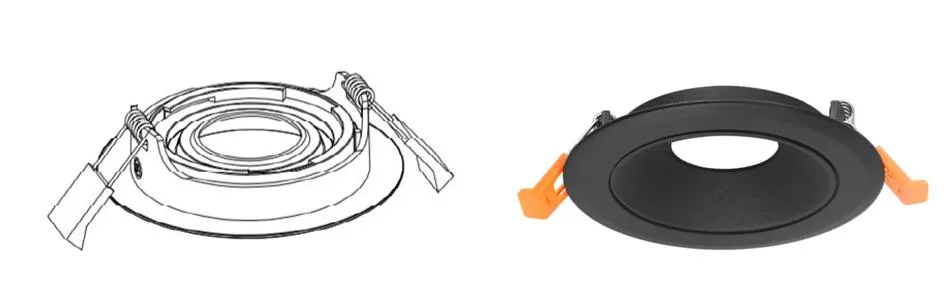

2.2 Choose the right trim color
2.3 Technical Module Specs Selection

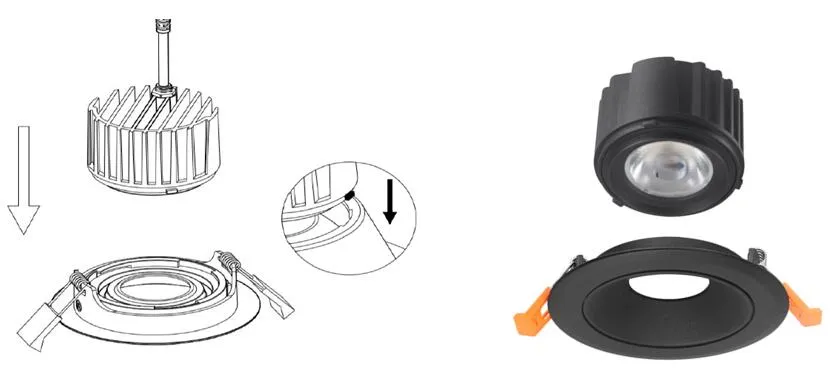

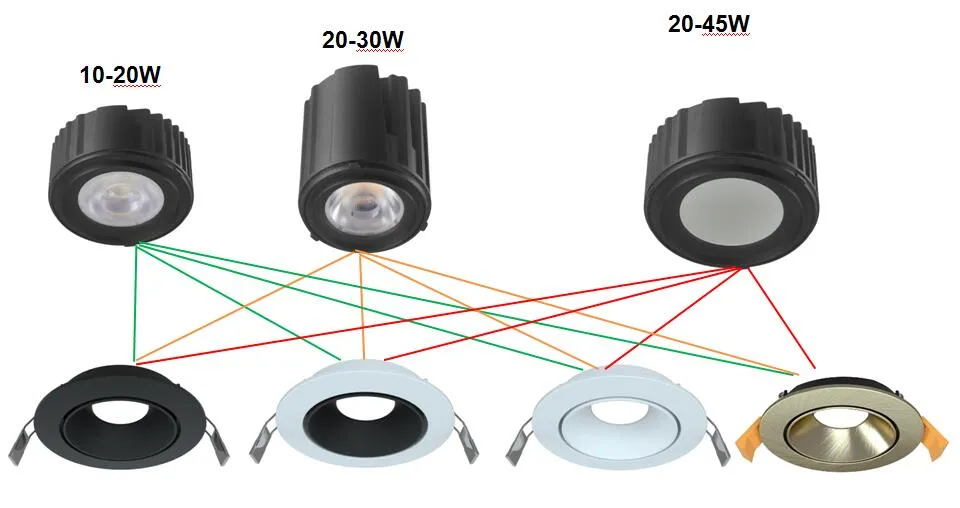

2.4 Put module to trim and turn right
We also supply LED track light, LED tube light, LED street light, recessed led spot light, surface mounted led spot light, framing light, gobo spot light, and shop lighting for museums, clothes shops, etc.
Frequently Asked Questions
What is the main benefit of the modular design?
The modular design allows you to change the trim and light module quickly without tools. This flexibility helps save at least 50% on stock and allows you to meet diverse client requirements efficiently.
Is the light output comfortable for the eyes?
Yes, the product features a patent design that ensures a dark light output with a very low UGR (Unified Glare Rating) of less than 19, making it ideal for comfortable environments.
Do I need an electrician to replace the light module?
No, one of the primary advantages is that anyone can replace the module or trim quickly (within 5 seconds) without needing a professional electrician, saving both time and money.
What are the available color temperature options?
We offer a full range of color temperatures, including single color, Tunable White (TW), and Dim-to-Warm (DTW) options to suit various lighting needs.
What is the warranty period for this modular downlight?
This product comes with a 5-year warranty, ensuring long-term reliability and performance for both home and engineering applications.
Are the housings environmentally friendly?
Yes, the aluminum housings are designed to be recyclable, aligning with sustainable and eco-friendly lighting solutions.
